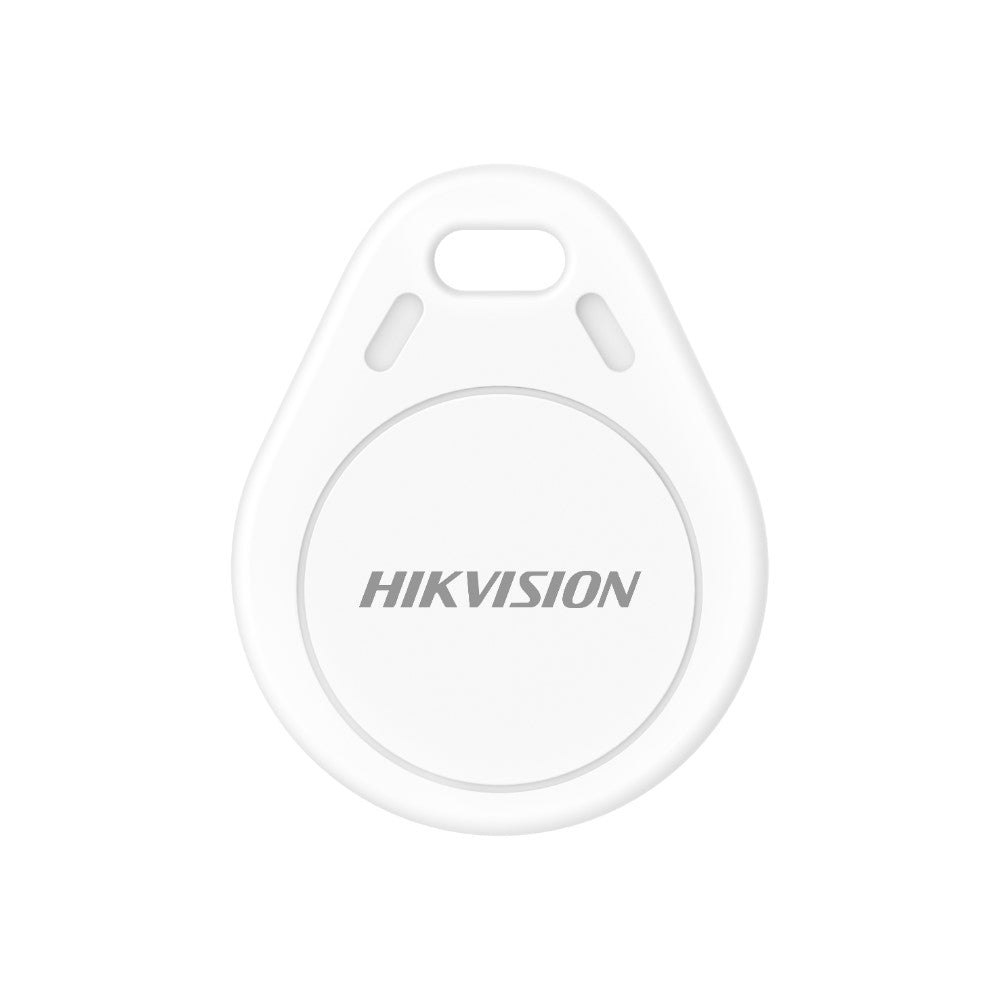

Hikvision DS-PT-M1 Ax Pro Mifare Tag
Why This Model
- Encrypted communication: The tag exchanges data at 13.56MHz using a secure protocol, reducing the risk of credential cloning or interception at the reader.
- 10-year data retention: Credentials remain stored for up to a decade, meaning the tag won't need replacing as part of routine maintenance cycles.
- Compact keychain form factor: At just 41 x 32 x 3.5mm and built from durable PVS and ABS materials, it's designed to withstand everyday carry without adding bulk.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Model: DS-PT-M1
Who This Is For
For security installers and AX Pro system owners who need a fast, keyless method of arming and disarming without entering a PIN, the Hikvision DS-PT-M1 Mifare Tag is a compact credential accessory designed specifically for the AX Pro ecosystem. A single tap against a compatible Mifare tag reader or the main hub puts the system in or out of armed state immediately - useful in households where multiple people need daily access, or in small commercial premises where staff changeovers make PIN management impractical. The DS-PT-M1 measures 41mm x 32mm x 3.5mm and fits easily on a standard keyring. It communicates at 13.56MHz with a 106Kbps data rate and stores credentials in 1024 x 8-bit EEPROM across 16 separate sections. Data retention is rated at approximately 10 years, so routine replacements are not a practical concern under normal use.
What This Tag Actually Does
Tap-to-Arm / Disarm
Presenting the tag to a compatible Mifare reader or the AX Pro hub immediately arms or disarms the system. No PIN required. This speeds up entry and exit routines for authorised users and reduces the likelihood of accidental alarm triggers.
13.56MHz RFID Communication
Operating on the standard 13.56MHz Mifare frequency at 106Kbps, the tag exchanges credential data quickly with the reader. The communication is encrypted, so raw tag data cannot be trivially intercepted and replayed by an attacker with a generic reader.
10-Year Data Retention
Credentials are stored in 1024 x 8-bit EEPROM rated for approximately 10 years of data retention. In practice this means the tag remains functional across the typical lifecycle of an AX Pro installation without needing re-enrolment due to memory degradation.
Durable Everyday Carry
The 41mm x 32mm x 3.5mm body is made from PVC and ABS. It is thin enough to sit flat on a keyring without bulk and built to handle the daily friction of a bag or pocket. No battery is required - the tag is entirely passive and powered inductively by the reader.
Segmented Memory Structure
The EEPROM is divided into 16 separate sections, allowing the AX Pro system to store and manage credential data in a structured way. This architecture supports the secure partitioned access model used across the AX Pro platform.
Who Buys This Model
- AX Pro System Owners Adding Users: When a household or small business already runs an AX Pro system and needs to credential an additional person - a new staff member, family member, or cleaner - the DS-PT-M1 is the fastest way to issue independent keyring-level access without sharing a PIN.
- Installers Commissioning AX Pro Sites: Installers specifying the full AX Pro ecosystem order these tags as standard user credentials during initial commissioning, pairing them with Mifare-capable keypads or the hub itself rather than relying solely on PIN codes.
- Retail and Small Office Sites: Premises with consistent staff entry and exit patterns benefit from tag-based arming where PIN fatigue or shoulder-surfing is a concern. Each authorised person carries their own tag, and individual tags can be revoked without changing the system PIN.
- Replacement Credential Buyers: Users who have lost a tag or are expanding from a single-tag setup to cover multiple users purchase the DS-PT-M1 as a direct replacement or addition within their existing AX Pro configuration.
Honest Assessment
The DS-PT-M1 does its specific job well. The 13.56MHz Mifare credential with encrypted communication is a meaningful step up from a basic proximity fob in terms of data security, and the 10-year EEPROM retention means this is not a consumable that needs regular management. The passive design - no battery, no maintenance - is a practical advantage for sites where tags are issued to users who will not be expected to manage their own hardware. The compact form factor sits naturally on a keyring without bulk. What this tag will not do is function outside the AX Pro ecosystem. It is not compatible with the Axiom series or with third-party alarm panels. If the installation uses a different Hikvision platform or a non-Hikvision system, this credential will not enrol. It also provides no access control logging beyond what the AX Pro hub records - it is an arming credential, not a full access control card. Available through Security Australia as a single unit, it is typically ordered in small quantities per site.
Before You Buy
Compatibility Note: The DS-PT-M1 is designed exclusively for the Hikvision AX Pro platform. It will not enrol into an Axiom series panel or any non-AX Pro Hikvision system. Before ordering multiple tags, confirm the site is running AX Pro firmware and that the keypad or hub has a Mifare reader built in or connected - not all AX Pro keypads include a tag reader by default. Check your keypad model spec before commissioning tag-based credentials.
Enrolment Process: Tags must be enrolled through the AX Pro hub or the Hik-Connect app - they do not self-register on first tap. Allow time during commissioning to add each tag to the correct user profile. Individual tags can be deleted from the system remotely, which is useful when a tag is lost, without requiring a site visit to change PIN codes.
Quick Fit Check
- Good match if: You are running an AX Pro system and want to issue keyring-level arming credentials to individual users without sharing a system PIN - the DS-PT-M1 enrols per user and can be individually revoked from the hub.
- Good match if: You need a no-maintenance credential - the tag is entirely passive with no battery and a 10-year data retention rating, making it suitable for long-term deployment without scheduled replacement cycles.
- You may need a different model if: Your site runs a Hikvision Axiom panel or any non-AX Pro platform - this tag will not enrol on those systems. Check the full range of AX Pro-compatible accessories on securityaustralia.com.au for the correct credential type for your panel.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: Your site runs an AX Pro panel and you want per-user arming credentials that can be individually revoked without changing the system PIN or visiting the site.
- You may need a different model if: Your installation uses the Hikvision Axiom series or another platform - the DS-PT-M1 will not enrol on non-AX Pro systems. Check the compatible accessories listed for your specific panel model on securityaustralia.com.au.
- Pairs well with: An AX Pro Mifare-capable keypad or tag reader - without a reader at the entry point, the tag credential cannot be presented and a PIN keypad remains the only arming method.
Common Questions
-
Will this tag work with my Hikvision Axiom alarm panel?
No. The DS-PT-M1 is designed exclusively for the Hikvision AX Pro platform and is not compatible with the Axiom series. If you are running an Axiom panel, you will need a different credential type. The AX Pro and Axiom are separate product ecosystems with different enrolment protocols and hardware. -
Does this tag need a battery?
No. The DS-PT-M1 is a fully passive RFID device. It draws power inductively from the reader field at the moment of presentation - there is no battery to replace or charge. This also means the tag has no standby drain and will not fail due to a flat battery. -
Can I revoke a lost tag without affecting other users?
Yes. Each DS-PT-M1 is enrolled as an individual user credential within the AX Pro hub. A lost tag can be deleted from the system via the Hik-Connect app or the hub interface without modifying any other enrolled tags or PIN codes. Other users continue to operate normally without re-enrolment. -
How secure is the communication between the tag and the reader?
The DS-PT-M1 uses an encrypted communication protocol operating at 13.56MHz. This means the credential data exchanged during a tag presentation is not transmitted in plain text and cannot be trivially captured and replayed by a basic RFID scanner. The 16-section segmented EEPROM structure also supports the partitioned access model used across the AX Pro platform, with data held in the tag's 1024 x 8-bit memory. -
How long will the tag credential remain valid before it degrades?
The EEPROM is rated for approximately 10 years of data retention. Under normal operating conditions - daily use, standard temperatures, no physical damage - the stored credential should remain intact across the full expected lifecycle of an AX Pro installation. This is a manufacturer-rated figure for the memory chip, not a subscription or licence period. -
Does this tag work as a door access credential as well as an alarm tag?
No, not on its own. The DS-PT-M1 is an arming and disarming credential for the AX Pro alarm system. It is not a standalone door access control card. If the site requires door access control logging, entry release, or integration with electric locks, a dedicated AX Pro access control module or a separate access control system would be required in addition to this tag. -
Do I need any special reader hardware or does it work with the AX Pro hub directly?
The DS-PT-M1 can be used with either a compatible Mifare tag reader peripheral or directly with an AX Pro hub or keypad that includes a built-in Mifare reader. Not all AX Pro keypads include a tag reader - check the specific keypad model before assuming tag-based credential presentation is available at a given panel. Security Australia stocks a range of compatible AX Pro peripherals if you need to add a reader to an existing installation.
