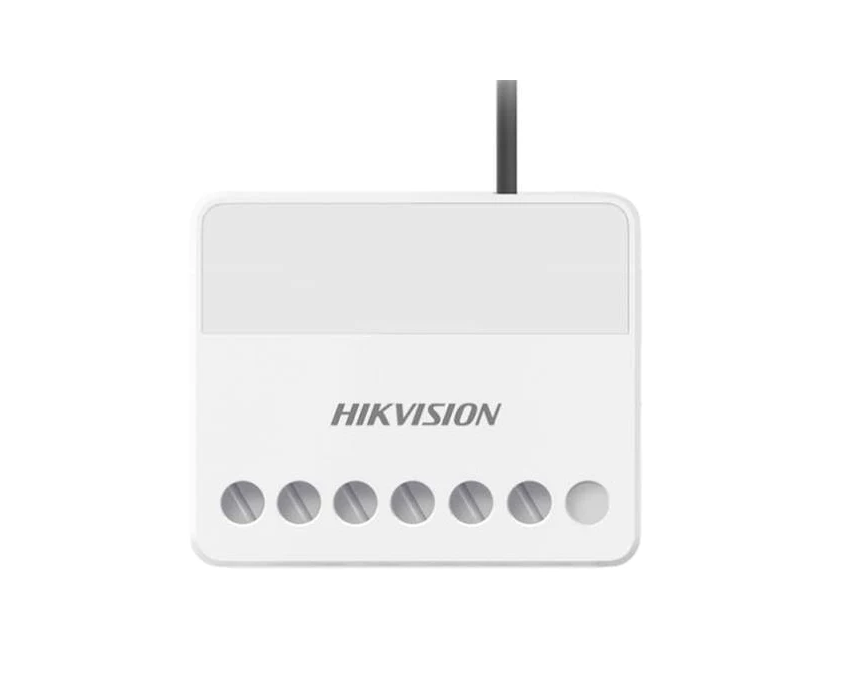

Hikvision DS-PM1-O1H-WB Wall Switch

Model: DS-PM1-O1H-WB

Who This Is For

For installers and security integrators who need to extend a Hikvision wireless alarm system into physical output control - switching lights, sirens, door releases, or other mains-powered devices automatically based on alarm events. The DS-PM1-O1H-WB is a compact wireless relay module that mounts directly onto a standard 86-box or wall surface, connects to the Hikvision alarm hub via 433MHz two-way RF, and switches a single relay output rated to AC 100-240V at up to 13A. It suits residential and light commercial installs where running control cabling back to a central panel is impractical, and where the alarm scenario - arm, fault, schedule, or manual trigger - needs to drive a physical device without an electrician rewiring the switchboard. Its compact 38x25x18mm footprint keeps installations tidy and unobtrusive.

What This Device Actually Does

Who Buys This Model

• Alarm System Installers: Adding output control to a Hikvision wireless alarm deployment without running control cable back to the panel - the 800m RF range and hub registration via learning button makes field commissioning straightforward.
• Residential Security Integrators: Automating deterrent lighting or an external siren on alarm trigger, using the confirmed alarm-event scenario trigger and the 13A relay to switch standard mains loads directly.
• Light Commercial Installers: Linking alarm system arm/disarm events to physical outputs such as indicator beacons, access control holds, or scheduled lighting in small offices and retail sites where wired relay modules are impractical to retrofit.
• DIY Advanced Users: Extending an existing Hikvision wireless alarm hub with physical output capability - the single learning button registration process and LED status indicators (register/signal, power, relay state) make self-commissioning achievable for technically capable end users.

Honest Assessment

The DS-PM1-O1H-WB does one thing well: it adds a mains-rated wireless relay output to a Hikvision wireless alarm system without pulling control cable. The 13A NO/NC relay is genuinely useful for switching real loads - not just low-voltage signalling - and the five scenario trigger modes cover the most common alarm automation requirements. AES-128 encryption and two-way RF confirmation add meaningful integrity for security-critical outputs. The 800m open-air RF range is generous for residential and small commercial sites. Available through Security Australia, it suits installs where the Hikvision wireless alarm ecosystem is already in place. It will not work outside that ecosystem - this is a proprietary 433MHz device that registers only to compatible Hikvision alarm hubs. It also provides a single relay output only, so installations requiring multiple independent switched outputs need multiple units. If you need wired relay outputs or integration with a non-Hikvision panel, a different product type is more appropriate.

Before You Buy

Quick Fit Check

• Good match if: You are expanding a Hikvision wireless alarm system and need to switch a mains-powered load - lighting, siren, or door release - based on alarm events, and a mains supply is available at the mount location.
• Good match if: The installation requires wireless output control with AES-128 encrypted RF and two-way hub communication to confirm relay state, rather than a basic one-way RF switch with no status feedback.
• You may need a different model if: Your alarm panel is not a compatible Hikvision wireless hub, or you need multiple relay outputs from a single device - a wired relay expander module connected to your panel's output terminals would be more suitable in those cases.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are working within a Hikvision wireless alarm ecosystem and need to switch a mains-rated load (up to 13A AC) from the hub without running control cable - the two-way RF link and AES-128 encryption make it a more robust choice than generic RF relay switches.
• You may need a different model if: Your panel is wired rather than wireless, or you need more than 1 relay output from a single device - a multi-channel wired relay expander module would be more appropriate and cost-effective in those cases.
• Pairs well with: A compatible Hikvision wireless alarm hub with available peripheral registration slots, wireless PIR detectors, and wireless door/window contacts in the same 433MHz ecosystem.

Common Questions

1. Will this work with any alarm panel or only Hikvision systems?

   Only compatible Hikvision wireless alarm hubs. The DS-PM1-O1H-WB uses a proprietary 433MHz protocol with AES-128 encryption and registers to the hub via the onboard learning button. It will not pair with third-party alarm panels, generic 433MHz receivers, or smart home platforms.

2. Does this module need mains power at the installation point?

   Yes. The DS-PM1-O1H-WB requires a mains AC supply (100-240V, 50/60Hz) at the mount location. It is not battery-powered and does not support PoE. A mains feed must be present - and in most Australian states, connection to mains wiring must be performed by a licensed electrician.

3. What loads can the relay actually switch?

   The confirmed relay rating is AC 100-240V at up to 13A. This is sufficient for standard lighting circuits, external sirens, and door release strikes on mains supply. It will not switch DC loads - the relay is rated for AC only. Always verify the load current draw against the 13A maximum before connecting.

4. How do I know if the relay has activated?

   A dedicated blue LED on the module face indicates relay status. The two-way RF link also allows the hub to confirm relay state rather than relying on command acknowledgement alone, so the connected alarm software can reflect current output status. The Register/Signal LED (green/red) shows hub connectivity status separately.

5. What is the effective RF range in a typical Australian home or small commercial building?

   The 800m figure is open-air. In practice, expect significant reduction through masonry walls and concrete slabs common in Australian residential and commercial construction. Single-storey brick veneer homes typically see reliable range across the full building. Multi-storey concrete structures may require testing at the intended mount point before finalising placement.

6. Can I trigger the relay on a schedule rather than only on alarm events?

   Yes. The DS-PM1-O1H-WB supports 5 independent trigger scenarios: By Alarm, By Operation (arm/disarm), By Fault, By Schedule, and By Manual command from the hub. Schedule-based triggering is configured through the connected alarm hub software - the module itself stores and executes the assigned scenario.

7. Is the relay output NO or NC, and can I choose?

   Both. The relay output is configurable as normally open (NO) or normally closed (NC), confirmed in the device management specification. This gives flexibility for fail-safe or fail-secure applications - for example, using NC so the load activates if the wireless link is lost, or NO so it activates only on a positive command. This is stocked by Security Australia and the full spec sheet is available to confirm wiring terminal labelling before installation.
