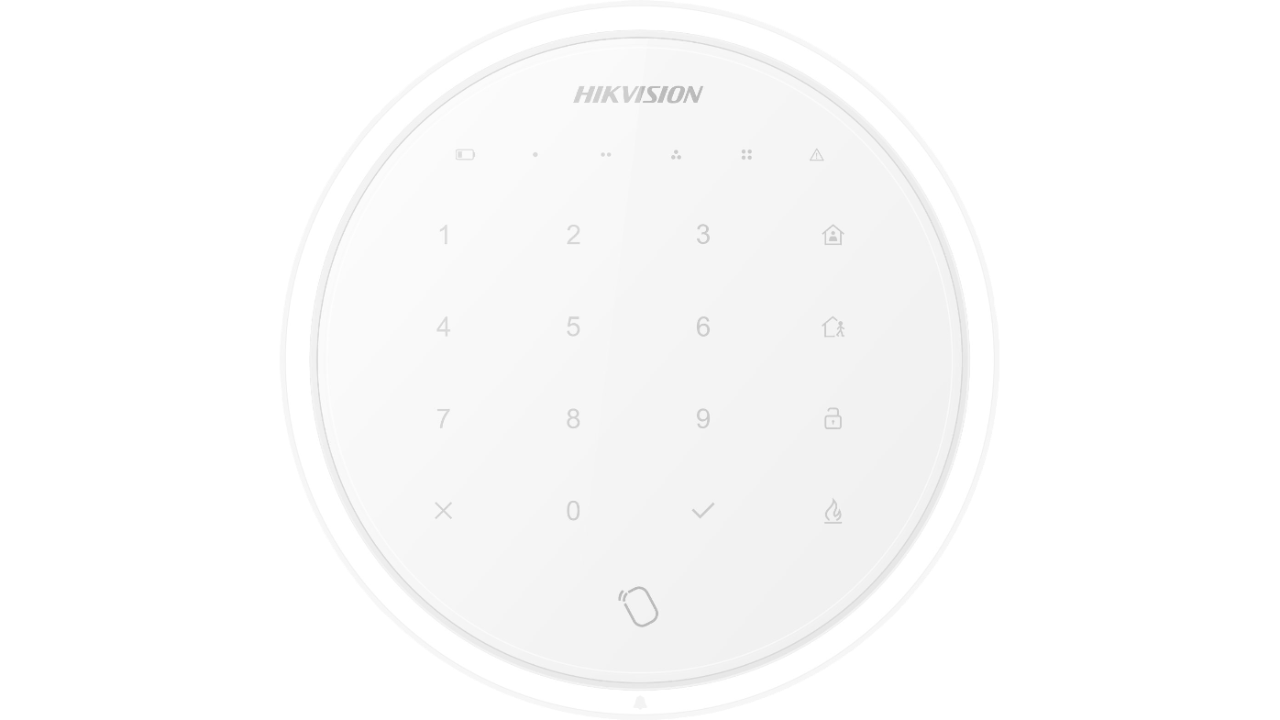

Hikvision DS-PKA-WLM-433 Wireless keypad for Axiom Alarm

Model: DS-PKA-WLM-433

Who This Is For

When avoiding cable runs through finished walls is the priority, the Hikvision DS-PKA-WLM-433 wireless keypad gives installers a clean solution for arming and disarming the Hikvision Axiom alarm system without a single data cable. Battery-powered on 4 AA cells with a rated 3-year life, it suits residential and light-commercial installs where the panel is already in place but a secondary entry point - a garage, rear door, or home office - needs local arm/disarm control. The 433MHz HIK wireless protocol handles two-way communication back to the control panel across up to 800 m in open conditions, so placement is flexible. IC card swiping adds a credential option alongside PIN entry, and the front and rear tamper protection means the keypad meets the physical security standards most residential alarm installations require.

What This Device Actually Does

Who Buys This Model

• Alarm Installers Adding a Secondary Entry Point: An existing Axiom installation with only one keypad at the front door. A rear entry or garage door needs local arm/disarm control - the DS-PKA-WLM-433 goes in without cable runs through finished walls.
• Residential Owners in Renovation or Heritage Buildings: Where chasing cables through plaster or heritage-listed walls is either costly or not permitted, the 433MHz wireless link eliminates the need for any data cabling between keypad and panel.
• Small Business Premises with Multiple Staff: IC card swiping allows staff to arm and disarm using individual fobs rather than sharing a PIN code - a common requirement for small retail, medical reception, or office environments.
• Installers Specifying Axiom Expansion Peripherals: Integrators building out Hikvision Axiom-based alarm systems who need additional keypads for multi-zone or multi-partition setups where partitioned arm/disarm state needs to be visible at each entry point.

Honest Assessment

The DS-PKA-WLM-433 does its core job well: it adds a wireless arm/disarm point to an Axiom system without any data cabling, with two-way RF communication confirming commands back to the user. The 800 m open-area RF range is generous, the 3-year battery life reduces maintenance visits, and the combination of PIN and IC card operation gives installers a couple of credential options to work with. Front and rear tamper detection is a genuine practical inclusion rather than a marketing line - it matters for alarm certification and insurance compliance. What this keypad will not do is operate with any non-Axiom Hikvision panel or third-party alarm systems - it is specific to the Hikvision Axiom ecosystem and the HIK wireless protocol. It is also not an outdoor-rated device; keep it inside the entry area rather than exposed to weather. Available through Security Australia, it suits straightforward residential and light-commercial Axiom installs.

Before You Buy

Quick Fit Check

• Good match if: You are expanding an existing Hikvision Axiom alarm system and need a second arm/disarm point without running cable through a finished wall - the 433MHz wireless link and battery power handle both challenges.
• Good match if: Your site uses IC cards or fobs for access control and you want to carry that credential through to alarm arm/disarm - standard IC card swiping is confirmed supported on this keypad.
• You may need a different model if: Your alarm control panel is not from the Hikvision Axiom range - this keypad uses a proprietary HIK wireless protocol and will not pair with other systems. A wired keypad or a model matched to your specific panel brand will be the correct path.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a secondary arm/disarm point on a Hikvision Axiom system and want to avoid cable runs - the 433MHz wireless link and battery power remove both the data cable and the power cable requirement.
• You may need a different model if: Your control panel is not in the Hikvision Axiom range - a wired keypad or a wireless keypad matched to your specific panel brand and protocol will be the correct alternative to look at on securityaustralia.com.au.
• Pairs well with: Hikvision Axiom wireless control panels, Axiom wireless PIR detectors, and Axiom wireless sirens to build out a fully wireless alarm system with no data cable infrastructure.

Common Questions

1. Will this keypad work with my existing Hikvision alarm panel?

   Only if your panel is from the Hikvision Axiom range. The DS-PKA-WLM-433 uses the proprietary HIK wireless protocol which is specific to the Axiom control panel ecosystem. Other Hikvision alarm panels that use different wired or wireless protocols will not enroll this keypad. Check your panel model against the Axiom compatibility list before purchasing.

2. Does this keypad require a power cable or just batteries?

   Batteries only - no power cable required. The unit runs on 4 AA batteries at 3 VDC with a rated 3-year battery lifespan. Combined with the wireless RF link, there is no data cable or power cable needed at the keypad location, which is the primary reason installers choose this model for secondary entry points in finished buildings.

3. Does this keypad support IC card or fob access for arming and disarming?

   Yes. Standard IC card swiping is confirmed supported on the DS-PKA-WLM-433. This means users can arm or disarm the Axiom panel by presenting a compatible IC card or fob to the keypad rather than entering a PIN code. This is particularly useful in small business environments where staff already carry IC card credentials.

4. What is the real-world wireless range I should expect through walls?

   Significantly less than 800 m. The 800 m RF range figure is an open-area specification with no obstructions. In a typical domestic or commercial building with brick, concrete, or steel-framed walls, expect practical range to drop substantially - the exact reduction depends on wall construction, interference from other 433MHz devices, and the number of walls between keypad and panel. Always test the keypad at the intended location before finalising the mounting position.

5. Is this keypad suitable for outdoor installation?

   No. The DS-PKA-WLM-433 is not rated for outdoor or weatherproof installation. It is designed for indoor use within the temperature range of -10°C to +55°C. For entry points exposed to weather, the keypad should be located inside a protected entry area such as a foyer, garage interior, or covered porch where it is shielded from direct rain and moisture.

6. What does the two-way communication actually mean in practice?

   It means the panel sends a confirmation signal back to the keypad after each arm or disarm command. With one-way RF devices, the keypad sends a signal and has no way of knowing whether the panel received and acted on it. Two-way communication on the HIK wireless protocol means the keypad can indicate to the user that the panel has confirmed the instruction - giving more confidence that the system state has actually changed. This is part of Security Australia's reason for stocking the Axiom wireless range rather than lower-specification one-way wireless peripherals.

7. What do the tamper features actually protect against?

   Front and rear tamper detection triggers an alert to the Axiom panel if someone attempts to open the keypad housing or pull it off the wall. Front tamper responds to the face being opened; rear tamper detects removal from the mounting surface. Both tamper events generate an alarm signal back to the panel over the wireless link, which is a standard requirement for alarm installations that need to meet insurance or monitoring station specifications.
