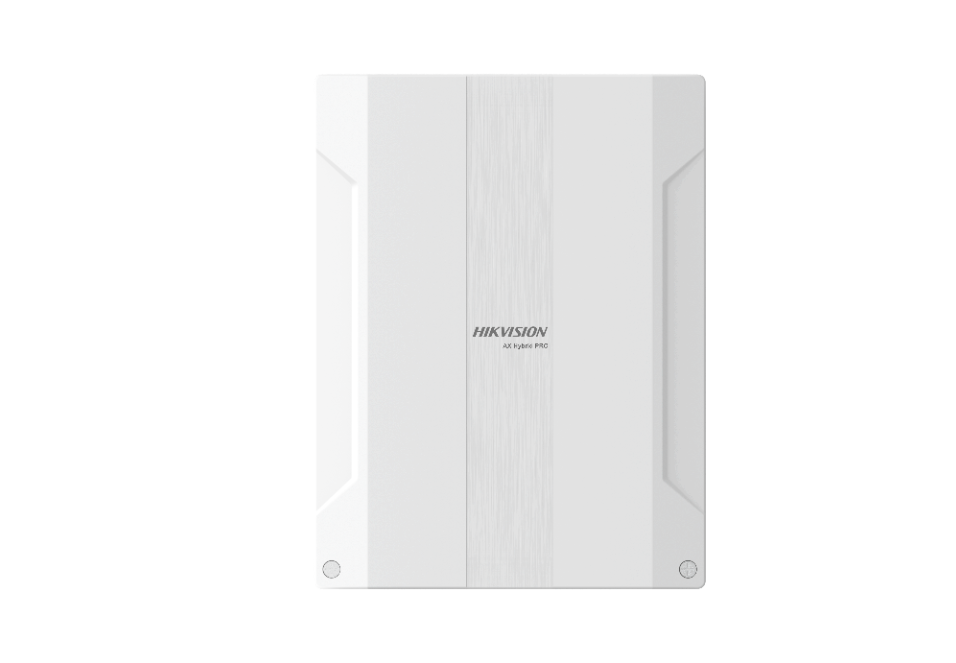

Hikvision DS-PHA64-LP/NP AX Hybrid PRO Hardwired Alarm Controller, 8-64 Zones, 45 Users, 8 Areas, 4-64 Outputs

Model: DS-PHA64-LP/NP

Who This Is For

When scaling a hardwired alarm system across a large or multi-tenancy property is the priority, installers need a controller that grows with the site rather than forcing a full rip-and-replace at the next expansion stage. The Hikvision AX Hybrid PRO DS-PHA64-LP/NP is built for exactly that scenario - starting at 8 zones and scaling to 64, with 8 independently managed areas and up to 45 users across the system. It suits commercial fit-outs, medium-to-large residential estates, schools, and light industrial facilities where different zones need separate arming schedules or access levels. The 4 to 64 output range means external devices including sirens and strobe lights can be wired in as the installation grows, without replacing the controller. Security integrators and electrical contractors specifying a long-term hardwired alarm backbone will find this panel handles the complexity of multi-area, multi-user sites without requiring a step up to enterprise-grade hardware.

What This Controller Actually Does

Who Buys This Model

• Security Integrators: Specifying a hardwired backbone for commercial fit-outs that need multi-area management from day one, with room to expand zone and output counts as the client's requirements evolve.
• Schools and Education Facilities: Sites with distinct wings, buildings, or access zones that need independent arming by area - allowing different sections to be secured at different times without a full-site arm/disarm event.
• Multi-Tenancy Commercial Buildings: Property managers and contractors where each tenancy or floor needs its own alarm partition, user list, and output configuration, all managed from a single scalable controller.
• Light Industrial Sites: Facilities with perimeter, internal, and asset-specific zones requiring up to 64 detection points wired back to a single panel, with external sirens and strobes triggered via the output expansion capacity.

Honest Assessment

The DS-PHA64-LP/NP does its core job well - it provides a hardwired alarm controller with genuine scalability across zones, outputs, and users, without forcing an upgrade to a larger platform as a site grows. The 8-area structure is practical for multi-tenancy or segmented commercial environments, and the 45-user capacity covers most medium-to-large site staffing structures. The AX Hybrid PRO platform alignment means it works within a broader Hikvision ecosystem rather than sitting as a standalone island. Available through Security Australia, it suits installers who want a Hikvision-native alarm panel they can quote confidently for staged rollouts. Where this controller is not the right fit: very small residential installations needing only a handful of zones would be better served by a smaller, lower-cost panel. Similarly, sites requiring wireless zone expansion should verify hybrid zone compatibility before specifying this model, as the confirmed spec data here covers hardwired zones only.

Before You Buy

Quick Fit Check

• Good match if: You are wiring a commercial or education site with multiple independently operated security areas - the 8-area structure and 45-user capacity handle segmented access and arming schedules without needing a higher-tier enterprise panel.
• Good match if: Your client needs a system they can expand in stages - starting with fewer zones and outputs today and growing toward 64 zones and 64 outputs as the fit-out or tenancy progresses, using a single controller throughout.
• You may need a different model if: The site is primarily wireless detection - a controller from the AX PRO wireless range or a hybrid panel with confirmed wireless zone capacity would be more suitable for installations where running hardwired detection back to a central panel is not practical.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a hardwired alarm controller that scales from a small initial zone count to 64 zones without a panel replacement, and where multi-area independent management across up to 8 partitions is a site requirement.
• You may need a different model if: The site requires predominantly wireless detection - a dedicated wireless or hybrid alarm panel with confirmed wireless zone support would be the more appropriate product type for installations where cabled detection to a central controller is not feasible.
• Pairs well with: Hardwired PIR and door/window detectors, external siren and strobe units, and a compatible Hikvision alarm keypad or touchscreen for area-level user interaction.

Common Questions

1. Does this controller support expansion beyond the base zone count, or does it ship ready for 64 zones?

   Expansion modules are required to reach the maximum capacity. The DS-PHA64-LP/NP is listed with a zone range of 8 to 64, which is standard for panels in this class - the base unit handles the lower zone count and physical expansion modules add additional zone capacity incrementally. Confirm compatible expansion module part numbers with your supplier before finalising a full 64-zone bill of materials.

2. Will this panel work for a site where different areas need to be armed and disarmed independently?

   Yes. The controller supports 8 independent areas, each of which can be armed and disarmed separately. This is the core feature that makes it practical for multi-tenancy buildings, school campuses, or any site where different sections operate on different schedules - arming one area does not affect the status of the others.

3. How many users can be programmed into the DS-PHA64-LP/NP?

   Up to 45 users. Each user can be assigned individual permissions and access levels, meaning a site manager, security guard, and standard staff member can each have different levels of control over the system. For sites with higher user counts than 45, a different controller with greater user capacity would be required.

4. Can this controller trigger external sirens and strobes, and how many output connections are available?

   Yes. The output capacity ranges from 4 to 64 channels, supporting connection of external sirens, strobe lights, and auxiliary alarm devices. As with the zone capacity, reaching 64 outputs will require expansion modules beyond the base configuration. The output count should be planned against the zone count during system design to ensure both scale appropriately.

5. Is the DS-PHA64-LP/NP compatible with other Hikvision security products?

   Yes, within the AX Hybrid PRO platform. The controller is designed to integrate with other Hikvision AX Hybrid PRO compatible devices, enabling alarm events and system management to operate within the same Hikvision ecosystem. Compatibility with specific Hikvision cameras, access control, or monitoring software outside the AX Hybrid PRO platform should be verified with your supplier prior to specifying.

6. Does this panel support real-time notifications when an alarm event occurs?

   Yes. The DS-PHA64-LP/NP includes real-time alert delivery, sending notifications to users when security events are triggered. The panel also maintains event logs and system reports, which allows installers and site managers to review historical activity and audit system performance over time. The range of notification methods and monitoring station protocols supported by this model should be confirmed with Security Australia prior to purchase.

Downloads & Resources

No downloads available for this product.
