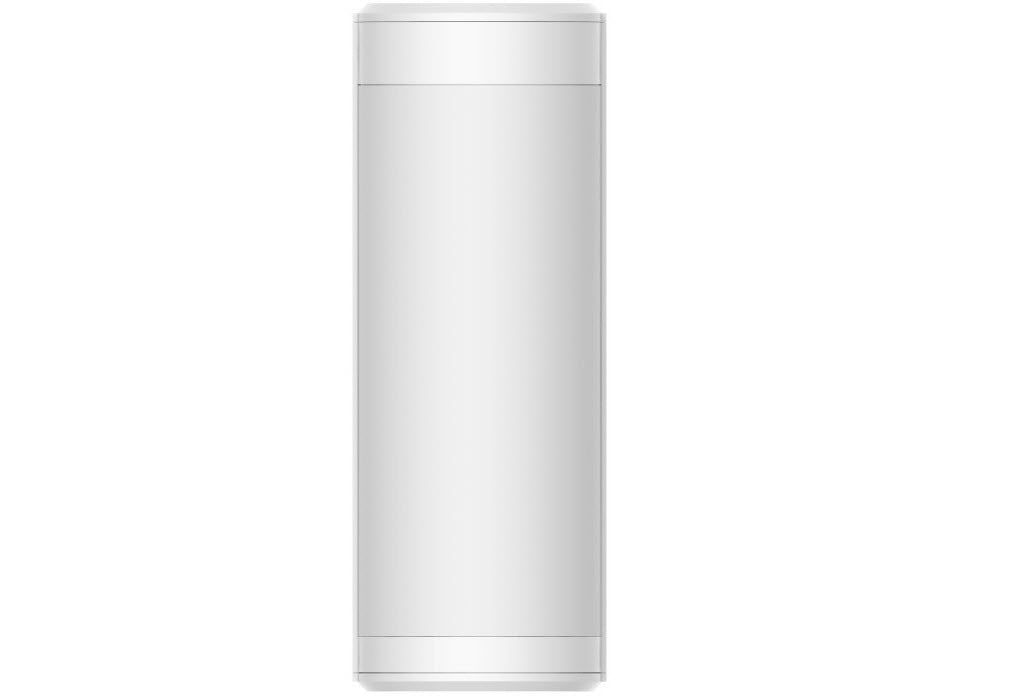

Hikvision DS-PDTT15AM-LM-WB Ax Pro Wireless Outdoor Tri-Tech Detector

Model: DS-PDTT15AM-LM-WB

Who This Is For

For security installers and property owners who need dependable outdoor motion detection without the false alarm headaches that come with standard PIR-only detectors, the DS-PDTT15AM-LM-WB is a wireless tri-tech detector built for the Hikvision Ax Pro alarm platform. It suits perimeter protection on residential properties, small commercial sites, and any outdoor zone where passing vehicles, blowing foliage, or animals regularly trigger cheaper detectors. With a 15-metre detection range, 90-degree field adjustable to 180 degrees, and combined passive infrared plus microwave sensing, it is aimed at installers specifying reliable outdoor zones that need to hold up across Australian weather conditions. The wireless design and 5-year battery life reduce cabling cost and ongoing service calls, making this a practical choice for both new builds and retrofit alarm upgrades on the Ax Pro system.

What This Detector Actually Does

Who Buys This Model

• Alarm Installers on Ax Pro Systems: Specifying additional wireless outdoor zones on Hikvision Ax Pro panels where running detection cabling to perimeter points is impractical or cost-prohibitive.
• Residential Property Owners with Large Dogs: Households where existing PIR detectors trigger on dogs over 20-25kg find the 40kg pet immunity threshold genuinely resolves false alarm problems without a system change.
• Small Commercial Site Managers: Warehouses, nurseries, and trade yards needing outdoor zone coverage on existing Ax Pro systems where intruder approaches are long and the environment produces frequent thermal or movement noise that defeats single-tech detectors.
• Retrofit Alarm Upgraders: Property owners adding outdoor detection to an established building where drilling and cabling would be disruptive - the wireless 5-year battery design avoids any structural work.

Honest Assessment

The DS-PDTT15AM-LM-WB does the specific job of outdoor wireless detection well. The tri-tech approach - requiring both PIR and 24GHz microwave to confirm movement before triggering - is a genuine step up from dual-tech detectors in environments where false alarms have been persistent. The IP65 housing, 40kg pet immunity, anti-masking, and 5-year battery life are all confirmed specs that add up to a practical, low-maintenance outdoor zone option for Ax Pro installations. Remote management through Hik-Connect means configuration and alert handling does not require a site visit for every sensitivity adjustment.

What it will not do: this detector is exclusively compatible with the Hikvision Ax Pro wireless alarm platform - it cannot be paired with other alarm panels, standalone NVR systems, or third-party hubs. If you are not already on an Ax Pro system, you will need to evaluate the full platform first. It also does not provide any visual verification - for sites where video confirmation of an alarm is required, a separate camera integration through the Ax Pro ecosystem is needed. The range of Ax Pro-compatible devices is available through Security Australia for system planning.

Before You Buy

Quick Fit Check

• Good match if: You are expanding an existing Hikvision Ax Pro wireless alarm system with outdoor zones and need a detector that will hold up to weather, pets over 20kg, and environments where single-tech PIR detectors have produced regular false alarms.
• Good match if: The installation location makes cabling impractical - the 5-year CR123A battery life and fully wireless operation allow mounting on fence posts, outbuilding walls, or eaves without any mains or data cable runs.
• You may need a different model if: Your alarm panel is not a Hikvision Ax Pro - this detector will not pair with any other system. If you need a wired outdoor detector or a detector compatible with a different alarm platform, a different product type is required.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are running a Hikvision Ax Pro wireless alarm system and need an outdoor detector that combines PIR and microwave confirmation to cut false alarms in exposed or high-traffic perimeter zones, particularly where pets up to 40kg are present.
• You may need a different model if: Your alarm panel is not Hikvision Ax Pro - this detector is platform-specific and will not work with other wired or wireless alarm systems. A wired outdoor dual-tech detector compatible with your existing panel type is the appropriate alternative.
• Pairs well with: Hikvision Ax Pro wireless indoor detectors and Ax Pro-compatible outdoor siren strobes for a complete perimeter response system managed through a single Hik-Connect account.

Common Questions

1. Does this detector work with any Hikvision alarm panel, or only Ax Pro?

   Only the Hikvision Ax Pro wireless platform. The DS-PDTT15AM-LM-WB uses the Ax Pro proprietary wireless protocol and will not pair with Hikvision wired panels, third-party panels, or other Hikvision product ranges. Before purchasing, confirm your panel model is part of the Ax Pro series and that you have available wireless zone capacity.

2. Will this detector trigger on my large dog?

   No, not under normal conditions, provided the animal is under 40kg. The pet immunity function is confirmed at 40kg, which covers most large breed dogs. The tri-tech logic - requiring both PIR and microwave to trigger simultaneously - provides an additional layer that makes it harder for animal movement patterns to satisfy both sensors at once compared to standard single-tech detectors.

3. How does the tri-tech detection actually reduce false alarms compared to a standard PIR?

   Both the passive infrared sensor and the 24GHz microwave sensor must activate at the same time for an alarm to be raised. A PIR-only detector triggers on any heat differential in its field - a passing headlight, sunlight on a foil bag, or warm air from a vent can all cause a false alarm. The microwave element independently detects physical movement. When both conditions are required simultaneously, random thermal or light events that lack a corresponding physical movement signature are filtered out before the alarm is triggered.

4. Does this detector work in direct sunlight or near bright outdoor lighting?

   Yes. The white light filter is rated to 10,000 Lux, which exceeds typical direct sunlight levels in most outdoor mounting positions. This means the detector can be placed on sun-facing walls or eaves near floodlights without the PIR element being overwhelmed by ambient light changes, which is a common failure point for lower-spec outdoor detectors.

5. How long do the batteries actually last, and what type are needed?

   Up to 5 years under normal operating conditions using 5 x CR123A batteries. CR123A cells are a standard lithium format widely available in Australia. Battery life will vary based on detection frequency, wireless signal distance from the Ax Pro hub, and ambient temperature - in hotter climates or high-traffic zones, actual life may be shorter than the 5-year figure. Security Australia stocks Ax Pro compatible accessories if battery replacement is needed.

6. What does the anti-masking feature actually do?

   It detects when something is placed in front of or over the sensor face and raises a tamper alert to the Ax Pro panel. This is separate from a standard tamper switch - it specifically identifies obstruction of the detection window rather than physical interference with the housing. In outdoor installations where a detector is reachable before an intruder enters the main detection zone, this means attempted sensor defeat is reported as an event in its own right.

7. Will this camera detect someone moving slowly, like someone creeping along a wall?

   Yes, down to 0.3m/s. The detectable speed range is confirmed at 0.3 to 2m/s, which covers slow, deliberate movement that some motion detectors miss. The 92-zone detection pattern across the 15-metre range means that even a person moving carefully through the field at low speed will intersect multiple zones and sustain both PIR and microwave readings long enough to trigger the alarm.
