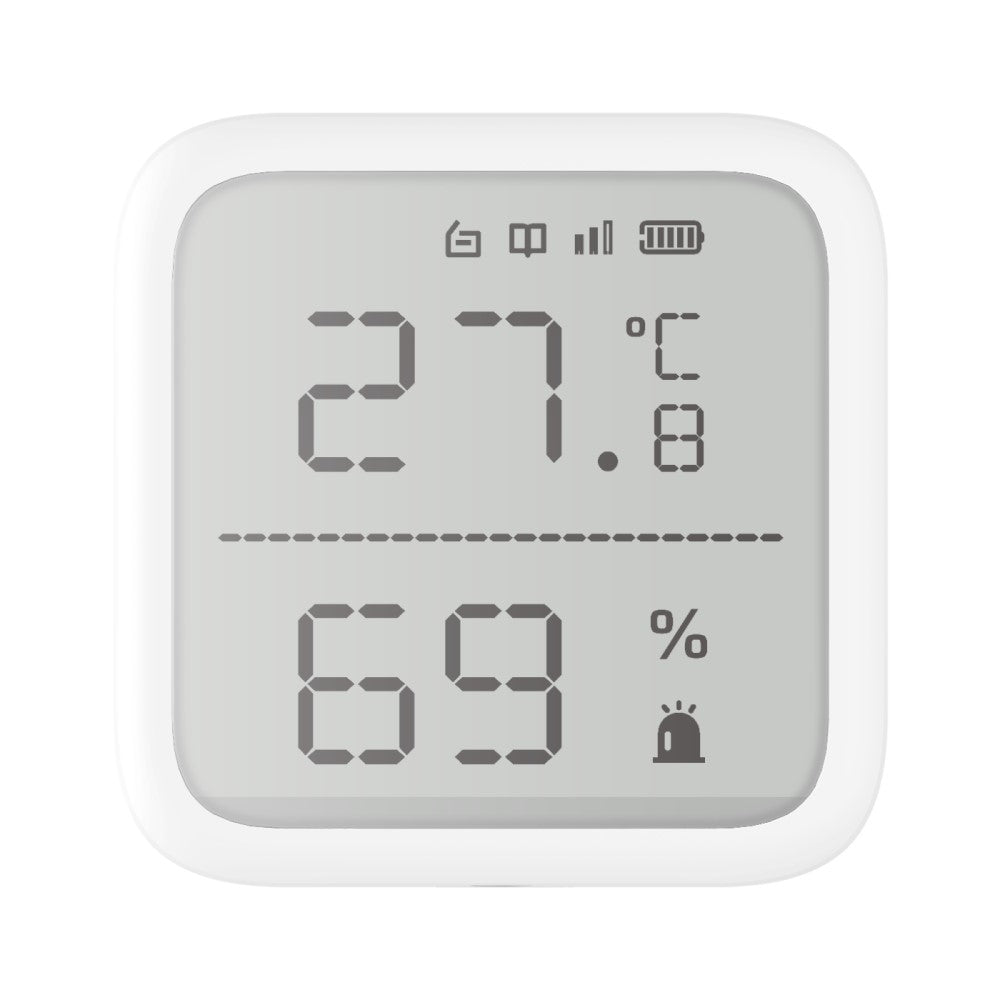

Hikvision DS-PDTPH-E-WB Ax Pro Wireless Temperature and Humidity Sensor

Model: DS-PDTPH-E-WB

Who This Is For

Property managers specifying environmental monitoring alongside their Hikvision AX Pro alarm systems will find the DS-PDTPH-E-WB a practical addition to any site where temperature and humidity need tracking. Server rooms, wine cellars, cold storage areas, pharmaceutical stockrooms, and grow facilities all share a common problem - conditions can shift outside acceptable ranges without anyone noticing until damage is done. This wireless sensor addresses that directly, measuring temperature from -20°C to 60°C with ±0.5°C accuracy and humidity from 0% to 100% RH at ±3% RH accuracy. Because it communicates wirelessly at 868MHz and runs on a single CR123A battery for up to 2 years, there is no cabling required and minimal ongoing maintenance. It integrates into an existing AX Pro panel and pushes alerts through the Hik-Connect app when readings move outside user-defined thresholds. IP67-rated housing means it can also be deployed in outdoor or high-moisture environments.

What This Sensor Actually Does

Who Buys This Model

• IT and facilities managers: Adding environmental monitoring to server rooms or comms closets already protected by a Hikvision AX Pro panel, without deploying a separate monitoring system.
• Cold chain and food storage operators: Monitoring cool rooms, freezer antechambers, or refrigerated storage areas where humidity and temperature compliance are required and early alerts prevent spoilage or regulatory breaches.
• Pharmaceutical and medical storage managers: Sites storing temperature-sensitive medications or samples that need documented evidence of conditions remaining within defined ranges, backed by threshold alerting through Hik-Connect.
• Security installers expanding AX Pro deployments: Adding environmental sensing to alarm systems for clients in retail, hospitality, or commercial property without introducing a separate monitoring product to manage or support.
• Greenhouse and horticulture operators: Monitoring growing environments where the -20°C to 60°C temperature range and 0-100% RH humidity range cover the full spectrum of conditions encountered in climate-controlled growing facilities.

Honest Assessment

The DS-PDTPH-E-WB does two things well. First, the measurement accuracy - ±0.5°C for temperature and ±3% RH for humidity - is adequate for most commercial monitoring applications without requiring calibrated lab-grade equipment. Second, the AX Pro integration is genuinely useful: if your site already runs an AX Pro panel, environmental events appear in the same workflow as intrusion alerts, which simplifies both the installer's job and the end-user's daily monitoring. IP67 rating and a 2-year battery life make it a low-maintenance choice for locations where wiring is not straightforward. What this sensor will not do is operate as a standalone monitoring device - it requires a compatible Hikvision AX Pro hub to function. It is also not a data-logging or compliance-reporting tool by itself; for regulated environments needing documented audit trails, additional software or export functionality through the AX Pro platform should be confirmed before specifying. Available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are expanding an existing Hikvision AX Pro installation and need environmental monitoring managed through the same panel and Hik-Connect app as your intrusion detection zones.
• Good match if: The installation location makes cabling impractical and a 2-year battery-powered wireless sensor with IP67 protection resolves both the access and weatherproofing constraints at once.
• You may need a different model if: Your site does not use Hikvision AX Pro - this sensor requires an AX Pro hub and will not integrate with third-party alarm panels or operate as a standalone unit. A standalone Wi-Fi or wired environmental sensor with its own monitoring platform would be more suitable in that case.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site already runs a Hikvision AX Pro panel and you want environmental monitoring managed through the same platform as your intrusion zones, without adding a separate app or monitoring system.
• You may need a different model if: Your site does not use AX Pro - this sensor requires AX Pro hub connectivity and will not pair with third-party panels or function as a standalone unit. A dedicated standalone environmental monitor with its own connectivity would be more appropriate.
• Pairs well with: Hikvision AX Pro wireless alarm panel and additional AX Pro wireless detectors to build a complete integrated security and environmental monitoring system.

Common Questions

1. Does this sensor work without a Hikvision AX Pro panel?

   No. The DS-PDTPH-E-WB communicates wirelessly at 868MHz and is designed exclusively for the Hikvision AX Pro ecosystem. It requires an AX Pro hub to receive data, trigger alerts, and relay information to the Hik-Connect app. It cannot connect directly to Wi-Fi, a router, or third-party alarm panels.

2. Will this sensor work in a cold room or freezer environment?

   Yes, within the rated range. The DS-PDTPH-E-WB measures temperature down to -20°C, which covers standard refrigerated storage and many cool room applications. For deep freeze environments operating below -20°C, the sensor's measurement range would be exceeded and readings would not be reliable. Confirm your storage temperature sits within the -20°C to 60°C operating window before deploying.

3. How accurate are the temperature and humidity readings?

   Temperature accuracy is ±0.5°C and humidity accuracy is ±3% RH. These tolerances are suitable for most commercial monitoring, cold chain, and environmental compliance applications. If your application requires tighter tolerances - such as laboratory-grade climate recording - a calibrated measurement instrument rather than an alarm sensor accessory would be more appropriate.

4. How long does the battery last and what type does it use?

   The DS-PDTPH-E-WB runs on a single CR123A battery with a rated life of up to 2 years under standard usage. Actual battery life depends on reporting frequency and environmental conditions. The AX Pro panel monitors battery status and will generate a low-battery alert through the system before the battery reaches critical depletion, giving time to arrange a replacement.

5. Can I set custom alert thresholds for temperature and humidity?

   Yes. Alert thresholds for both temperature and humidity are user-configurable through the Hik-Connect app and the AX Pro panel interface. When either reading crosses a defined upper or lower limit, a push notification is sent through Hik-Connect. This allows you to set thresholds specific to your storage requirements rather than relying on fixed default values.

6. Is the DS-PDTPH-E-WB suitable for outdoor installation?

   Yes, based on its IP67 rating. IP67 provides dust-tight protection and resistance to temporary water immersion, making it suitable for outdoor enclosures, covered outdoor areas, and high-humidity environments such as cold rooms and plant rooms. It should not be installed in locations with sustained water submersion beyond what IP67 covers, and the wireless range to the AX Pro hub must remain adequate from the chosen outdoor position.

7. How many of these sensors can I add to one AX Pro system?

   The number of sensors depends on the capacity of your specific AX Pro hub model. AX Pro panels vary in the number of wireless zones they support. Check the zone capacity of your panel before ordering multiple sensors - each DS-PDTPH-E-WB occupies one wireless zone. If you are unsure of your panel's capacity, the team at Security Australia can help confirm compatibility before you purchase.
