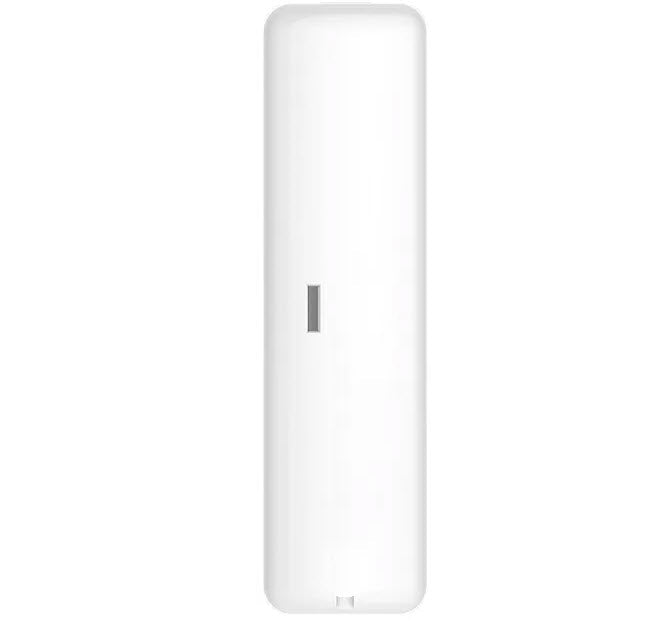

Hikvision DS-PDSK-P AX Hybrid Series Wired Shock Detector

Model: DS-PDSK-P

Who This Is For

When hardwired perimeter detection is the priority, the Hikvision DS-PDSK-P AX Hybrid Series Wired Shock Detector is a practical fit for installers building out structured alarm systems in residential, commercial, or light industrial environments. This detector is designed to sense vibrations and impacts directly at entry points - glass panels, roller doors, timber frames, and reinforced access points - triggering alerts the moment a breach is attempted rather than after it succeeds. It connects into Hikvision AX Hybrid systems via wired loop, giving system integrators the stable, interference-free performance that wireless sensors cannot always guarantee in dense signal environments. The adjustable sensitivity setting lets installers calibrate the unit to the surface material and risk level, reducing nuisance triggers on busy shopfronts or high-vibration environments while maintaining genuine detection accuracy. IP54 rating means it holds up in covered outdoor positions such as roller door frames, carport entries, and semi-exposed window reveals.

What This Detector Actually Does

Who Buys This Model

• Security Installers: Professionals building structured wired alarm systems who need reliable hardwired zone coverage on doors, windows, and access frames without battery management or RF interference considerations.
• Commercial Property Managers: Retail premises, warehouse facilities, and office complexes where forced-entry attempts at roller doors, glass shopfronts, and side entries are a real exposure requiring dedicated shock detection coverage.
• AX Hybrid System Integrators: Installers expanding existing Hikvision AX Hybrid alarm panel deployments who need wired zone sensors that integrate natively without additional protocol converters or adapters.
• Light Industrial Site Operators: Sites with high-value equipment and multiple entry points - workshops, storage facilities, and loading dock environments - where IP54 resistance and sensitivity adjustment across varied surfaces are practical requirements.

Honest Assessment

The DS-PDSK-P does its core job well: it detects physical impact and vibration at the point of contact, connects into Hikvision AX Hybrid systems via a stable hardwired loop, and holds an IP54 rating that makes it usable in semi-exposed positions most indoor-only detectors cannot handle. The adjustable sensitivity is genuinely useful across different surface types - a consistent sensitivity setting for both a glass panel and a steel roller door simply does not work in practice, and this unit accounts for that. It is available through Security Australia as part of the AX Hybrid accessories range. Where it has limits: this detector only works within Hikvision AX Hybrid system architecture - it is not a standalone unit and cannot connect to third-party alarm panels or generic wired zones without a compatible controller. If the existing alarm infrastructure is non-Hikvision, a different sensor with open-protocol dry-contact output would be the more suitable option.

Before You Buy

Quick Fit Check

• Good match if: You are expanding or commissioning a Hikvision AX Hybrid alarm system and need wired shock detection on doors, windows, or access frames where hardwired reliability is required over wireless sensors.
• Good match if: The installation includes semi-exposed mounting positions - covered external entries, carport doors, or undercover roller door frames - where IP54 dust and water resistance is needed and operating temperatures range between -10 degrees C and +50 degrees C.
• You may need a different model if: Your alarm panel is not a Hikvision AX Hybrid controller - an open-protocol wired shock sensor with dry-contact output would be a more suitable option for non-Hikvision alarm systems.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are installing into a Hikvision AX Hybrid system and need reliable, interference-free shock detection at entry points with semi-exposed mounting positions - the wired connection and IP54 rating give it a practical advantage over wireless shock sensors in these environments.
• You may need a different model if: Your alarm panel is not a Hikvision AX Hybrid controller - a shock sensor with an open dry-contact output would integrate with a wider range of alarm panel brands and is a better fit for mixed-manufacturer system architectures.
• Pairs well with: Hikvision AX Hybrid PIR detectors, door and window contact sensors, and compatible AX Hybrid alarm panels to build a complete layered perimeter detection system.

Common Questions

1. Will the DS-PDSK-P work with any alarm panel, or only Hikvision systems?

   Only Hikvision AX Hybrid systems. The DS-PDSK-P is a dedicated wired zone device engineered for the AX Hybrid architecture. It is not a dry-contact sensor with universal compatibility - it requires a Hikvision AX Hybrid controller to operate. If your panel is from a different manufacturer, an open-protocol wired shock sensor is the appropriate alternative.

2. Does this detector work for outdoor mounting?

   Yes, in semi-exposed positions. The IP54 rating provides protection against dust ingress and light water exposure, making it suitable for covered external mounting locations such as undercover roller door frames, carport entries, and window reveals with overhang protection. It is not rated for direct, unsheltered rain exposure.

3. How does the adjustable sensitivity setting work in practice?

   It controls the threshold of vibration or impact force required to trigger an alert. A lower sensitivity setting requires a heavier impact before the zone activates, which reduces nuisance triggers in high-vibration environments such as loading docks or busy thoroughfares. A higher sensitivity setting makes the detector more responsive, which suits quieter locations such as internal office doors or residential windows. Sensitivity should be set during commissioning under representative ambient conditions for the specific location.

4. Does the DS-PDSK-P require separate power, or does it draw from the alarm panel?

   It draws DC 12V power via the wired connection to the AX Hybrid panel. No separate power supply or adapter is required. Installers should verify the cable run length and loop resistance remain within the panel's zone specifications, particularly on longer cable runs across larger commercial sites.

5. What does the tamper protection actually detect?

   The tamper circuit alerts the AX Hybrid panel if the detector housing is opened or physically removed from its mounting surface. This is a standard requirement for commercially installed alarm systems and ensures that any attempt to disable or relocate the sensor generates an event log entry on the panel, maintaining zone integrity for the duration of the system's operation.

6. Will this detector work on a steel roller door as well as a glass panel?

   Yes, and this is where the adjustable sensitivity matters. Steel roller doors transmit vibration differently to glass - they tend to flex and resonate from general environmental vibration such as passing vehicles. Setting sensitivity appropriately for the surface type and local ambient vibration during commissioning is what makes the DS-PDSK-P practical across both surface types. The unit's operating temperature range to +50 degrees C also makes it suitable for steel roller doors in hot environments such as uninsulated warehouses. Contact Security Australia if you need guidance on which sensitivity range suits a specific installation scenario.
