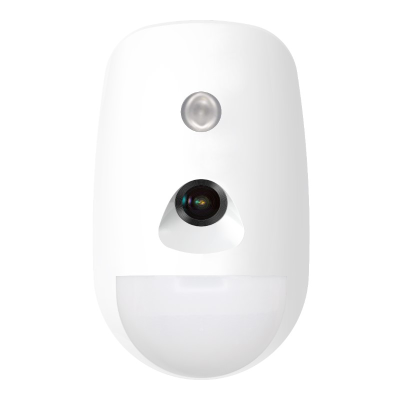

Hikvision DS-PDPC12P-EG2 Wired PIRCAM detector

Model: DS-PDPC12P-EG2

Who This Is For

For security integrators and system designers who need verified alarm events rather than raw motion triggers, the Hikvision DS-PDPC12P-EG2 Wired PIRCAM Detector pairs PIR detection with an integrated VGA camera in a single wired unit. When a monitoring centre or end user needs visual confirmation before dispatching a response, this detector captures an image at the point of alarm - reducing false response costs and giving operators something concrete to assess. It connects via DC 12V wired power, making it suited to structured alarm panel installations in commercial premises, office environments, and indoor retail spaces where stable wiring already exists. The 12-metre detection range and 85.3-degree detection angle give useful coverage across corridors, entry foyers, and open-plan areas without stacking multiple devices. Built-in anti-mask detection adds a layer of tamper resistance that matters in unattended or after-hours environments.

What This Product Actually Does

Who Buys This Model

• Security integrators building Hikvision alarm panel systems: The DS-PDPC12P-EG2 slots directly into Hikvision alarm infrastructure, providing visual verification capability without adding a separate camera channel or NVR to the design.
• Monitoring centre operators requiring verified dispatch: Alarm events that include an image capture allow operators to confirm activity before escalating to a physical response - reducing unnecessary callouts on commercial accounts.
• Commercial property managers specifying after-hours detection: The combination of anti-mask detection and wired power suits retail stores, offices, and warehouses that need tamper-aware detection running reliably through unattended overnight periods.
• Installers replacing standard PIR detectors with verified detection: Sites that have experienced repeated false alarms from conventional PIRs benefit from adding visual context to each alarm event - the PIRCAM captures what triggered the detector at the moment of activation.

Honest Assessment

The DS-PDPC12P-EG2 does what a standard PIR detector cannot - it attaches a VGA image to each alarm event, giving monitoring operators something to look at before committing to a response. The 12-metre range and 85.3-degree angle provide workable indoor coverage, and the wired DC 12V supply makes this a stable, low-maintenance component in a structured installation. Anti-mask detection adds meaningful tamper resistance for after-hours commercial environments. This detector is available through Security Australia as part of the Hikvision alarm ecosystem. What it will not do is function as a standalone IP camera or CCTV device - the VGA image resolution is suited to alarm verification, not detailed forensic review, and the device depends on a compatible Hikvision alarm panel to operate and transmit events. If continuous high-resolution video recording is the requirement, a dedicated IP camera with NVR storage is the more appropriate product type.

Before You Buy

Quick Fit Check

• Good match if: You are building or expanding a Hikvision wired alarm system and want verified visual events attached to each alarm trigger - the PIRCAM's image capture at the moment of PIR activation addresses this directly without adding a separate camera channel.
• Good match if: The installation site has existing structured wiring and a compatible Hikvision alarm panel, and after-hours tamper resistance is a requirement - the anti-mask detection and wired DC 12V supply suit this scenario well.
• You may need a different model if: Continuous high-definition video recording is the primary goal rather than alarm verification - a dedicated IP camera with NVR storage will deliver significantly better resolution, continuous recording, and full playback capability.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need alarm events to carry visual verification without adding a separate IP camera channel - the DS-PDPC12P-EG2 delivers a VGA image at point of PIR trigger, integrated into a Hikvision wired alarm panel architecture.
• You may need a different model if: Continuous HD video recording with timeline playback is the requirement - a dedicated IP camera paired with an NVR is the appropriate product type for that use case, offering significantly higher resolution and continuous storage.
• Pairs well with: A compatible Hikvision wired alarm panel and central monitoring software - the PIRCAM is a zone device and requires panel infrastructure to transmit and manage alarm events.

Common Questions

1. Will this detector work as a standalone device without an alarm panel?

   No. The DS-PDPC12P-EG2 is a wired zone detector that requires a compatible Hikvision alarm panel to operate. It does not have an independent network connection, onboard storage, or local display. The panel receives the PIR trigger and associated image capture, manages zone logic, and handles communication to monitoring software or a response centre.

2. Does this work for monitoring centre verified alarm applications?

   Yes, this is one of its primary use cases. When the PIR triggers, the integrated camera captures a 640 x 480 image at the moment of detection. Monitoring operators receive an image alongside the alarm event, allowing them to assess activity before dispatching a response - which is the core requirement for verified alarm protocols used by many commercial monitoring centres.

3. What image resolution does the built-in camera produce?

   640 x 480 pixels (VGA). This resolution is suited to alarm verification - identifying whether a person is present in the detection zone - rather than fine facial detail or forensic-grade review. If high-resolution identification is the requirement, a dedicated IP camera with a 2MP or higher sensor is the more appropriate product type for that function.

4. What does anti-mask detection actually do in practice?

   It detects when an object is placed in front of or over the detector to obstruct its view. When this is detected, the panel receives a tamper alert separate from a standard motion alarm. This is particularly relevant for commercial sites where a deliberate attempt to blind a detector before forced entry is a known tactic - the tamper alert flags the interference event immediately rather than leaving it undetected.

5. What power supply does the DS-PDPC12P-EG2 require?

   DC 12V wired power. This is supplied from the alarm panel's auxiliary power output or a dedicated 12V power supply run to the detector location. There is no battery backup or wireless power option - the device is hardwired, which ensures consistent operation but requires appropriate cable runs to each detector position during installation.

6. Does this detector work outdoors?

   The IP65 rating confirms the enclosure is dust-tight and protected against water jets, and the operating temperature range of -10°C to +50°C covers most Australian outdoor conditions. However, the device is designed and positioned as an indoor detector. If outdoor installation is intended, confirm with your Hikvision panel documentation that the unit is approved for external mounting before proceeding - stocked by Security Australia, the product is specified for indoor applications in Hikvision's published documentation.

7. What is the effective detection coverage area at 12 metres?

   At maximum range, the 85.3-degree detection angle produces a coverage arc roughly 18 to 19 metres wide at the far end of the detection zone. In practice, this covers a standard open-plan office bay, a retail floor section, or a corridor end-to-end from a single corner mounting point. Detection performance is strongest when movement crosses the PIR's sensing pattern laterally rather than approaching the detector head-on.
