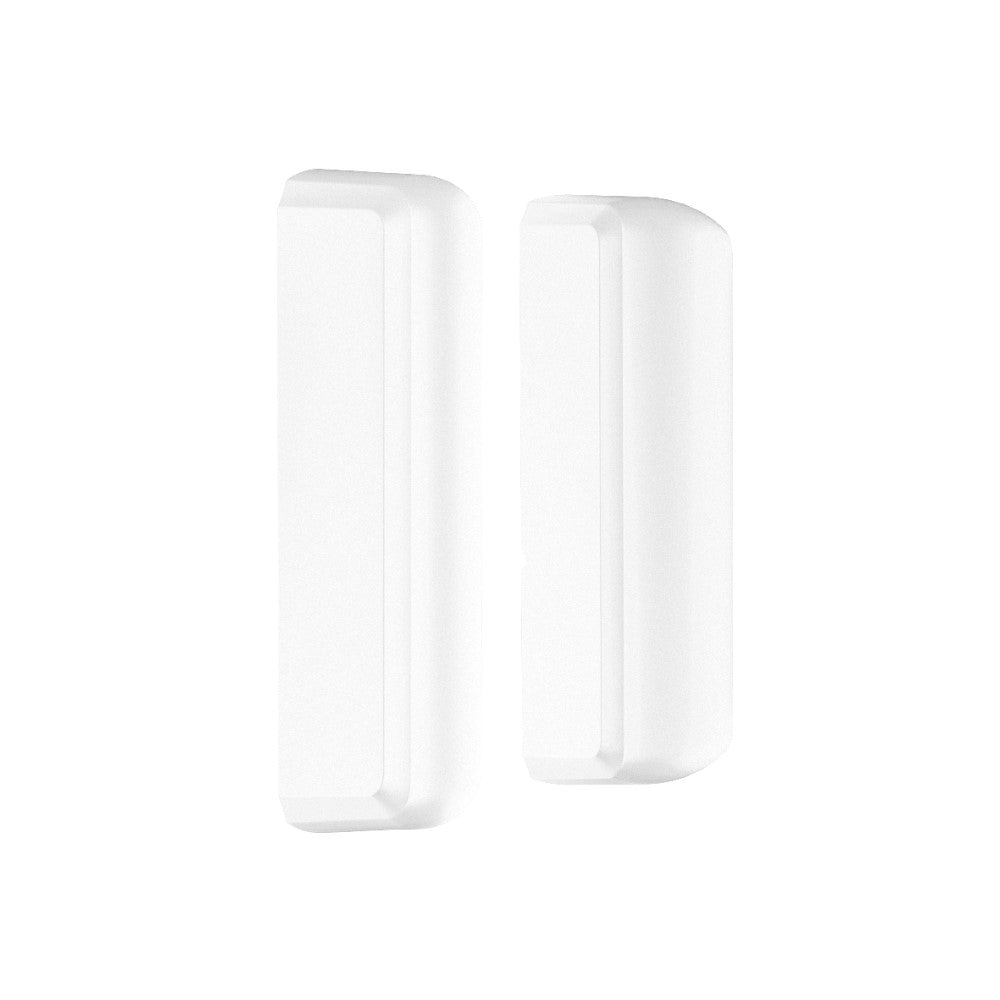

Hikvision DS-PDMCX-E-WB Ax Pro Wireless Outdoor Reed Switch, Large, IP66 External Magnet Detector

Model: DS-PDMCX-E-WB

Who This Is For

Property managers specifying perimeter protection for gates, roller doors, and external access points will find the DS-PDMCX-E-WB a practical fit for Ax Pro wireless alarm systems. This is a large-format outdoor reed switch built specifically for situations where a standard indoor contact sensor would fail - exposed timber or metal gate frames, outbuilding doors, and commercial entry points that cop direct weather exposure. The IP66 rating means dust and heavy rain are not a concern, and because it runs wirelessly on a CR123A battery, there is no conduit or cabling required at the door frame. AES-128 encryption keeps the wireless signal secure against interception. It pairs directly with Hikvision Ax Pro hybrid panels, so installers already working within that ecosystem can add external detection zones without introducing a separate product line or hub.

What This Detector Actually Does

Who Buys This Model

• Alarm Installers on Ax Pro Systems: Technicians building out Hikvision Ax Pro installations who need a weatherproof outdoor contact for gates, roller doors, or outbuildings without running cabling to the frame.
• Commercial Property Managers: Sites with external access control points - rear loading bay doors, yard gates, plant room entries - where an indoor-rated contact would deteriorate and where wireless avoids costly conduit runs across open ground.
• Rural and Industrial Sites: Properties with sheds, machinery stores, or boundary gates at distance from the main building, where running wired detection is impractical and the IP66 rating handles dust and weather conditions common in those environments.
• Residential Perimeter Upgrades: Homeowners on an existing Ax Pro system who want to add detection to a side gate or pool gate without disturbing landscaping or fencing with cable runs.

Honest Assessment

The DS-PDMCX-E-WB does a specific job well: it brings reliable open/close detection to outdoor access points that would defeat a standard indoor contact sensor. The IP66 rating is genuine outdoor-grade protection, the large magnet format handles wider door-to-frame gaps typical of gates and heavy external doors, and AES-128 encryption adds a layer of signal security that cheaper wireless contacts do not provide. Battery-based operation with low battery reporting keeps ongoing maintenance manageable. Where this unit does not fit is in applications requiring detection beyond simple open/close status - if the requirement is glass break, vibration sensing, or motion detection at a perimeter, different detector types are needed. It also only works within the Hikvision Ax Pro wireless ecosystem; it cannot be enrolled into third-party alarm panels. Security Australia stocks this as part of the wider Ax Pro sensor range, so compatible panels and accessories are available alongside it.

Before You Buy

Quick Fit Check

• Good match if: You are installing or expanding a Hikvision Ax Pro alarm system and need to protect an outdoor gate, roller door, or external access point where cabling to the frame is impractical and the location is exposed to weather.
• Good match if: The access point has a wider frame-to-door gap that standard small-format reed switches do not bridge reliably - the large external magnet format is designed for this.
• You may need a different model if: Your alarm panel is not Hikvision Ax Pro, or if the detection requirement goes beyond open/close status - perimeter motion detection or vibration sensing would require a different detector type available through the broader Ax Pro sensor range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a dedicated outdoor-rated wireless contact detector for the Ax Pro platform - the IP66 housing and large external magnet format are specifically built for gate and external door applications that standard indoor contacts cannot handle.
• You may need a different model if: Your requirement is perimeter intrusion detection beyond open/close events - outdoor PIR detectors or vibration sensors in the Ax Pro range would be more appropriate for those scenarios.
• Pairs well with: A Hikvision Ax Pro wireless or hybrid alarm panel, and other Ax Pro wireless sensors covering internal zones - the combination builds a complete detection layer from perimeter gates through to interior spaces.

Common Questions

1. Will this detector work with any wireless alarm panel, or only Hikvision?

   Only Hikvision Ax Pro panels. The DS-PDMCX-E-WB uses Hikvision's proprietary wireless protocol and is enrolled exclusively into Ax Pro series hybrid or full-wireless alarm panels. It cannot be paired with third-party alarm systems, DSC, Paradox, or generic 433MHz panels. If your existing panel is not Ax Pro, a different detector will be required.

2. Does this work for a gate with a large gap between the post and the gate leaf?

   Yes, within limits. The large external magnet format is designed for installations where the gap between the fixed surface and the moving door or gate is wider than a standard small reed switch can reliably span. If the gap exceeds the operational range of the magnet, the sensor may not reset correctly when the gate closes. Confirm the specific activation distance against your gate gap before installation.

3. What does the IP66 rating actually mean for this installation?

   IP66 means the detector is fully sealed against dust and protected against powerful water jets from any direction. In practical terms, it can be mounted on an exposed outdoor gate post or door frame without a secondary enclosure, and it will handle rain, hose-down, and dusty environments without moisture ingress degrading the electronics or triggering false alarms.

4. How does the AES-128 encryption protect this device?

   AES-128 encrypts the wireless communication between the detector and the Ax Pro panel. This prevents an attacker from capturing and replaying the signal to either trigger false alarms or suppress a genuine alarm event. For commercial sites where defeating perimeter sensors is a known pre-break-in technique, encrypted wireless communication is a meaningful security control compared to unencrypted 433MHz devices.

5. How will I know when the battery needs replacing?

   The detector monitors its own CR123A battery and reports a low battery status to the Ax Pro panel before the device fails. The panel will generate a low battery alert for that specific zone, giving you time to schedule a battery replacement without losing detection coverage. The CR123A is a widely available lithium primary cell.

6. Does this detector alert if someone tries to remove it from the wall?

   Yes. The DS-PDMCX-E-WB includes a tamper circuit that triggers a separate tamper alert to the Ax Pro panel if the unit is physically disturbed or removed from its mounting. This is distinct from the open/close alarm and allows the system to distinguish a normal access event from an attempt to defeat the sensor. The tamper alert is reported in real time through the Ax Pro platform, available through Security Australia alongside compatible panels and accessories.

7. Can this detector be used on a sliding gate rather than a swing gate or door?

   Yes, with correct mounting. Reed switch detectors work on any moving surface - swing doors, sliding gates, roller doors, or hinged windows - as long as the switch body is mounted on the fixed frame and the magnet is mounted on the moving element. When the gate slides open, the magnet separates from the switch and triggers the alarm. The key variable is ensuring the magnet passes close enough to the switch body when the gate is in the closed position.
