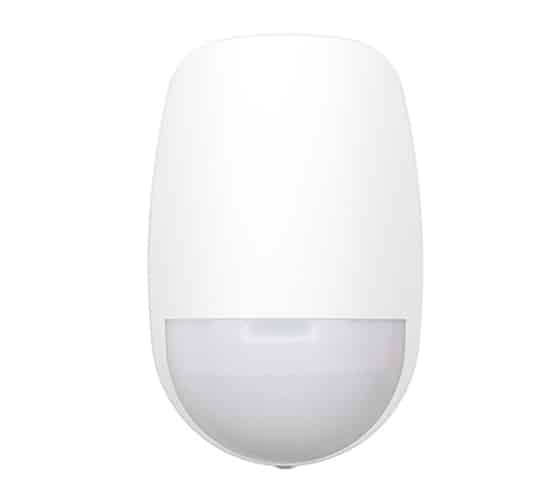

Hikvision DS-PDD12P-EG2 AX Hybrid Series Wired Dual Tech Detector PIR

Model: DS-PDD12P-EG2

Who This Is For

When false alarm reduction is the priority - whether for a commercial premises, warehouse entry point, or residential installation where pets or passing vehicles keep triggering standard PIR detectors - the Hikvision DS-PDD12P-EG2 is the wired detector to specify. It combines passive infrared sensing with microwave detection, requiring both technologies to trigger simultaneously before an alarm event is raised. This dual-validation approach is what separates it from single-tech PIRs in environments where temperature fluctuations, airflow, or small animals create nuisance alerts. Rated IP65, it can be mounted indoors or outdoors across a detection range of up to 12 metres, and it integrates into the Hikvision AX Hybrid Series wired alarm infrastructure. Installers specifying detection zones on Hikvision AX Pro or compatible hybrid panels will find this detector a straightforward, dependable addition to any zone layout.

What This Detector Actually Does

Who Buys This Model

• Alarm installers on Hikvision AX Hybrid panels: Specifying wired zones where dual-tech detection is required by the site risk assessment or insurance underwriter, and the panel infrastructure is already AX-based.
• Commercial property managers: Replacing legacy single-tech PIRs in environments like warehouses, plant rooms, and covered loading areas where temperature swings have historically caused nuisance alarms.
• Residential installers in pet-occupied homes: Where a standard PIR triggers on cats, dogs, or small animals moving at night and the client needs detection logic that filters out that movement without disabling the zone entirely.
• Security system integrators on outdoor zones: Mounting in covered outdoor locations - undercover carparks, pergolas, entry porticos - where the IP65 rating is needed and a wireless detector would have power or range limitations.

Honest Assessment

The DS-PDD12P-EG2 does its core job well: the combination of PIR and microwave sensing with digital temperature compensation addresses the two main failure modes of standard PIRs - nuisance alarms from thermal events and reduced sensitivity in hot conditions. The IP65 rating expands the usable install locations meaningfully, and native integration into Hikvision AX Hybrid Series panels keeps commissioning straightforward for installers already in that ecosystem.

Where this detector has limits: it is a wired device only, so it is not suitable for retrofit installations where running cable is not feasible - a wireless dual-tech detector would be the better fit in those situations. It is also specific to the Hikvision AX platform; integrators working on DSC, Bosch, or other panel brands will need to verify zone compatibility before specifying. Available through Security Australia, the DS-PDD12P-EG2 is a practical specification choice for new AX Hybrid installations or wired zone upgrades where false alarm performance matters.

Before You Buy

Quick Fit Check

• Good match if: You are wiring a Hikvision AX Hybrid Series panel and need a detector for a zone where nuisance alarms from thermal movement, pets, or airflow have been an ongoing issue - the dual-tech logic directly addresses that.
• Good match if: The mounting location is a covered outdoor area, undercover carpark, or entry point exposed to dust and moisture where an IP65-rated housing is required for long-term reliability.
• You may need a different model if: Cable runs to the detection zone are not practical or the installation is a retrofit where surface-mounted wiring is not acceptable - a wireless dual-tech detector would be a better fit for those situations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a wired dual-tech detector for a Hikvision AX Hybrid Series panel where false alarm reduction and outdoor-rated durability are both required in the same zone.
• You may need a different model if: Cable installation is not feasible or the project requires a wireless detector - a wireless dual-tech PIR from the AX Pro wireless range would be the more suitable product type for those situations.
• Pairs well with: Hikvision AX Hybrid Series wired alarm panels and a compatible indoor siren or outdoor sounder-strobe on the same AX system for a complete detection-to-alert setup.

Common Questions

1. Will this detector work with my existing Hikvision AX Pro panel?

   Yes, provided your panel is part of the Hikvision AX Hybrid Series. The DS-PDD12P-EG2 is designed for direct wired zone integration into the AX Hybrid platform. Before purchasing, confirm the specific panel model in your installation is AX Hybrid compatible and that you have an available wired zone with the correct auxiliary power output to supply the DC 9-15V requirement.

2. Does this detector work outdoors?

   Yes. The IP65 rating makes it suitable for outdoor use in covered locations such as undercover carparks, entry porticos, loading docks, and eave-mounted positions. It is not rated for direct rain exposure, so a degree of overhead shelter is recommended for long-term performance. The operating temperature range of -10°C to +55°C covers the conditions found across most Australian climates.

3. How does dual-tech detection actually reduce false alarms compared to a standard PIR?

   A standard PIR triggers on any heat source that moves across its field of view - including pets, curtains moving near heating vents, or sunlight patches shifting across the floor. The DS-PDD12P-EG2 requires both the PIR and the microwave sensor to detect movement at the same time before an alarm is generated. An event that only triggers one of the two sensors - for example, a thermal event without physical movement, or a microwave reflection without a heat source - does not produce an alarm output.

4. What does digital temperature compensation do and why does it matter in Australian conditions?

   Standard PIR detectors lose sensitivity as ambient temperature approaches body temperature - a condition that regularly occurs in Australian summers, particularly in unair-conditioned spaces like garages, sheds, and stockrooms. Digital temperature compensation automatically adjusts the detector's sensitivity threshold as ambient temperature rises, maintaining reliable detection performance across the full -10°C to +55°C operating range without requiring manual adjustment when seasonal temperatures change.

5. Can the detection angle be adjusted after installation?

   Yes. The DS-PDD12P-EG2 features an adjustable detection angle, which allows the coverage field to be shaped to the specific zone geometry after the detector is mounted. This is useful when the installation point covers an area where partial zone coverage is needed - for example, covering a corridor without including a adjacent stairwell or doorway in the detection field.

6. What power supply does the DS-PDD12P-EG2 need?

   The detector requires DC 9-15V supplied via the panel wiring. It draws power directly from the AX Hybrid panel's auxiliary power output through the zone cable - there is no separate power adaptor required. Installers should account for the power draw of all detectors on a shared supply rail when planning multi-zone installations, particularly in larger commercial systems with multiple wired devices on the same panel. The team at Security Australia can assist with panel compatibility questions if needed.

7. Is this detector suitable for a property with cats or dogs?

   Partially. The dual-tech logic requires both PIR and microwave detection to fire simultaneously, which does reduce the likelihood of a small animal's thermal signature alone triggering an alarm. However, the DS-PDD12P-EG2 is not rated as a dedicated pet-immune detector. For properties with larger animals or where the animals roam freely at floor level, a detector specifically rated for pet immunity and specifying a maximum animal weight threshold would offer more predictable performance.
