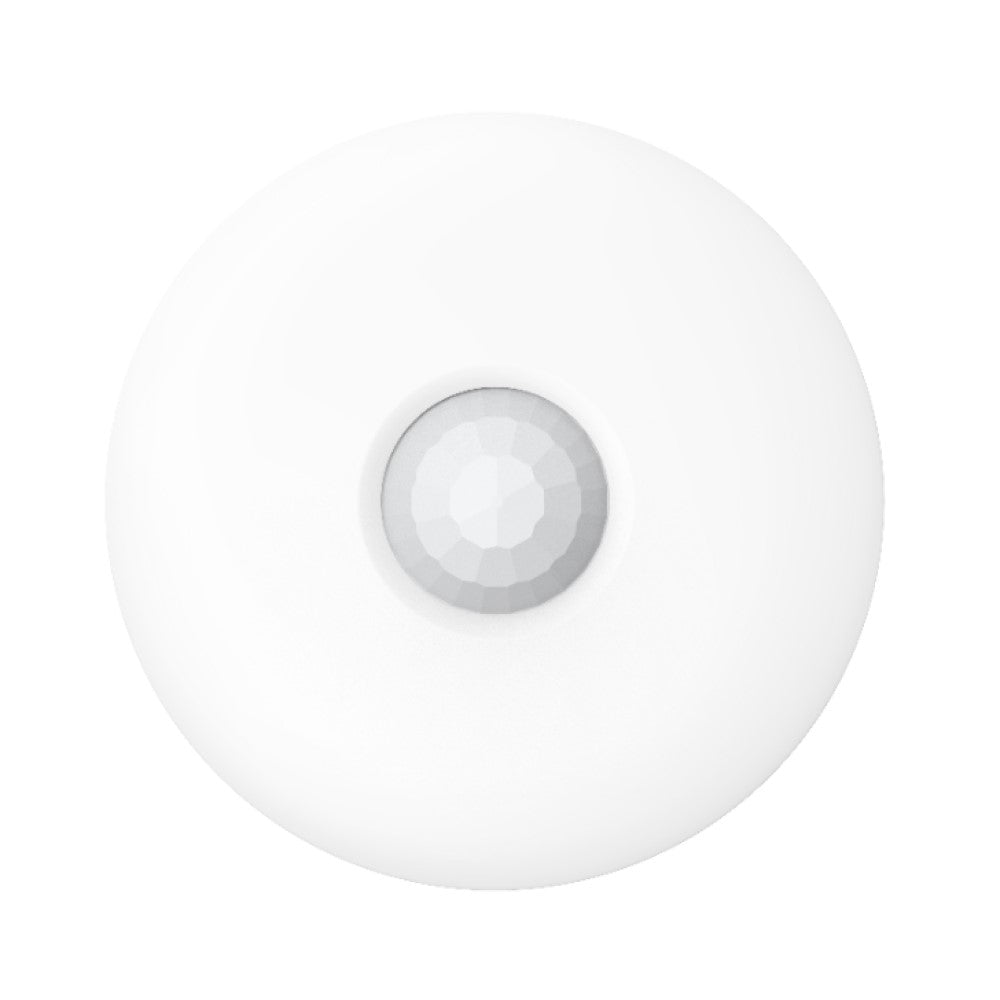

Hikvision DS-PDCL12DT-EG2 Wired Dual-Tech 360 Degree Ceiling Detector with EOLR

Model: DS-PDCL12DT-EG2

Who This Is For

For alarm system installers and security integrators who need a ceiling-mounted detector capable of covering large open-plan spaces without blind spots. The Hikvision DS-PDCL12DT-EG2 is a wired dual-tech 360-degree ceiling detector built for commercial and residential environments where a single device needs to monitor an entire room - lobbies, open-plan offices, retail floors, and multi-access spaces. Its combined PIR and microwave detection reduces false alarm events that would otherwise erode user confidence in a system. The End-of-Line Resistor (EOLR) support is specifically valued by integrators specifying hardwired alarm panels that require supervised zones. If you are specifying a wired detection zone that demands full-perimeter coverage from a single mounting point with panel-compatible zone supervision, the DS-PDCL12DT-EG2 is built around that requirement.

What This Detector Actually Does

Who Buys This Model

• Commercial alarm installers: Specifying wired detection zones in offices and retail tenancies where a single ceiling point needs to cover an entire open-plan floor without corner-mounting multiple units.
• Security integrators on insurance-grade installs: Projects where the alarm panel specification requires supervised zones - EOLR support lets them satisfy that requirement with a single detector rather than adding supervision modules.
• Facility managers upgrading existing hardwired systems: The NO/NC output and EOLR compatibility mean this detector drops into existing panel zone wiring without replacing the panel or running new cable types.
• Industrial and warehouse site integrators: The IP65 rating and -10 °C to +55 °C operating range make this a workable choice for covered loading areas, plant rooms, and warehouses where standard detectors would fail prematurely.
• Childcare centres and education facilities: Environments where false alarms carry a significant operational cost - dual-tech AND-logic detection reduces nuisance events that disrupt operations and erode occupant trust in the system.

Honest Assessment

The DS-PDCL12DT-EG2 does its primary job well: combining PIR and microwave detection into a single ceiling-mount unit with full 360-degree coverage. The EOLR support and NO/NC output make it genuinely useful on commercial alarm projects where panel compatibility and zone supervision are hard requirements, not nice-to-haves. The IP65 rating meaningfully extends where this can be installed compared to standard indoor PIR detectors. Sensitivity adjustment at commissioning is a practical feature rather than a marketing claim - it addresses real-world install variables like HVAC and refrigeration interference. What this detector will not do: it does not function as a wireless sensor, so any project using a wireless panel or hybrid bus architecture will need a different product type. It also does not provide video verification or image capture on trigger - sites requiring visual confirmation of alarm events should pair this with a camera system rather than relying on the detector alone. Available through Security Australia as part of the Hikvision wired detection range.

Before You Buy

Quick Fit Check

• Good match if: You are wiring a commercial alarm zone in a large open-plan space - lobby, warehouse, or retail floor - where a single ceiling mounting point needs to deliver full-perimeter detection coverage without corner brackets or multiple zone wires.
• Good match if: Your panel specification requires supervised zones and EOLR support - the DS-PDCL12DT-EG2 has EOLR built in and outputs both NO and NC, making it compatible with standard supervised wired zone inputs without additional components.
• You may need a different model if: Your alarm panel is a wireless or hybrid bus system - this is a wired-output detector only and requires a hardwired zone input. A wireless PIR or dual-tech detector would be more suitable for those installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 360-degree ceiling coverage with EOLR zone supervision in a single wired detector - particularly where dual-tech false alarm reduction is a specification requirement for the project.
• You may need a different model if: The alarm panel is wireless or bus-based - this detector requires a hardwired zone input, so a wireless dual-tech ceiling detector would be more appropriate for those system types.
• Pairs well with: A hardwired alarm panel with supervised zone inputs, and optionally a wired IP camera system for sites that also require visual alarm verification alongside the detection zones.

Common Questions

1. Will this detector work with my existing hardwired alarm panel?

   Yes, in most cases. The DS-PDCL12DT-EG2 outputs a standard NO/NC dry contact signal that is compatible with virtually any hardwired alarm panel zone input. The EOLR supervision feature requires you to match the resistor value to your panel's specification - confirm the supervised zone resistor value in your panel's installation manual before wiring.

2. Does dual-tech detection actually reduce false alarms compared to a standard PIR?

   Yes, meaningfully so. A single-tech PIR detector triggers on infrared energy change alone - heat from HVAC vents, sunlight moving across a floor, or a large insect can generate an event. Dual-tech detection requires both the PIR and the microwave sensor to confirm movement before an alarm output is generated. This AND-logic significantly reduces nuisance triggers in environments with temperature variation or air movement, which is the primary reason installers specify dual-tech detectors for commercial projects.

3. What is the difference between the PIR 12-metre range and the microwave 20-metre range?

   The 2 ranges reflect the different physics of each sensor. PIR detects changes in infrared (heat) energy from a moving body, with effective range up to 12 metres from the ceiling mount. Microwave emits a continuous signal and detects movement by sensing the reflected signal change (Doppler effect), giving it longer reach up to 20 metres. In practice, the effective alarm zone is governed by the PIR range because both sensors must trigger simultaneously. The longer microwave range provides overlap rather than extended detection distance.

4. Does this detector work in an outdoor or semi-outdoor installation?

   Yes, with conditions. The IP65 rating means the detector is sealed against dust and can handle water jets, and the operating temperature range of -10 °C to +55 °C covers most Australian climate conditions. It is suitable for covered outdoor areas such as carport ceilings, covered loading docks, and enclosed car parks where it will not be directly exposed to rain. Direct weather exposure - open sky, rain splash, direct sun on the housing - is outside the intended use case.

5. How does the EOLR feature actually work and why does it matter?

   EOLR works by placing a resistor of a specified value at the end of the zone wiring loop (at the detector). The alarm panel monitors the resistance on that zone circuit continuously. If the wiring is intact and the detector is in a normal state, the panel reads the correct resistor value. If the cable is cut, the resistance goes to infinity (open circuit). If the cable is shorted, the resistance drops to near zero. Either deviation triggers a zone fault on the panel, alerting you to a wiring fault or a potential tamper attempt - even if no motion has been detected. This is a requirement on many Australian Standard and insurance-grade commercial alarm specifications, and the DS-PDCL12DT-EG2 supports it natively without additional components.

6. Will this detector work for a space with refrigeration units or constant air movement?

   Yes, it is a suitable choice for those environments. Refrigeration units create consistent temperature differentials and air movement that are a known false alarm source for standard PIR detectors. The dual-tech logic requires microwave confirmation alongside the PIR trigger, so a temperature change caused by a refrigeration cycle alone will not generate an alarm event. The sensitivity adjustment allows further tuning at commissioning if the environment has particularly strong interference sources. This is one of the primary reasons dual-tech ceiling detectors like the DS-PDCL12DT-EG2, stocked by Security Australia, are specified for food retail and cold-storage adjacent areas.

7. Does this detector provide video capture or alarm verification images when it triggers?

   No. The DS-PDCL12DT-EG2 is a dry-contact motion detector only - it outputs a zone alarm signal to the alarm panel with no onboard image capture or video capability. If visual alarm verification is required, the detector should be used in combination with an IP camera system that can be triggered by the alarm panel output or independently by its own motion detection. The 2 systems serve complementary but separate functions.
