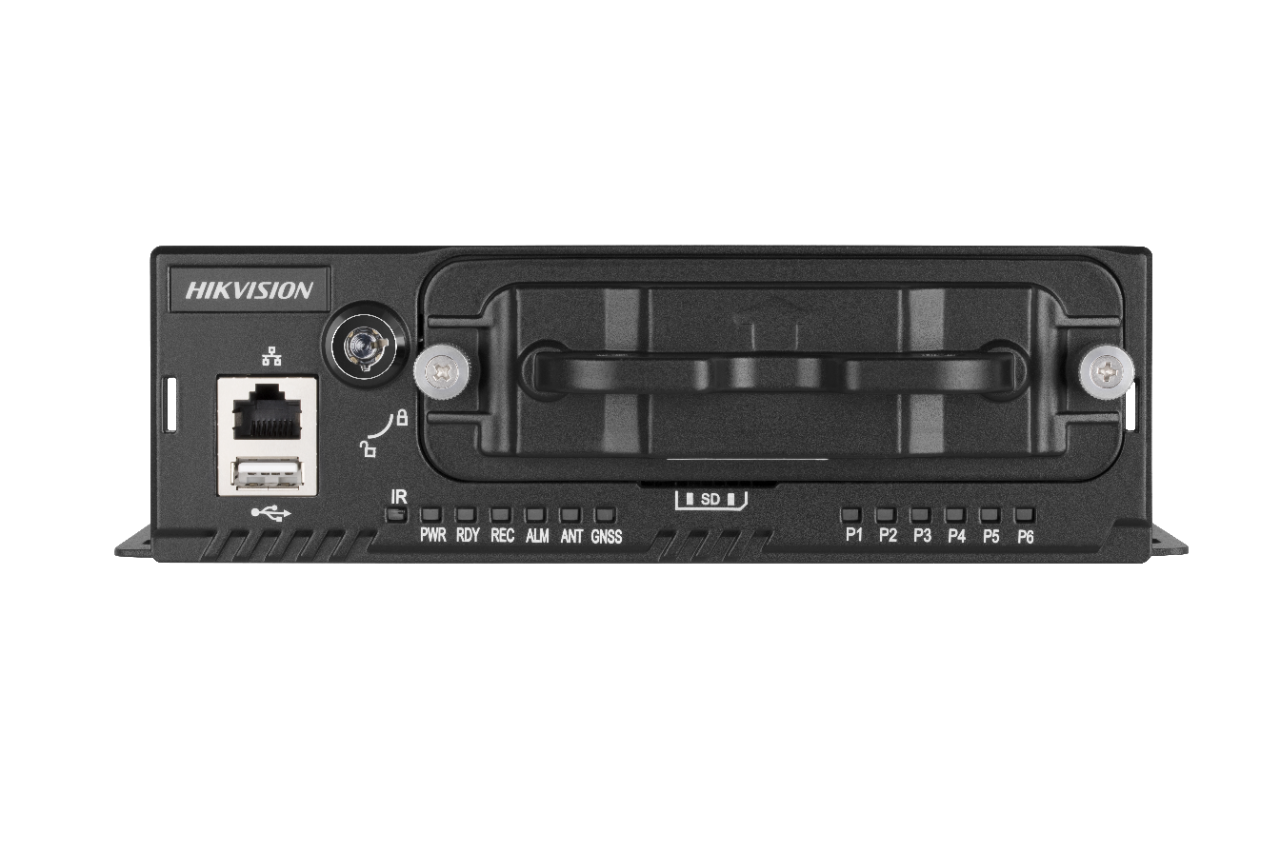

Hikvision DS-MP5604N 4ch Mobile NVR 1x HIK-M5604N
The device supports remote access, enabling users to view live footage and playback recordings from anywhere using a web interface or mobile app. Its robust security features protect against unauthorized access and tampering, ensuring the integrity of recorded data. The NVR is compatible with a range of Hikvision IP cameras, offering flexible integration with existing surveillance systems. Its compact and modular design simplifies installation and maintenance, making it a convenient choice for various applications. The DS-MP5604N also supports alarm inputs and outputs, enabling integration with other security systems for comprehensive protection. Its user-friendly interface and advanced functionalities make it suitable for both professional and personal use.
Key Features
Code/SKU: DS-MP5604N
Quick Specs:
| Video/Audio Input | |
|---|---|
| IP Camera | 4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.4 |
| Two-way Audio | 1, integrated in EXT.DEV interface |
| Video/Audio Output | |
| Video Output | Main output: 1, integrated in EXT.DEV interface VGA: 1 |
| Audio Output | 1, integrated in AVOUT of EXT.DEV interface2 |
| Storage | |
| HDD/SSD | 2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD, A dummy HDD with USB 3.0 interface |
| SD Card | 1 × SD card, up to 256 GB |
| External Interface | |
| Network Interface | 1 × 10M/100M RJ45 Ethernet interface 1 × 10M/100M 12M 6-pin aviation connector (Non-PoE) |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector) |
| Alarm Input | 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input |
| Alarm Output | 2 relay signal outputs |
| Serial Port | 1 × RS-232, 1 × RS-422 |
| Sensor-in | 4 high/low level signal inputs |
| Wireless Network | |
| 3G/4G Dialing | WCDMA/TDD-LTE/FDD-LTE modules are supported. 1 × 3G/4G card slot, 1 × Rosenberger antenna |
| Wi-Fi | 802.11b/g/n and 802.11ac are selectable. 1 antenna is needed for 802.11b/g/n module. 2 antennas are needed for 802.11ac module 1 × 2.4 G Wi-Fi SMA antenna |
| General | |
| Working Temperature | Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140 °F) Other devices: -10 °C to +60 °C (+14 °F to +140 °F) |
| Working Humidity | 10% to 95% |
| Power Supply | 9 to 32 VDC |
| Consumption | Standby: ≤ 0.5 W Full load: ≤ 70 W Note: Without peripheral and storage media: ≤ 20 W |
| Operating Method | Mouse, IR remote control, Web control, and touchscreen |
| Dimensions (W × D × H) | 206 × 219 × 60 mm (8.1 × 8.62 × 2.36 inch) |
| Weight (Without Storage Media) | 1.6 kg (3.53 lb) |
| Positioning | |
| GNSS (Global Navigation Satellite System) | GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × Rosenberger antenna |
| Encoding/Decoding Parameters | |
| Video Compression | H.264/H.265 |
| Encoding Resolution | Main stream: 4 MP/3 MP/1080p/720p/WD1/4CIF Sub-stream: 720P/4CIF/2CIF/CIF |
| Frame Rate | PAL: 1 to 25 fps, NTSC: 1 to 30 fps; |
| Audio Compression | G.711/G.722.1 |
| Stream Type | Video, Video & Audio |
| Audio Bitrate | 16 Kbps |
| Dual Stream | Supported |
| PoE | |
| PoE Interface | 4 × RJ45 10M/100M self-adaptive PoE interface |
| Max. Consumption | 45 W |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-MP5604N 4ch Mobile NVR 1x HIK-M5604N
The Hikvision DS-MP5604N is a versatile 4-channel mobile NVR designed for high-performance surveillance in dynamic mobile environments. This NVR features a compact and rugged design, making it suitable for installation in vehicles and other mobile setups. It supports up to 4 MP resolution, delivering clear and detailed video footage crucial for effective monitoring during transit.
Utilizing H.265 compression technology, the DS-MP5604N significantly reduces bandwidth usage and storage space requirements while maintaining excellent video quality. This NVR offers dual HDD/SSD slots, providing flexible storage options for extensive data retention and reliability, even on the move.
The mobile NVR is built to withstand harsh conditions, boasting robust construction that ensures durability during operation. With advanced recording capabilities, including continuous, scheduled, and event-triggered modes, it is designed to meet diverse surveillance needs while providing users with intuitive management software for easy configuration and monitoring.
Key Features:
Functions:
Reliable Mobile Surveillance:
Provides high-definition monitoring capabilities on the move, suitable for security applications during transit across various vehicles, ensuring continuous surveillance for protection.
Intelligent Event Management:
Advanced features enable users to configure specific trigger events that activate recording, ensuring critical incidents are documented effectively for analysis and review.
Efficient Data Management:
Dual HDD/SSD slots support extended storage capabilities, allowing users to efficiently manage and archive data without interruption while maximizing data reliability.
Comprehensive Network Protocol Support:
Supports various protocols including TCP/IP and DHCP, allowing for seamless integration into existing networks and enhancing compatibility with multiple devices.
Remote Monitoring and Control:
Users can manage surveillance operations and access video feeds remotely via mobile applications, improving monitoring flexibility and allowing for quick responses to alerts.
Durability in Harsh Conditions:
Built to endure challenging environments, the NVR maintains functionality in extreme temperatures and demanding situations, ensuring consistent performance in mobile security solutions.
Easy Installation with PoE:
The support for Power over Ethernet simplifies the connection of cameras, providing a singular, efficient line for both data and electrical power.
Technical Specifications
| Model | DS-MP5604N |
| Channel Capacity | 4 channels of IP cameras |
| Max Resolution Supported | 4 MP (using H.264/H.265 compression) |
| Video Compression | H.265, H.264, MJPEG |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Storage Options | Dual HDD/SSD slots, up to 2 TB each |
| Audio Support | 1-ch, integrated 2-way audio support |
| Power Supply | 9 VDC to 32 VDC or PoE (802.3at) |
| Operating Temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Weight | Approx. 2.5 kg (5.51 lb) |
| Dimensions | Approx. 380 mm × 290 mm × 45 mm |
| Remote Management | Supports Hik-Connect and iVMS-4200 mobile app |
| User Management | Up to 32 users with different access levels |
| Durability | Rugged design for mobile environments |
| Network Protocols | TCP/IP, DHCP, DNS, PPPoE, etc. |
