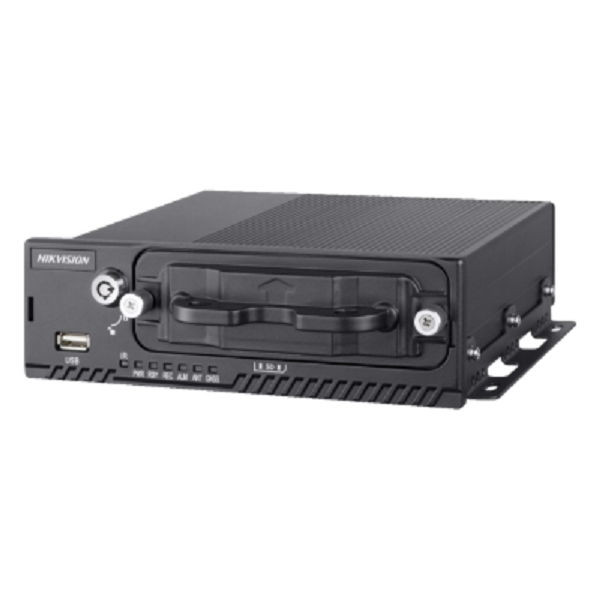

Hikvision DS-MP5604 4ch Mobile TVI DVR, HD1080P, GPS, VGA/CVBS

$941.00 AUD
$880.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

Hikvision DS-MP5604 4ch Mobile TVI DVR, HD1080P, GPS, VGA/CVBS

4-ch 1080p, H.265, 1xHDD/SSD Mobile DVR

The DS-MP5604 supports up to 4 analog cameras and can extend to 4 IP cameras with resolutions up to 1080p, making it suitable for high-definition video recording in various environments. Equipped with H.264/H.265 compression, it ensures efficient video storage and transmission. The recorder is powered by a wide voltage range of 9 to 32 VDC and consumes less than 45W under full load, ensuring energy efficiency.

Key Features

  • Flexible Channel Support: Supports up to 4 channels of 2 MP analog cameras, easily extending to include multiple IP camera options.
  • Efficient Video Compression: Utilizes H.265 compression technology to significantly reduce storage and bandwidth requirements without sacrificing quality.
  • Storage Capabilities: Compatible with 1 × 2.5 inch HDD/SSD (up to 2 TB) and 1 × SD card (up to 256 GB).
  • Wide Power Input Range: Powered by a wide voltage range of 9 to 32 VDC, ensuring compatibility with various power supplies.
  • Low Power Consumption: Designed to consume less than 45W under full load, enhancing energy efficiency in mobile applications.
  • Multiple Stream Support: Stream capability for both video and audio provides flexibility for various monitoring needs.
  • Device Integration: Supports optional 3G/4G and Wi-Fi modules, improving communication and connectivity for mobile surveillance.

Code/SKU: DS-MP5604
Quick Specs:

  • Audio Compression: Supports G.711 and G.722.1 for high-quality audio transmission.
  • Stream Type: Supports both video and audio streaming for comprehensive surveillance applications.
  • Audio Bitrate: 16 Kbps audio bitrate for efficient and clear sound quality during operation.

Specifications

Model DS-MP5604
Video/Audio Input Analog Camera: 4 analog cameras, up to 1080p resolution
IP Camera: 4 IP cameras, up to 1080p resolution (extendable via PoE switch)
Two-way Audio 1, integrated in EXT.DEV interface
Video/Audio Output Main output: 1, integrated in EXT.DEV interface
VGA: 1
Audio Output 1
Encoding/Decoding Parameters Video Compression: H.264/H.265
Encoding Resolution: Main stream: 1080p/720p/WD1/4CIF; Sub-stream: 4CIF/2CIF/CIF
Frame Rate: PAL: 1 to 12 fps@1080P; NTSC: 1 to 12 fps@1080P; PAL: 1 to 25 fps@720P; NTSC: 1 to 30 fps@720P
Audio Compression G.711/G.722.1
Stream Type Video, video & audio
Audio Bitrate 16 Kbps
Dual Stream Supported
Storage HDD/SSD: 1 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD (A dummy HDD with 2 HDD/SSDs can be extended.)
A dummy HDD with USB 3.0 interface
SD Card 1 × SD card, up to 256 GB
Wireless Network 3G/4G Dialing: 1 × 3G/4G card slot, 1 × Rosenberger antenna (Optional. WCDMA and FDD-LTE modules are supported.)
Wi-Fi: WI58 model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)
Positioning GNSS (Global Navigation Satellite System): GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × Rosenberger antenna
G-Sensor: Built-in
External Interface Network Interface: 1 × 10M/100M M12 6-pin aviation connector
Serial Port: 2 × RS-232, 1 × RS-422 (integrated in EXT.DEV interface)
USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 (5-pin aviation connector)
Sensor-in 4 high/low level signal inputs
Alarm Input 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
Alarm Output 2 relay signal outputs
General Operating Method: Mouse, IR remote control, Web control, and touchscreen
Power Supply 9 to 32 VDC
Consumption Standby: ≤ 0.5 W; Full load: ≤ 45 W (Note: Without peripheral and storage media ≤ 20 W)
Working Temperature Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140°F); Other devices: -10 °C to +60 °C (+14 °F to +140°F)
Working Humidity 10% to 95%
Dimension (W × D × H) 206 × 225.4 × 60.1 mm (8.1 × 8.87 × 2.37 inch)
Weight (Without Storage Media) 1.7 kg (3.7 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-MP5604 4ch Mobile TVI DVR, HD1080P, GPS, VGA/CVBS

$941.00 AUD
$880.00 AUD
 per

Hikvision DS-MP5604 4ch Mobile TVI DVR, HD1080P, GPS, VGA/CVBS

The Hikvision DS-MP5604 is a versatile 4-channel mobile video recorder designed for high-definition video recording and storage. Support for 1080p resolution ensures clear and detailed images across all channels.

Utilizing advanced H.265 compression technology, the DVR optimizes storage efficiency while maintaining high video quality. With dual HDD/SSD capabilities, it offers flexible storage options, ensuring data reliability and ample recording capacity for various applications.

The compact design of the DS-MP5604 makes it suitable for mobile setups, such as in vehicles, while the integrated GPS module provides real-time tracking of the camera’s location. This model is perfect for law enforcement, transportation, and surveillance operations where mobility and reliability are essential.

Key Features:

  • Connects **4 analog cameras** supporting up to 1080p resolution, facilitating effective monitoring while ensuring high-definition image quality across multiple channels for comprehensive surveillance coverage.
  • Utilizes **H.265 compression technology** to reduce storage space and bandwidth usage by up to 75%, allowing for longer recording times without sacrificing important video quality during surveillance.
  • Features **dual HDD/SSD slots**, which accommodates drives up to 2 TB each, providing substantial storage capacity for extended data retention and ensuring reliability of recorded footage.
  • Designed for **mobile applications**, the compact form factor and rugged construction ensure durability and reliability during use in demanding environments such as vehicles and remote locations.
  • **Real-time GPS tracking** enhances operational efficiency, providing users with precise vehicle positioning within the recorded video stream for improved incident analysis and monitoring.
  • Support for **3G/4G mobile transmission** ensures connectivity for remote access, allowing users to view live footage and recordings from anywhere using mobile applications for comprehensive security management.
  • Built-in **alarm inputs/outputs** enable seamless integration with external alarm systems, allowing for effective incident responses while linking multiple security devices for enhanced security coverage.
  • **User-friendly GUI** simplifies navigation and management, providing intuitive access to video management features, installations, and configurations for both novice and advanced users.

Functions:

Comprehensive Mobile Surveillance:
The DVR supports high-quality recording for a variety of analog cameras, ensuring reliable operation for vehicles or mobile systems deployed across numerous applications.

Intelligent Video Analytics:
Integrated video analytics capabilities facilitate advanced event detection, enhancing overall security management by providing alerts based on defined activity or situations.

Seamless Remote Access:
Users can easily access live streams and recordings from mobile devices using secure application connections, enhancing management flexibility for monitoring at any location.

Efficient Data Management:
Advanced compression techniques reduce the amount of storage required for recordings, optimizing the DVR’s data handling without compromising video quality or integrity.

Rugged Durability:
Built for harsh conditions, this DVR maintains reliable performance in diverse environments, ensuring consistent operation whether in transit or placed in exposed areas.

User-Friendly Systems Integration:
Designed for easy configuration with various systems, the DVR supports multiple protocols and standards, allowing for seamless compatibility with existing surveillance setups.

Operation in Diverse Conditions:
This DVR operates effectively in a wide range of temperatures and environments, ensuring deployment is functional without regard to weather or outdoor conditions.

Technical Specifications

Model DS-MP5604
Channels 4 analog cameras (up to 1080p) and 4 IP cameras (extendable via PoE)
Video Compression H.264/H.265
Resolution Support Up to 1080p for all channels
Storage Capacity Up to 2 TB HDD/SSD and 256 GB SD card
Power Supply Wide voltage range: 9 to 32 VDC
Operating Temperature -10°C to 60°C
Audio Compression G.711/G.722.1
GPS Support Built-in GPS and GLONASS for vehicle tracking
Dimensions Compact design with aluminum die-cast chassis, fanless
