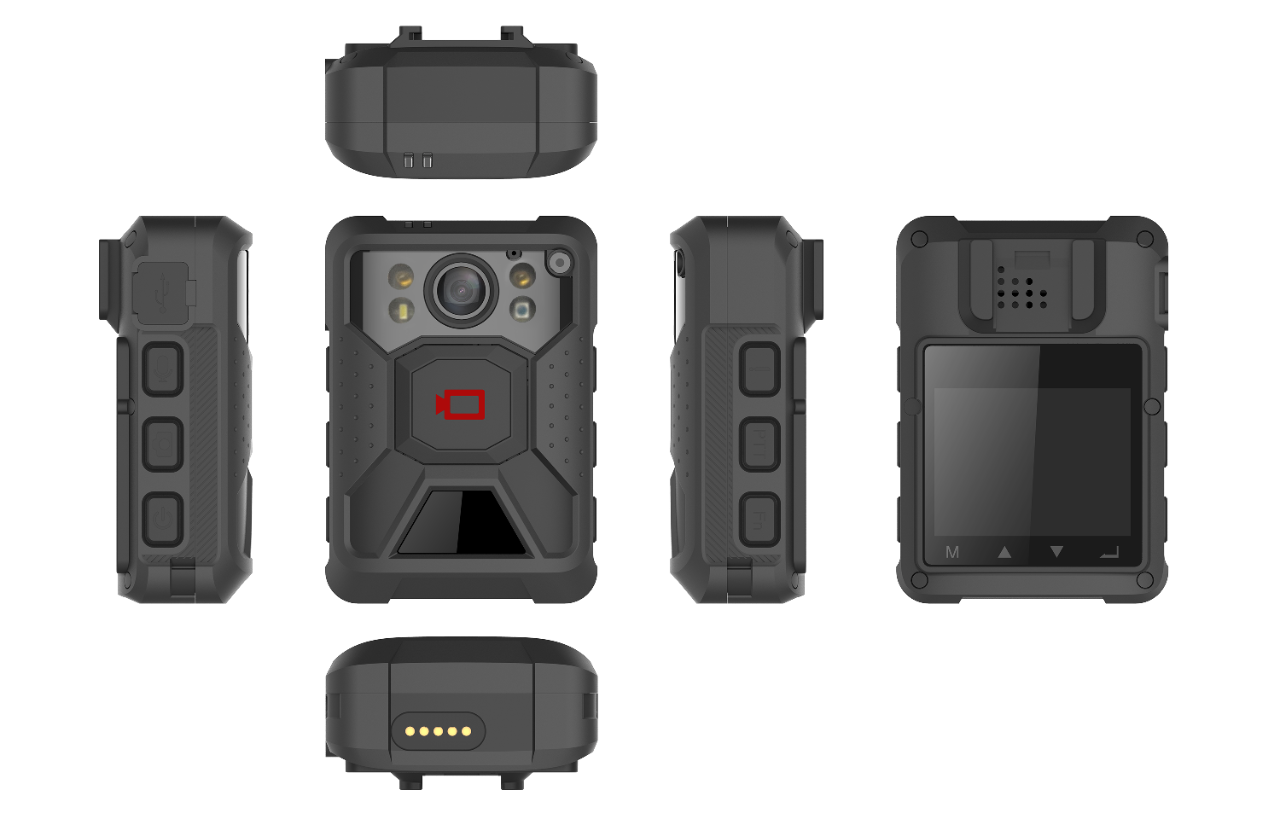

Hikvision DS-MCW407 Ultra Series H265 Wi-Fi & 4G Body Camera

Model: DS-MCW407

Who This Is For

When officer accountability, evidence integrity, and real-time situational awareness are the priorities, the Hikvision DS-MCW407 Ultra Series body camera is built for that operational brief. Designed for security personnel, law enforcement contractors, event security teams, and mobile patrol officers who spend extended hours in the field, this camera combines 4G LTE live streaming with Wi-Fi connectivity and GPS location tagging in a body-worn unit weighing just 159.5 g. The IP68 ingress protection rating and confirmed 2 m drop resistance mean it holds up across demanding environments - from outdoor patrols in rain to high-contact crowd situations. The H.265 compression keeps footage files manageable for evidence storage, while the laser positioning and built-in microphone add operational depth that basic body cameras lack. This is a purpose-built field recording device for professionals who need their footage to hold up under scrutiny.

What This Camera Actually Does

Who Buys This Model

• Mobile Patrol Security Companies: Operators who need officers to stream live footage back to a control room over 4G LTE without relying on fixed Wi-Fi infrastructure across patrol zones.
• Event Security Supervisors: Teams managing large outdoor events where GPS tagging of recorded incidents helps establish officer positions and evidence locations during post-event review or legal proceedings.
• Law Enforcement Contractors and Compliance Officers: Roles requiring accountable, timestamped audio-visual records of interactions, with H.265 compressed footage manageable for long-term evidence storage.
• Asset Protection Personnel in Harsh Environments: Mining site, construction, and industrial security staff who need a body camera that can withstand drops, rain, dust, and temperatures down to -20°C without unit failure.
• Security Supervisors Managing Remote or Dispersed Teams: Managers who need real-time visibility of what field officers are encountering via live 4G streaming to a central monitoring point or mobile device.

Honest Assessment

The DS-MCW407 does a specific job well: it puts 4G LTE live streaming, GPS evidence tagging, and IP68-rated durability into a 159.5 g body-worn unit that runs on Linux and records at 4MP with H.265 compression. That combination is directly useful for mobile security operations where accountability and connectivity away from fixed infrastructure matter. The operating temperature range of -20°C to 55°C and the confirmed 2 m all-sides drop test on cement set it apart from entry-level body cameras that carry durability claims without verified test standards. What it will not do is replace fixed CCTV coverage - there is no wide-angle field overview, no remote PTZ control, and no central recording to an NVR. Organisations needing both body camera and fixed site coverage will require a separate camera system alongside this unit. The DS-MCW407 is available through Security Australia as part of the Hikvision Ultra Series body-worn range.

Before You Buy

Quick Fit Check

• Good match if: Your security officers patrol areas without fixed Wi-Fi and need to stream live footage back to a control room or supervisor via 4G LTE while GPS-tagging every recorded incident for evidence management.
• Good match if: The deployment environment is physically demanding - outdoor patrols in rain, industrial sites, or high-contact situations where IP68 waterproofing and confirmed 2 m drop resistance are necessary, not optional.
• You may need a different model if: Your primary requirement is fixed perimeter or site coverage rather than body-worn recording - a fixed IP camera system with wide-area coverage and NVR storage will serve that need more effectively than a body camera.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a body-worn camera with confirmed 4G LTE live streaming, GPS incident tagging, IP68 protection, and a verified 2 m drop rating for use in demanding field security roles where fixed infrastructure is not available.
• You may need a different model if: Your requirement is fixed perimeter or site surveillance - a PoE IP camera system with NVR recording will provide continuous, wide-angle coverage of a location far more effectively than any body-worn device.
• Pairs well with: A cloud-based video management platform or enterprise body camera management software for evidence archiving, chain of custody management, and multi-officer fleet monitoring.

Common Questions

1. Does this camera require a SIM card to use 4G LTE streaming?

   Yes. The 4G LTE connectivity requires a SIM card with an active data plan to function. The DS-MCW407 supports Wi-Fi for file transfer and configuration without a SIM, but live streaming and remote access in the field depend entirely on an active mobile data connection. Confirm your carrier's coverage at your deployment locations before selecting a data plan.

2. Will this camera work in heavy rain or submersion?

   Yes. The DS-MCW407 carries an IP68 ingress protection rating, which covers full dust exclusion and protection against continuous water submersion beyond 1 m depth. For standard outdoor patrol work in rain, wet conditions, or high-humidity environments up to 90%, the unit is rated to keep operating.

3. What does the GPS tagging actually record alongside the footage?

   The GPS function embeds location coordinates into the recorded footage at the time of capture. This creates a verifiable geographic record tied to each video file - useful for evidence management where the physical location of an incident needs to be established or confirmed during review or legal proceedings.

4. How does H.265 compression affect storage for long shifts?

   H.265 reduces file size by roughly 50% compared to H.264 at equivalent video quality. For a 4MP body camera recording over an 8-10 hour shift, that reduction is significant - it means either more footage fits on the same onboard storage, or upload and transfer times via Wi-Fi at end of shift are faster. The practical benefit is fewer storage bottlenecks during multi-shift operations.

5. What is the drop protection specification and how was it tested?

   The DS-MCW407 is rated to withstand a 2 m drop onto cement, tested twice on each of its 6 sides - a total of 12 drops at full operational height. This is a specific test standard, not a general durability claim. It is confirmed in the product specification data supplied by Security Australia for this model.

6. Does this camera record audio as well as video?

   Yes. The DS-MCW407 has a built-in microphone that records audio simultaneously with video. There is no confirmed built-in speaker on this unit, so two-way audio communication is not a confirmed feature. Audio recording of the ambient environment and officer interactions is confirmed.

7. Will this camera operate in extreme cold or heat?

   Yes. The confirmed operating temperature range is -20°C to 55°C. This makes the DS-MCW407 suitable for cold-climate patrols, alpine environments, and high-temperature industrial sites where consumer-grade electronics would fall outside their rated operating conditions.

8. What does the laser positioning feature do in practice?

   The laser positioning function allows an officer to aim the camera's laser at a specific physical point - a vehicle, object, or location - during recording. This marks the point of interest visually within the footage, adding precision to incident documentation when a specific item or location needs to be clearly identified during evidence review.
