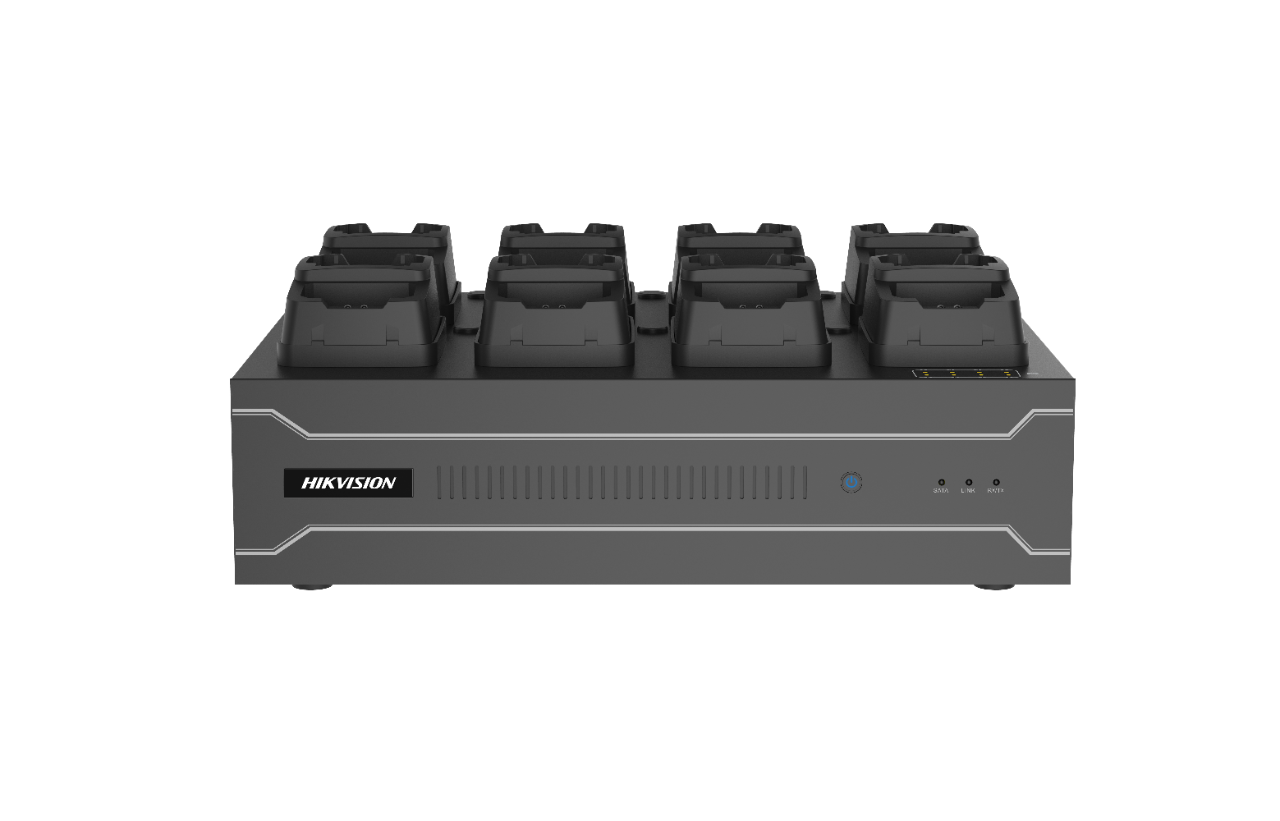

Hikvision DS-MDS001 Desktop 8 ports Dock Station

Model: DS-MDS001

Who This Is For

When managing a fleet of body cameras across a shift-based operation is the priority, the DS-MDS001 addresses the bottleneck that makes multi-camera workflows difficult: getting 8 cameras charged, offloaded, and backed up simultaneously without manual intervention. Designed for law enforcement agencies, security firms, and public safety departments that run body-worn camera programs, this desk-mounted dock station handles simultaneous charging at 5 VDC / 1.5 A per channel, automatic data collection from all connected cameras, and direct upload to local storage or cloud systems. With support for up to 4 internal hard disks at 8 TB each, it is suited to operational environments where evidence retention, chain-of-custody integrity, and shift-readiness are non-negotiable. It connects to Hikvision's HikCentral Pro and HikCentral Master platforms for centralised oversight across multiple sites.

What This Dock Station Actually Does

Who Buys This Model

• Law enforcement units: Agencies running body-worn camera programs that need end-of-shift docking, evidence-grade data offloading, and ANR-protected uploads to meet chain-of-custody requirements.
• Security operations centres: Contract security firms issuing body cameras to multiple officers per shift who need all units recharged and cleared simultaneously before the next deployment.
• Government and corrections facilities: Organisations already running HikCentral Pro or HikCentral Master that need a managed docking solution integrated into their existing platform.
• Evidence and compliance managers: Administrators requiring automated, timestamped data collection from body cameras without relying on individual officers to manually transfer footage.

Honest Assessment

The DS-MDS001 handles the operational workflow that makes body camera programs practical at scale. Charging 8 cameras simultaneously, offloading data automatically at 8 MB/s per channel, and protecting uploads with ANR removes the three most common points of failure in body camera management - dead batteries, missed uploads, and incomplete transfers. The 4-disk bay with cyclic storage means the unit can run continuously without administrator intervention for routine operations. Where the DS-MDS001 has limits: it is designed specifically for Hikvision body cameras within the HikCentral ecosystem and is not a general-purpose NVR or a substitute for a dedicated evidence management server in large-scale deployments requiring full chain-of-custody audit trails. The desk-mounted form factor suits a fixed station or office environment rather than a vehicle or portable install. Available through Security Australia, it is best assessed as part of a broader Hikvision body camera and VMS deployment.

Before You Buy

Quick Fit Check

• Good match if: You are managing a body camera program with shift-based deployment and need automated end-of-shift charging and data offloading for up to 8 cameras without manual file transfers.
• Good match if: Your organisation already uses HikCentral Pro or HikCentral Master and needs a managed docking station that integrates natively into that platform for centralised oversight.
• You may need a different model if: Your program runs more than 8 body cameras per shift cycle - a multi-unit or larger dock configuration will better suit higher-volume deployments. Check the full body camera accessory range on securityaustralia.com.au for expanded capacity options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a managed, automated docking solution for up to 8 Hikvision body cameras with simultaneous charging, automatic data offload, ANR-protected uploads, and native HikCentral integration in a single desk-mounted unit.
• You may need a different model if: Your deployment exceeds 8 cameras per shift cycle or requires a dedicated evidence management server with full audit trail and chain-of-custody logging - a larger dock configuration or a specialist evidence management platform will be more appropriate. Browse the full body camera accessory range on securityaustralia.com.au for alternatives.
• Pairs well with: Hikvision body-worn cameras compatible with the DS-MDS001 dock interface, a managed network switch with VLAN support for isolating body camera traffic, and HikCentral Pro server licences for multi-site management.

Common Questions

1. Does the DS-MDS001 charge and upload data at the same time?

   Yes. Charging and data transfer happen simultaneously once a body camera is docked. Each port delivers 5 VDC at 1.5 A for charging while data uploads at 8 MB/s or better per channel independently. There is no need to choose between charging and offloading - both processes run in parallel across all 8 ports.

2. Do hard disks come included with the dock station?

   No. The DS-MDS001 ships without hard disks. The unit supports up to 4 internal SATA hard disks at a maximum of 8 TB each, giving a potential total of 32 TB. You will need to source compatible HDDs separately and install them before the local storage function is active. Factor your footage retention period into disk sizing before purchase.

3. What happens to uploads if the network drops mid-transfer?

   ANR (Automatic Network Replenishment) handles this automatically. When the network connection is restored, the dock resumes the interrupted transfer from its last checkpoint rather than restarting the upload from scratch. This protects against partial or missing footage records caused by network instability during overnight or high-traffic upload cycles.

4. Will this dock work with non-Hikvision body cameras?

   No. The DS-MDS001 is designed specifically for Hikvision body cameras and integrates with the HikCentral Pro and HikCentral Master platforms. It is not a universal body camera dock and will not manage charging or data offloading for cameras from other manufacturers. Check the compatible body camera models with Security Australia before purchasing.

5. Can footage be reviewed directly on the dock without transferring files to a PC?

   Yes. The DS-MDS001 supports on-dock playback of video, audio, and images through a web browser interface. Chrome 57+ and Firefox 52+ are supported without a plug-in. A built-in speaker enables audio review on-site. This allows supervisors to check footage immediately after docking without needing a separate workstation or file export.

6. What power supply does the DS-MDS001 require?

   The unit runs on 100 to 240 VAC at a maximum draw of 250 W, so it is compatible with standard Australian 240 V mains power with no adaptor required. Given the 250 W maximum draw when all 8 ports are actively charging and transferring, ensure the power circuit it connects to is not already heavily loaded by other high-draw equipment.

7. Can the DS-MDS001 be managed remotely across multiple sites?

   Yes. Integration with HikCentral Pro and HikCentral Master enables remote management of the dock and connected cameras from a centralised platform. Organisations running body camera programs across multiple stations or locations can monitor docking status, upload progress, and storage levels from a single interface without needing physical access to each unit.
