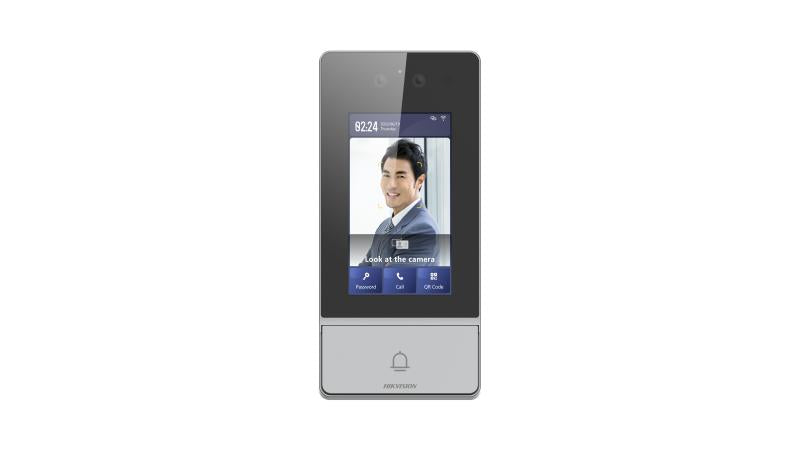

Hikvision DS-KV9503-WBE1 Metal Vandal-resistant Facial Recognition IP Villa Door Station
Metal Vandal-resistant Facial Recognition IP Villa Door Station
The device features a high-definition camera that captures clear images even in low-light conditions, ensuring reliable performance at any time of day. Users can easily communicate with visitors through the built-in intercom system, allowing for seamless interactions without opening the door. Additionally, the door station supports remote access, enabling homeowners to manage entries from their smartphones or tablets. With customizable settings, users can tailor the system to meet their specific security needs. The sleek design complements modern architecture, making it an attractive addition to any villa.
Key Features
- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP camera with IR supplement
- One-touch physical button for easier calls
- Standard PoE power supply
- IK08 & IP65 higher protection level
- Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth
- Call directly to Hik-Connect APP without indoor station
Code/SKU: DS-KV9503-WBE1
Quick Specs:
- FOV: Horizontal: 88°, Vertical: 44°
- Wide Dynamic Range (WDR): Support 120 dB
- Supplement Light: IR light, up to 3 m
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Metal Vandal-resistant Facial Recognition IP Villa Door Station DS-KV9503-WBE1 from Hikvision is designed for enhanced security and convenience in residential settings. Its robust metal construction ensures durability against vandalism and harsh environmental conditions. Equipped with advanced facial recognition technology, it provides quick and accurate identification of visitors, enhancing home security. The device features a high-definition camera that captures clear images even in low-light conditions, ensuring reliable performance at any time of day. Users can easily communicate with visitors through the built-in intercom system, allowing for seamless interactions without opening the door. Additionally, the door station supports remote access, enabling homeowners to manage entries from their smartphones or tablets. With customizable settings, users can tailor the system to meet their specific security needs. The sleek design complements modern architecture, making it an attractive addition to any villa. Overall, the DS-KV9503-WBE1 represents a significant advancement in residential security technology, combining functionality with aesthetic appeal. This device is ideal for homeowners seeking peace of mind and enhanced control over their property's access points.
Features
- Vandal Resistance: Constructed with durable materials to withstand tampering and damage.
- Facial Recognition Technology: Advanced algorithms for accurate and quick identification of visitors.
- High-Definition Video: Offers clear, high-quality video feeds for enhanced monitoring.
- Two-Way Audio: Allows communication between the door station and the resident.
- IP68 Rating: Water and dust resistant, suitable for outdoor use in various weather conditions.
- Wide Viewing Angle: Provides a broad field of view to capture more of the surroundings.
- Remote Access: Supports mobile app integration for remote monitoring and control.
- Multiple Alarm Inputs: Can integrate with existing security systems for enhanced safety.
- User-Friendly Interface: Easy to navigate touch screen for visitors and residents.
- Night Vision Capability: Equipped with infrared technology for clear imaging in low-light conditions.
Technical Specifications
| System Parameters | |
|---|---|
| Operation System | Linux |
| ROM | 4 GB |
| RAM | 1 GB |
| Processor | Embedded high performance processor |
| Display Parameters | |
| Screen Size | 4.3-inch |
| Operation Method | Capacitive touch screen |
| Type | IPS |
| Resolution | 800 × 480 |
| Luminance | 425 cd/m² |
| Video Parameters | |
| Lens | 2 |
| Resolution | 2 × 2 MP |
| FOV | Horizontal: 88°, Vertical: 44° |
| Wide Dynamic Range (WDR) | Support 120 dB |
| Supplement Light | IR light, up to 3 m |
| Video Compression Standard | Main stream and sub stream: H.264 Third stream: H.265 |
| Audio Parameters | |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Compression Standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Bitrate | G.711u, G.711a, Opus: 64kbps; G.722.1, G.726: 32kbps; AAC-LD, AAC-LC: 16kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Metal Vandal-resistant Facial Recognition IP Villa Door Station
The device features a high-definition camera that captures clear images even in low-light conditions, ensuring reliable performance at any time of day. Users can easily communicate with visitors through the built-in intercom system, allowing for seamless interactions without opening the door. Additionally, the door station supports remote access, enabling homeowners to manage entries from their smartphones or tablets. With customizable settings, users can tailor the system to meet their specific security needs. The sleek design complements modern architecture, making it an attractive addition to any villa.
Key Features
- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP camera with IR supplement
- One-touch physical button for easier calls
- Standard PoE power supply
- IK08 & IP65 higher protection level
- Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth
- Call directly to Hik-Connect APP without indoor station
Code/SKU: DS-KV9503-WBE1
Quick Specs:
- FOV: Horizontal: 88°, Vertical: 44°
- Wide Dynamic Range (WDR): Support 120 dB
- Supplement Light: IR light, up to 3 m
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| System Parameters | |
|---|---|
| Operation System | Linux |
| ROM | 4 GB |
| RAM | 1 GB |
| Processor | Embedded high performance processor |
| Display Parameters | |
| Screen Size | 4.3-inch |
| Operation Method | Capacitive touch screen |
| Type | IPS |
| Resolution | 800 × 480 |
| Luminance | 425 cd/m² |
| Video Parameters | |
| Lens | 2 |
| Resolution | 2 × 2 MP |
| FOV | Horizontal: 88°, Vertical: 44° |
| Wide Dynamic Range (WDR) | Support 120 dB |
| Supplement Light | IR light, up to 3 m |
| Video Compression Standard | Main stream and sub stream: H.264 Third stream: H.265 |
| Audio Parameters | |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Compression Standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Bitrate | G.711u, G.711a, Opus: 64kbps; G.722.1, G.726: 32kbps; AAC-LD, AAC-LC: 16kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| User Capacity | 20000 |
| Face Capacity | 10000 |
| Fingerprint Capacity | / |
| Card Capacity | 100000 |
| Message Capacity | / |
| Linked Indoor Station Capacity | 500 |
| Sub Door Station Capacity | 16 |
| Network Parameters | |
| Network Protocol | TCP/IP, RTSP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | Support: 2.0 |
| 3G/4G | / |
| Authentication | Card reading frequency 13.56 MHz |
| Face Recognition Distance | 0.3 to 2 m |
| Face Recognition Accuracy Rate | ≥ 99% |
| Face Recognition Duration | ＜ 0.2 s per person |
| Device Interfaces | |
| Alarm Input | 4 (2 exit buttons and 2 door contacts by default) |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit Button | 2 |
| RS-485 | 1 |
| USB | / |
| Wiegand | / |
| TF Card | Reserved |
| Lock Control | 2 relays, Max. 30 VDC 2 A, lock 2 needs secure module |
| Door Contact Input | 2 |
| General | |
| Button | 1 physical button |
| Installation | Surface mounting |
| Indicator | / |
| Weight | Net weight: 0.405 kg Gross weight: 0.752 kg |
| Protective Level | IP65, IK08 |
| Working Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Working Humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01") |
| Battery | / |
| Power Supply | 12 VDC, 1.5 A, IEEE802.3af, Standard PoE |
| Application Environment | Outdoor |
| Power Consumption | ≤ 6 W |
| Language | English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek |
