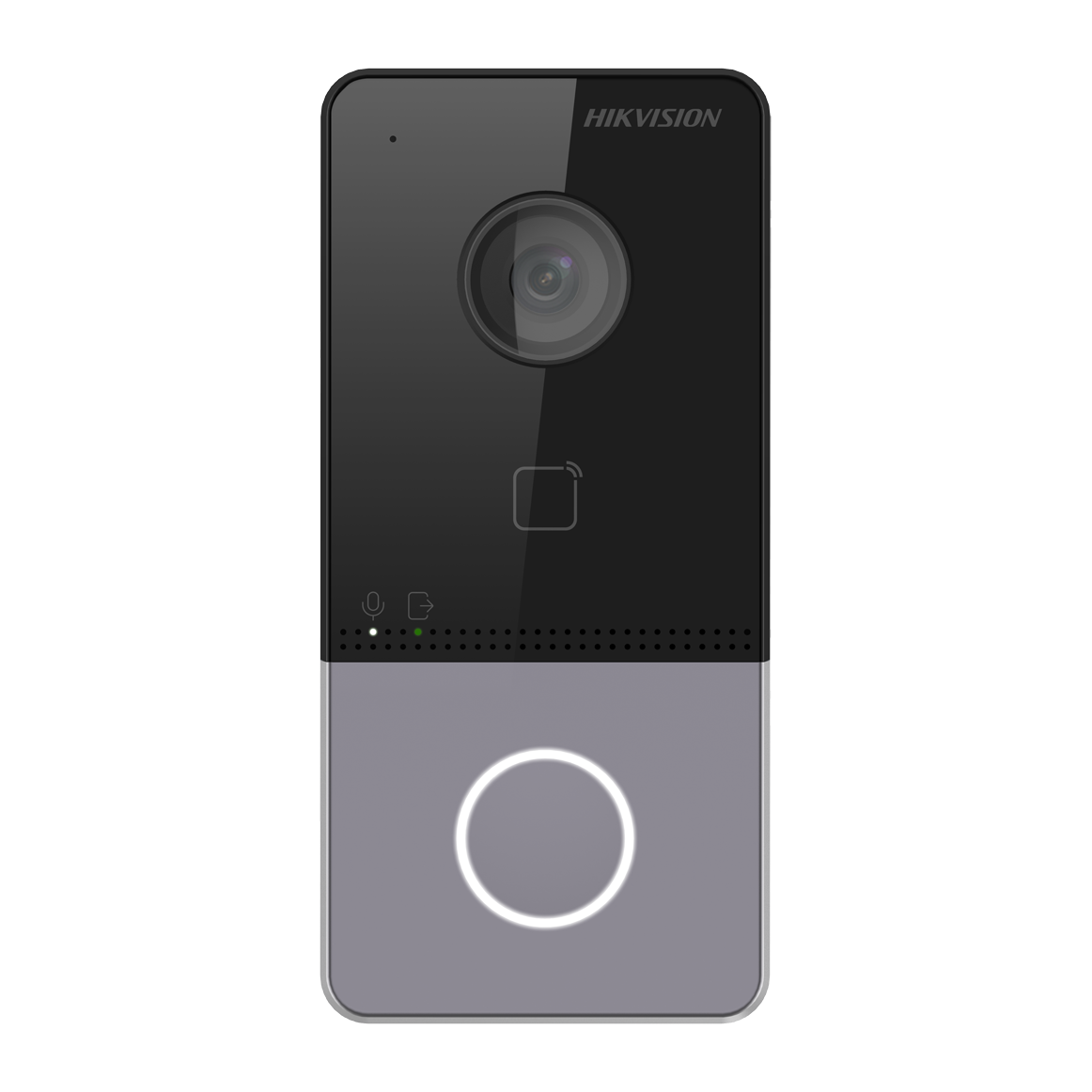

Hikvision DS-KV6113-WPE1 2nd Gen IP Villa Door Station, 1 Button, 2MP, 12VDC/POE, Wi-Fi, Mifare
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
- Support Wifi (Only available in DS-KV6113-WPE1 model), convenient setting up and no wiring required
- Support web configuration
- Nice industry design, IP65, 2 indicator integrated;
- Internal Mifare card reader, 1-ch Indoor station access control;
- Noise suppression and echo cancellation
- 2MP HD Camera with IR supplement
- Standard PoE/ 12 VDC
- System Parameters
- Operation Method Physical button
- Operation System Embedded Linux operation system
- Flash 32MB
- RAM 256MB
- Alarm Parameters
- Tampering Alarm 1
- Network Parameters
- Ethernet 10/100 Mbps Ethernet
- Network Protocol TCP/IP, RSTP
- Wifi 2.4GHz Wi-Fi (Only available in DS-KV6113-WPE1 model)
- Audio Parameters
- Audio Input Built-in omnidirectional microphone
- Audio Output Built-in loudspeaker
- Audio Compression Standard G.711 U
- Audio Compression Rate 64 Kbps
- Audio Quality Noise suppression and echo cancellation
- General
- Power Supply IEEE802.3af, standard PoE 12 VDC
- Indicator 2
- Power Consumption ＜ 10 W
- Dimension (L X W X D) 174 mm × 91 mm × 29 mm
- Installation Surface mounting/ Flush mounting
- Working Temperature -40° C to 53° C(-40° F to 127.4° F)
- Working Humidity 10% to 95%
- Ingress Protection Level IP65
- Video Parameters
- Camera 2MP HD Camera
- Wide Dynamic Range True WDR
- Video Compression Standard H.264
- Resolution Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576
- Night Vision Low illumination IR supplement mode
- Video Streaming Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
- Field Of View Horizontal: 129° Vertical: 75°
- Device Interfaces
- Alarm Input 4
- Button 1
- TF Card Max to 32G
- Relay For Lock 1
- Event
- Motion Detection Support
- Camera Parameters
- BLC Support
- Field Of View Horizontal: 129° Vertical: 75°
- Access Control Parameters
- Internal Card Reader 13.56 MHz Mifare Card Reader
- Device Interfaces
- RS-485 1
