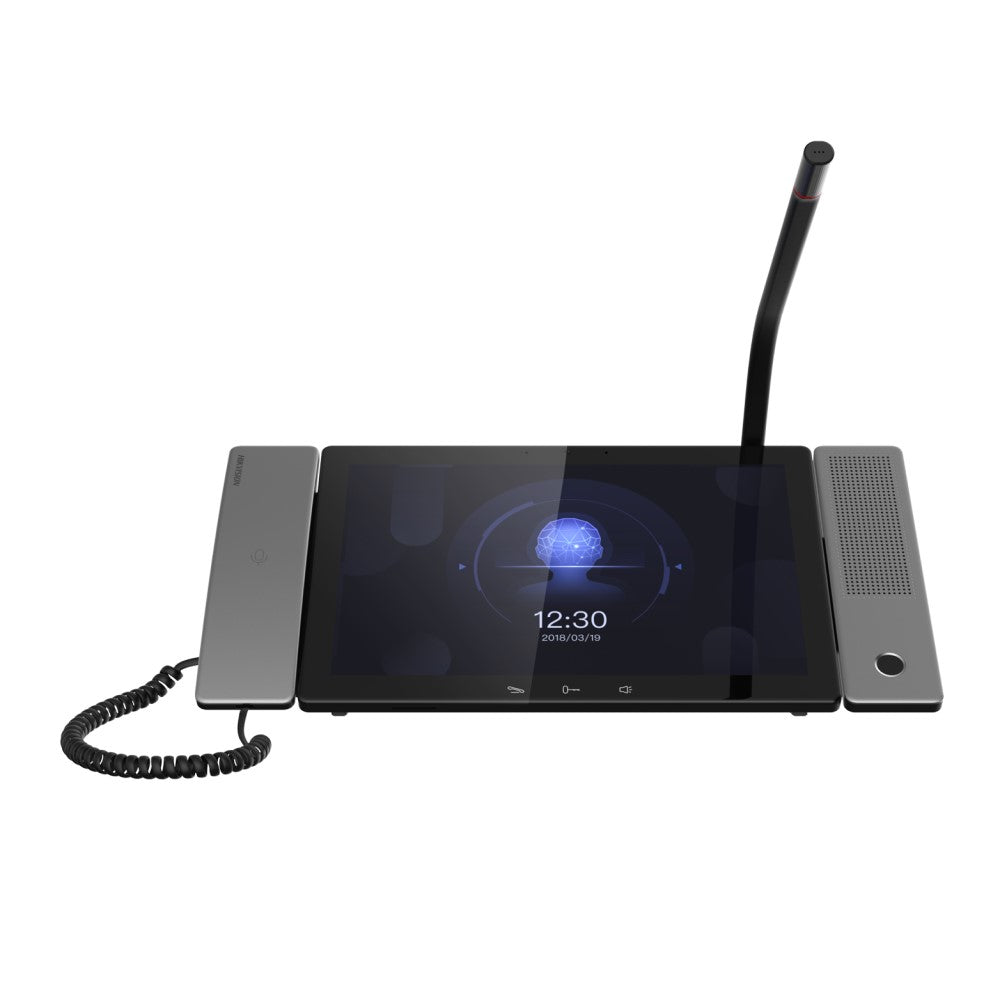

Hikvision DS-KM9503 2nd Gen Concierge Master Intercom Station, 10" Screen, Camera, POE/12VDC

Model: DS-KM9503

Who This Is For

For building managers and concierge staff who need a central command point for a multi-apartment or multi-tenancy intercom system, the Hikvision DS-KM9503 2nd Gen Concierge Master Station delivers a purpose-built 10-inch touchscreen interface designed for front desk and reception environments. It connects directly into a Hikvision video intercom network, letting concierge personnel see, speak with, and grant access to visitors at door stations throughout the building - all from a single fixed workstation. The built-in camera supports two-way video communication with indoor monitors and other stations on the system. Power flexibility via PoE or 12VDC means it can be installed at an existing desk with structured cabling or powered locally, making it practical for both new builds and retrofits into existing Hikvision intercom infrastructure. Strata managers, building developers, and security integrators specifying residential apartment towers or commercial mixed-use buildings are the primary buyers.

What This Station Actually Does

Who Buys This Model

• Strata and Building Managers: Specifying a central operator station for residential apartment towers where concierge staff need to handle visitor calls and door release from a fixed front desk position.
• Security Integrators on New Builds: Installing complete Hikvision 2nd Gen intercom systems across multi-storey residential or mixed-use developments and need a compatible master station to anchor the network.
• Commercial Property Developers: Fitting out lobby reception areas in serviced apartments, hotels, or gated communities where a professional-grade, screen-based concierge station is part of the access management design.
• Retrofit Installers: Upgrading an existing Hikvision intercom deployment to 2nd Gen hardware and replacing an older or smaller master station with the DS-KM9503 for its larger 10-inch display and dual power options.

Honest Assessment

The DS-KM9503 does its core job well: it gives a concierge operator a large, dedicated screen, two-way video capability via its built-in camera, and the power flexibility of PoE or 12VDC - all in a station designed specifically for the master position in a Hikvision apartment intercom system. The 10-inch display is a genuine practical advantage at a busy front desk compared to smaller master stations. It is a product for manned positions - it requires a person to operate it and is not a substitute for automated access control or unattended entry management. It will not function as a standalone device; it requires a compatible Hikvision 2nd Gen intercom network with appropriate door stations and infrastructure. For buildings without a staffed concierge, a software-managed access control approach will be more appropriate. The DS-KM9503 is supplied by Security Australia as part of a broader range of Hikvision intercom and access control hardware.

Before You Buy

Quick Fit Check

• Good match if: You are building or upgrading a Hikvision 2nd Gen intercom system in a multi-apartment or multi-tenancy building and need a manned concierge station with a large touchscreen and video call capability at the front desk.
• Good match if: Your installation location has structured Cat5e or Cat6 cabling already run to the desk and a PoE switch available, making PoE power the simplest deployment option without a local 12VDC adaptor.
• You may need a different model if: The building does not have a staffed concierge position - an automated door station and indoor monitor setup, or a software-managed access control system, will be more appropriate for unstaffed entry management.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a large-screen, manned concierge master station with built-in video capability and flexible PoE or 12VDC power for a Hikvision 2nd Gen apartment intercom deployment.
• You may need a different model if: The building has no permanently staffed front desk - an automated indoor monitor and door station configuration, or a software-managed access platform, will handle unmanned access scenarios more effectively.
• Pairs well with: Hikvision 2nd Gen video door stations, Hikvision 2nd Gen indoor monitors, and a Hikvision video intercom management server or compatible NVR for system-level administration and recording.

Common Questions

1. Will this station work with my existing 1st Gen Hikvision intercom hardware?

   No. The DS-KM9503 is a 2nd Gen platform device and is not cross-compatible with Hikvision's 1st Gen intercom range. Door stations, indoor monitors, and any management server on the same system must also be 2nd Gen hardware. Attempting to mix generations will result in registration and communication failures during commissioning.

2. Does this station support two-way video, or is it audio only?

   Yes, two-way video is supported. The DS-KM9503 has a built-in camera, which enables video calls between the concierge station and compatible door stations or indoor monitors on the network. Both parties can see and speak to each other, provided the connected devices also support video.

3. Can I power the DS-KM9503 over a standard PoE switch port?

   Yes, provided the switch delivers IEEE 802.3af-compliant PoE. The station accepts either PoE via Cat5e or Cat6 Ethernet or a local 12VDC power supply. If using PoE, confirm the switch port output is sufficient - underpowered ports can cause screen instability or prevent the device from booting correctly.

4. How many door stations can the DS-KM9503 manage?

   The number of door stations supported depends on the overall Hikvision 2nd Gen system configuration, including whether a video intercom management server is part of the installation. For large-scale deployments with many door stations and floors, consult the Hikvision system design guidelines and reach out to Security Australia for configuration advice specific to your project scale.

5. Does this station require a separate computer or server to operate?

   No, for basic operation it does not. The DS-KM9503 functions as a standalone master station within the Hikvision intercom network - call handling, door release, and video communication do not require a separate PC. A Hikvision video intercom management server may be added for larger installations requiring centralised administration, recording, or multi-site management, but it is not mandatory for the station to function.

6. Is the DS-KM9503 designed for wall mounting or desk placement?

   The DS-KM9503 is a concierge master station designed for fixed desk or counter placement in a reception or guardhouse environment. It is not a wall-mount indoor monitor. For wall-mounted master station or indoor monitor requirements within the same 2nd Gen ecosystem, a different Hikvision model in the indoor monitor range would be appropriate.

Cabling Considerations

• Cable Type: Cat5e or Cat6 Ethernet for both network connectivity and PoE power delivery in a single run.
• Max Cable Run: Standard Ethernet limits apply - 100 metres maximum for PoE and data over a single Cat5e or Cat6 run. Longer distances require a PoE extender or intermediate switch.
• PoE Notes: IEEE 802.3af-compatible PoE switch or injector required. Confirm port output wattage before installation - underpowered ports may not reliably drive the 10-inch display.
• Wiring Tips: If PoE is not available at the installation location, a local 12VDC power adaptor is the alternative - run a clean, dedicated power circuit to avoid voltage drop issues. Keep the Ethernet run away from high-voltage cabling to prevent interference with the video and audio streams.
