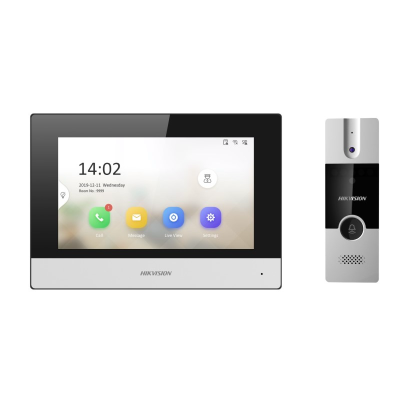

Hikvision DS-KIS302-P Hybrid Intercom Kit, 4 Wire Door & 4-Wire/IP/WiFi Room, 1 to 1, with PSU

Model: DS-KIS302-P

Who This Is For

When retrofitting an intercom into an existing building without pulling new Cat cable is the priority, the DS-KIS302-P is the kit that solves that problem. It pairs a 4-wire analog door station with a hybrid indoor station that accepts 4-wire, wired Ethernet, or Wi-Fi - meaning the indoor unit can connect over whatever infrastructure is already in the wall. Installers working on apartments, small commercial tenancies, or residential builds where conduit is already run with legacy 4-wire cable will avoid the cost and disruption of rewiring. The door station delivers 1080p video with a 66.2-degree horizontal field of view and IR night vision, while the 7-inch touchscreen indoor station gives occupants remote door release and two-way audio. Hik-Connect app integration extends call and unlock functionality to a smartphone, making this kit practical for single-door residential and light commercial entry control.

What This Kit Actually Does

Who Buys This Model

• Electrical contractors retrofitting apartments: Existing 4-wire cable runs can be reused for the door station connection, while the indoor unit connects via the building's Wi-Fi - eliminating the need to run new structured cabling through finished walls.
• Residential property managers: The Hik-Connect app allows tenants to receive door calls and grant access from their smartphone, reducing reliance on the fixed indoor station and improving practical usability.
• Small commercial operators: Businesses with a single controlled entry point - offices, studios, clinics - benefit from the 1080p door camera, IR night vision, and alarm I/O for integration with an electric strike or magnetic lock.
• Installers working on budget-conscious residential builds: The hybrid architecture avoids the cost of a dedicated IP door station and separate PoE infrastructure at the door, while still delivering full app-connected functionality at the indoor unit.

Honest Assessment

The DS-KIS302-P does the hybrid connectivity job well - the ability to mix a 4-wire door station with a Wi-Fi or wired indoor unit is a genuine advantage in retrofit situations where pulling Cat cable to both locations is not practical. The 1080p door camera, IR night vision, 7-inch touchscreen, and Hik-Connect integration are solid at this price bracket. The alarm I/O and RS-485 on the indoor station also give installers more integration options than a purely consumer intercom would. Where this kit reaches its limits: it is a 1-to-1 system designed for a single door and a single indoor station. Multi-door or multi-tenant applications need a different product tier with a dedicated video intercom controller. The door station also runs on 4-wire analog, so picture quality and feature depth at the door will not match a full IP door station. If your site needs keypad, card, or fingerprint access credentials at the door, a different system architecture available through Security Australia will serve that requirement better.

Complete Package Contents

• 1 x Door Station - 4-wire analog, 1080p camera, 66.2° horizontal FOV, IR night vision, built-in microphone and speaker
• 1 x Indoor Station - 7-inch capacitive touchscreen, 4-wire/RJ-45/Wi-Fi connectivity, 2x alarm in, 2x alarm out, RS-485, SD card slot (up to 128GB)
• 1 x Power Supply Unit (PSU)

Before You Buy

Quick Fit Check

• Good match if: You have existing 4-wire cable already run to the door position and want to avoid rewiring - the hybrid architecture means the door station uses that existing cable while the indoor unit connects over Wi-Fi or Ethernet.
• Good match if: Occupants need smartphone-based door answering - Hik-Connect app integration allows remote call pickup, live video view, and door release without being physically at the indoor station.
• You may need a different model if: Your site has multiple entry points, more than 1 indoor station, or requires credential-based access (card, PIN, or fingerprint) at the door - a full IP video intercom system with a dedicated controller will be the appropriate product type.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need to reuse existing 4-wire cable at the door while still getting app-based remote access, 1080p video, and electric lock integration in a single-door, single-indoor-station configuration.
• You may need a different model if: Your site has more than 1 door station or requires multiple indoor stations - a full IP video intercom system with a dedicated distribution switch or controller will be the appropriate product type for that topology.
• Pairs well with: A PoE switch (if powering the indoor station via Ethernet) or a compatible electric strike or magnetic lock connected to the alarm output terminals for door release.

Common Questions

1. Does the DS-KIS302-P work without running new Cat cable to the door?

   Yes. The door station uses a 4-wire analog connection, so existing 4-wire cable already installed in the wall can be reused. The indoor station then connects to your network via Wi-Fi or a separate Ethernet cable - meaning neither run needs to be Cat5e or Cat6.

2. Can I answer the door from my phone when I am not home?

   Yes. The Hik-Connect app on iOS or Android receives door call notifications, displays live video from the door station camera, allows two-way audio communication, and can trigger a remote door release - all from outside the premises provided the indoor station has an active internet connection.

3. Will this kit work with my existing electric strike or magnetic lock?

   Yes, provided the lock is compatible with a dry contact relay output. The indoor station provides 2 alarm outputs which can be configured for door release. Confirm the voltage and current rating of your lock against the indoor station output spec before wiring - and check whether your lock requires a 12V or 24V supply, which will need to be sourced separately if not already available.

4. Does the indoor station need a separate power supply, or can it run on PoE?

   Both options are supported. The indoor station accepts IEEE 802.3af standard PoE over the RJ-45 Ethernet port, drawing a maximum of 6W. If you are not connecting via Ethernet, the included PSU provides 12V DC power via the dedicated power input. You do not need both - use whichever matches your cabling plan.

5. How much local storage does the system support, and does it need a cloud subscription?

   No cloud subscription is required for local storage. The indoor station accepts a microSD card up to 128GB (SD 2.0 standard or lower) for local visitor snapshot and video storage. SDXC or UHS-I cards are not compatible. Security Australia stocks this kit as a standalone solution - there is no mandatory recurring fee to use the core call, video, and door release functions.

6. Can I expand this system to cover a second door or add more indoor stations later?

   Limited expansion is possible - the indoor station has 2 four-wire interfaces, so a second door station can be connected. However, the DS-KIS302-P is designed as a 1-to-1 system, and multi-tenant or multi-indoor-station configurations are not supported in this kit's standard architecture. Sites requiring that level of scalability should look at a full IP video intercom system with a dedicated controller.

7. Does the door station camera work at night without external lighting?

   Yes. The door station is fitted with infrared LEDs that activate in low-light conditions, allowing the 1080p camera to capture usable video of visitors at the entry point without any external lighting. IR illumination is monochrome - colour video requires adequate ambient or artificial light at the door.

Cabling Considerations

• Door Station Cable: 4-wire (4-core) cable connects the door station to the indoor station. Existing 4-wire cable runs from a previous intercom installation can be reused if they are in good condition.
• Indoor Station Network Cable: Cat5e or Cat6 to the RJ-45 port if using wired Ethernet or PoE power. Not required if the indoor station is connecting via Wi-Fi and powered by the included 12V DC PSU.
• Max Cable Run: Not specified by manufacturer for the 4-wire connection - consult Hikvision installation documentation for your specific cable gauge and run length before finalising the design.
• PoE Notes: IEEE 802.3af standard PoE only for the indoor station. Maximum draw is 6W. A PoE injector or PoE-capable switch port is sufficient - PoE+ is not required.
• Lock Wiring: Electric strike or magnetic lock connects to the alarm output terminals on the indoor station. The lock's power supply (12V or 24V DC) must be supplied separately - the alarm output provides a dry contact relay signal, not lock power.
