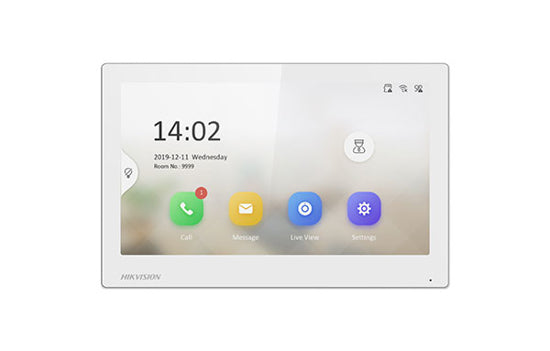

Hikvision DS-KH6350-WTE1 Gen2 IP-Based 7 inch Indoor Intercom Station Wifi
KH6 Series IP-Based Indoor Station
The KH6 series IP indoor station is a smart device designed for enhanced video and audio communication. It features a 7-inch touchscreen and operates on an Android system, offering smooth interactivity. One of its key innovations is that it simplifies the deployment process, eliminating the need for additional devices or configurations, which helps to save both time and cost.
With this device, users can remotely manage visitors by viewing, chatting with them, and granting access through their mobile phones, regardless of their location. Additionally, the KH6 series can integrate with other control systems such as CCTV and elevator control systems, adding a layer of versatility and security to building management.
Key Features
- 7-inch TFT touch screen with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
Code/SKU: DS-KH6350-WTE1
Quick Specs:
- Operation Method: Capacitive touch screen
- Type: Colorful TFT
- Resolution: 1024 × 600
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The KH6 Series IP-Based Indoor Station DS-KH6350-WTE1 by Hikvision is a modern video intercom system designed for efficient indoor security and communication. It features a 7-inch TFT touch screen with a resolution of 1024 x 600 pixels, providing a clear and user-friendly interface. With built-in Wi-Fi and PoE support, it allows easy setup and integration with other devices. Users can remotely manage access, view live video feeds, and communicate through the Hik-Connect mobile app. Additionally, it supports message storage, picture capturing, and remote door unlocking, making it a comprehensive solution for residential or commercial properties.
Features
- 7-inch TFT Capacitive Touch Screen: Features a 1024 x 600 resolution for clear visuals and easy navigation.
- Remote Control via Hik-Connect App: Allows for remote door unlocking, live viewing of cameras, and call reception.
- Integration with Alarm System: Supports alarm linkage, enabling the device to receive and respond to alarms in real time.
- Supports Wi-Fi and Ethernet: Offers connectivity via 2.4 GHz Wi-Fi (IEEE802.11 b/g/n) or a wired network connection (RJ45).
- Multiple Communication Protocols: Includes support for TCP/IP, SIP, and RTSP, making it highly versatile for different setups.
- Voice Message Capability: Automatically stores voice messages when there's no response from the indoor station.
- PoE (Power over Ethernet): Simplifies installation by providing both power and network connectivity through a single cable.
- Alarm Input/Output: Equipped with 8 alarm inputs and 2 alarm outputs for enhanced security integration.
- Expandable Storage: Supports up to 128 GB of storage via a TF card for saving pictures, video, and alarm records.
- Elevator Control: Can control access to elevators, enhancing security in multi-floor buildings
Technical Specifications
| General | |
|---|---|
| Button | / |
| Installation | Wall mounting, table mounting |
| Indicator | / |
| Weight | Net weight: 355 g (0.8 lb) Gross weight: 683 g (1.5 lb) |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83") |
| Battery | / |
| Application environment | Indoor |
| Power consumption | ≤ 5 W |
| Language | English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Chinese Traditional |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
KH6 Series IP-Based Indoor Station
The KH6 series IP indoor station is a smart device designed for enhanced video and audio communication. It features a 7-inch touchscreen and operates on an Android system, offering smooth interactivity. One of its key innovations is that it simplifies the deployment process, eliminating the need for additional devices or configurations, which helps to save both time and cost.
With this device, users can remotely manage visitors by viewing, chatting with them, and granting access through their mobile phones, regardless of their location. Additionally, the KH6 series can integrate with other control systems such as CCTV and elevator control systems, adding a layer of versatility and security to building management.
Key Features
- 7-inch TFT touch screen with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
Code/SKU: DS-KH6350-WTE1
Quick Specs:
- Operation Method: Capacitive touch screen
- Type: Colorful TFT
- Resolution: 1024 × 600
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| System parameters | |
|---|---|
| Operation system | Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded high performance processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Video parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide dynamic range (WDR) | / |
| Video compression standard | / |
| Focal length | / |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711U, G.711A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Message capacity | TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Network parameters | |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | / |
| 3G/4G | / |
| Zigbee | / |
| Device interfaces | |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 RS-485 (Half duplex) |
| USB | / |
| TF card | Support TF card, up to 128 G |
| Alarm output | 2 |
| Lock control | 2 relays, Max. 30 VDC 0.3 A |
| General | |
| Button | / |
| Installation | Wall mounting, table mounting |
| Indicator | / |
| Weight | Net weight: 355 g (0.8 lb) Gross weight: 683 g (1.5 lb) |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83") |
| Battery | / |
| Application environment | Indoor |
| Power consumption | ≤ 5 W |
| Language | English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Chinese Traditional |
