Two wire indoor stations

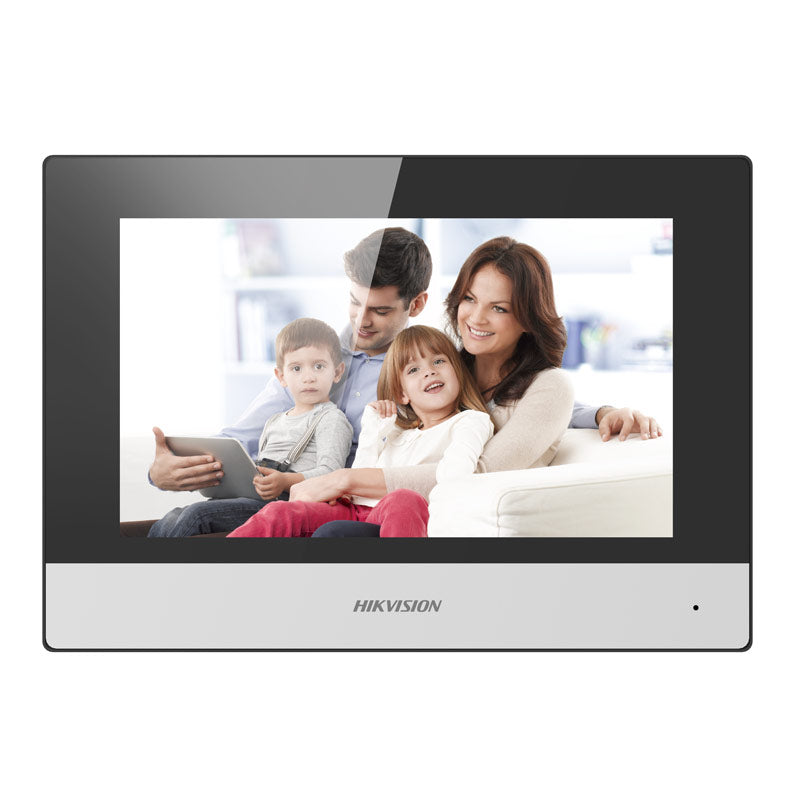

The DS-KH6320Y-WTE2 is an advanced two-wire indoor station designed for seamless communication and control within security systems. Featuring a sleek and modern design, it complements any interior decor while providing high-definition video and audio quality. The device supports a wide range of functionalities, including video intercom, door control, and alarm integration, ensuring comprehensive security management. Its 7-inch touchscreen display offers intuitive navigation, making it user-friendly for residents and visitors alike.
Key Features
Code/SKU: DS-KH6320Y-WTE2
Quick Specs:
| System Parameters | |
|---|---|
| Operation System | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded processor |
| Display Parameters | |
| Screen Size | 7-inch |
| Operation Method | Capacitive touch screen |
| Type | TFT |
| Resolution | 1024 × 600 |
| Video Parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide Dynamic Range (WDR) | / |
| Video Compression Standard | / |
| Focal Length | / |
| Audio Parameters | |
| Audio Input | Built-in omnidirectional microphone |
| Audio Compression Standard | G.711 U, G.711 A |
| Audio Output | Built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Message Capacity | 200 captured pictures (with TF card); 200 alarm records |
| 2 MB RAM (without TF card) | reserved for events |
| Notice Capacity | 200 |
| Linked Network Camera Capacity | 16 |
| Linked Indoor Extensions Capacity | 16 |
| Linked Doorphone Capacity | 17 IP doorphones Max. |
| Network Parameters | |
| Network Protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | / |
| 3G/4G | / |
| Zigbee | / |
| Device Interfaces | |
| Alarm Input | 8-ch alarm inputs |
| TAMPER | / |
| RS-485 | 1 |
| USB | / |
| TF Card | Max to 128 GB, SD 2.0 or lower version |
| Alarm Output | 2 relays (30 V Max.) |
| Lock Control | 2 relays, Max. to 30 VDC, 0.3 A |
| Two-Wire IP Interface | 1 |
| General | |
| Button | / |
| Installation | Surface mounting |
| Indicator | / |
| Weight | Net weight: 0.325 kg Gross weight: 0.650 kg |
| Protective Level | / |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93") |
| Battery | / |
| Power Supply | Powered by KAD704Y or KAD706Y series distributor |
| Application Environment | Indoor |
| Power Consumption | ≤ 4 W |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-KH6320Y-WTE2 Gen2 2WIRE Video Intercom 7-Inch Touch Screen Indoor Room Station WIFI
The DS-KH6320Y-WTE2 is a sophisticated two-wire indoor station designed for seamless communication and enhanced security in residential and commercial settings. Featuring a high-resolution touchscreen, it offers an intuitive user interface that allows for easy navigation and control of various intercom functions. The device supports two-wire installation, simplifying the setup process and reducing installation costs. With built-in video and audio capabilities, users can communicate with visitors and monitor entry points effectively. Additionally, it integrates with Hikvision's video surveillance systems, providing a comprehensive security solution. The DS-KH6320Y-WTE2 also supports remote unlocking, enhancing convenience for users. Its sleek design fits well into modern interiors, while the robust build ensures durability. Users can customize settings and manage notifications easily through the user-friendly interface. This indoor station exemplifies Hikvision's commitment to innovation in smart home technology. Overall, the DS-KH6320Y-WTE2 stands out as an essential tool for enhancing security and communication in any environment.
Features
| Weight | Net weight: 0.325 kg Gross weight: 0.650 kg |
| Protective Level | / |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93") |
| Battery | / |
| Power Supply | Powered by KAD704Y or KAD706Y series distributor |
| Application Environment | Indoor |
| Power Consumption | ≤ 4 W |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak |
