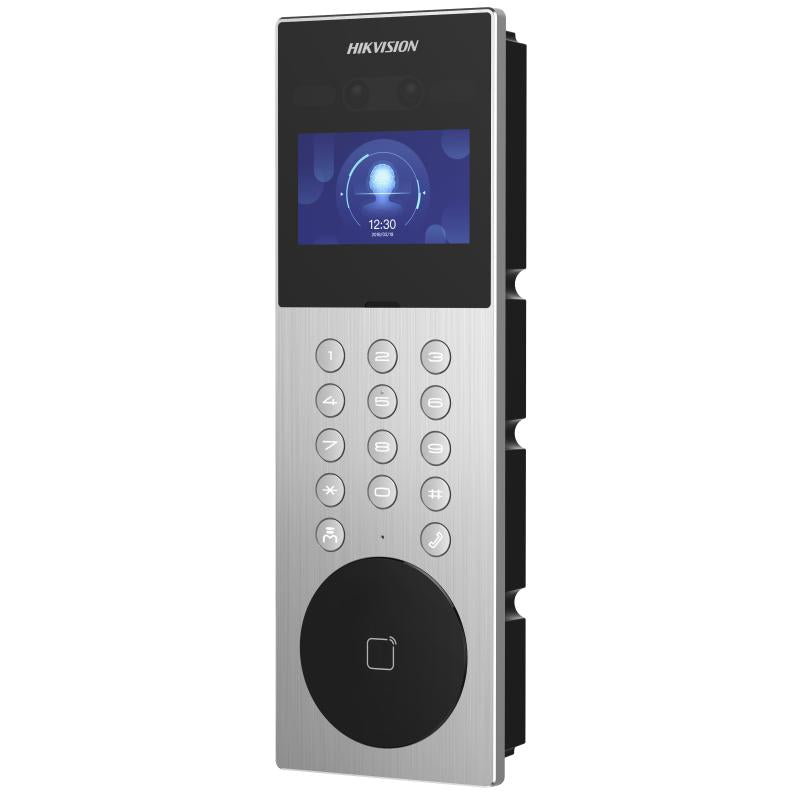

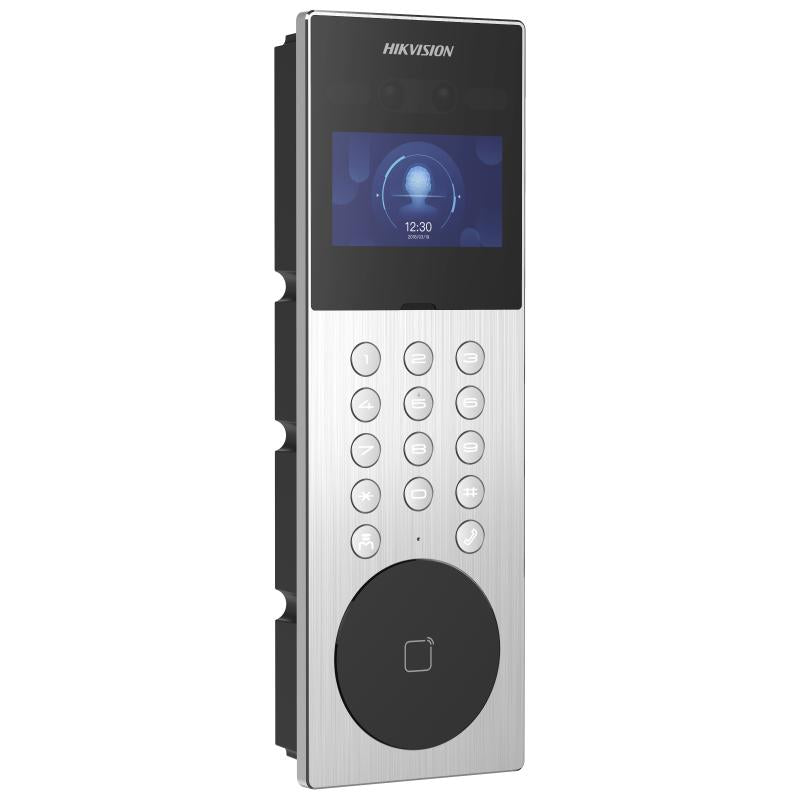

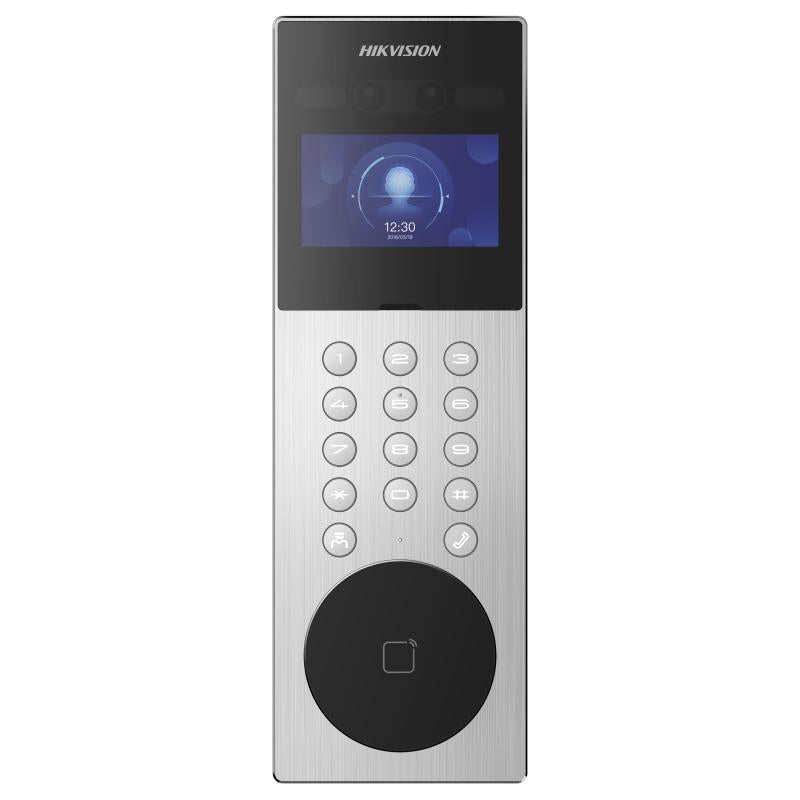

Hikvision DS-KD9203-ME6 IP Video Intercom Door Station Dual 2MP Cameras, Face & Card Access, 4.3″ Screen

Model: DS-KD9203-ME6

Who This Is For

Property managers specifying access control for multi-tenant residential buildings, mixed-use developments, or secure commercial premises will find the DS-KD9203-ME6 addresses two common entry problems at once: identity verification and visitor communication. This modular door station pairs dual 2MP cameras with a built-in face recognition engine and card reader, so residents and authorised staff can be granted hands-free or card-tap entry while visitors are handled through two-way IP video intercom. The 4.3-inch screen on the station face provides clear on-device feedback for users during the authentication process. The modular construction makes it suited to new installations where the door station needs to fit a specific panel or wall frame configuration. It suits strata managers, building developers, and security integrators specifying a unified entry solution that handles both access control and visitor management from a single door-mounted unit.

What This Intercom Actually Does

Who Buys This Model

• Strata and Building Managers: Specifying a single door station that handles resident face recognition, card access, and visitor intercom calls without requiring separate hardware for each function.
• Security Integrators on Multi-Tenant Projects: Using the modular platform to build flush-mounted entry panels customised to each building's lobby layout and tenant count.
• Commercial Property Developers: Installing at controlled entry points for offices or mixed-use buildings where staff use face or card access and visitors are handled through IP intercom to a reception station.
• Aged Care and Healthcare Facilities: Where hands-free face recognition entry reduces contact points and card access provides straightforward credential control for staff across multiple entry doors.

Honest Assessment

The DS-KD9203-ME6 does well at consolidating three access functions - face recognition, card reading, and IP video intercom - into one door-mounted unit without requiring separate readers or cameras bolted alongside it. The dual 2MP cameras give it a better chance of capturing a clean facial image than a single wide-angle lens, and the modular format is a genuine advantage when the entry panel design is a project requirement rather than an afterthought. The on-station screen reduces confusion at the door for first-time users. Where it will not suit: standalone residential homes or small premises that do not need face recognition or multi-tenant intercom routing will find this unit over-specified and unnecessary. Very high-security environments requiring ANPR, thermal detection, or ONVIF-agnostic third-party integration may need a different platform. The DS-KD9203-ME6 is supplied by Security Australia and is best specified as part of a planned Hikvision intercom and access control system rather than as an isolated addition.

Before You Buy

Quick Fit Check

• Good match if: You are equipping a multi-tenant residential or commercial entry where residents need hands-free face recognition access and visitors need to call through to an indoor monitor or guard station from the same unit.
• Good match if: Your installation uses a Hikvision modular door station frame and you need a combined dual-camera, card reader, intercom, and display module to fill a primary entry slot.
• You may need a different model if: Your entry point only needs single-credential access (card or PIN only) with no intercom requirement - a dedicated access control reader without a built-in screen and dual cameras will be a more cost-appropriate fit; Security Australia stocks standalone Hikvision access readers suited to those simpler applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single door station that combines dual 2MP cameras, face recognition, card access, and IP video intercom in a modular format suited to a purpose-built entry panel.
• You may need a different model if: Your project requires only video intercom with no face recognition or card access - a standard single-camera video door station without the recognition hardware will be more cost-appropriate and is available in the Hikvision intercom range.
• Pairs well with: Hikvision IP indoor monitors, Hikvision access control management platforms (such as AX or MinMoe series), and PoE network switches with sufficient port wattage for door station hardware.

Common Questions

1. Does the DS-KD9203-ME6 work as a standalone unit or does it need a frame?

   It requires a compatible Hikvision modular door station frame to complete the installation. The DS-KD9203-ME6 is a modular unit designed to slot into Hikvision's flush-mount or surface-mount frame system. The frame is not included and must be ordered separately. Confirm the frame model matches your planned panel layout - single module or multi-module - before installation.

2. Will face recognition work in low-light or night-time conditions at the entry?

   Yes, to the extent the dual cameras can capture a usable face image. The station's cameras support night vision, but face recognition accuracy is directly affected by the quality of facial illumination at the door. Installing adequate entry lighting will significantly improve recognition reliability in low-light conditions rather than relying on IR illumination alone for face capture at close range.

3. What card type does the DS-KD9203-ME6 read?

   The unit reads IC cards compatible with the Hikvision access control platform. This covers standard Mifare-format cards used across the Hikvision access control range. Third-party card formats outside this standard are not confirmed as compatible, and cards should be issued and managed through the Hikvision access control management system connected to the door station.

4. Can visitors call directly to a resident's apartment or mobile phone?

   Yes. The DS-KD9203-ME6 initiates IP video intercom calls that route to Hikvision indoor monitors assigned to individual apartments or to mobile devices running compatible Hikvision software. The routing configuration is managed through the intercom platform, and the building's apartment directory determines which units a visitor can call from the door station.

5. Does this door station require a dedicated power supply or does it run on PoE?

   It operates on PoE, so a single Cat5e or Cat6 cable from a PoE-capable switch delivers both network connectivity and power to the door station. No separate power cabling to the door is required. Confirm your switch or PoE injector provides adequate wattage for the unit, as the dual cameras and display draw more power than a standard single-camera intercom station.

6. Where do face recognition profiles get enrolled and managed?

   Enrolment is managed through the connected Hikvision access control platform or compatible NVR with face recognition management capability - not from the door station itself. Each resident or staff member's face profile is enrolled centrally and pushed to the door station. This means a management server or NVR running Hikvision's access control software is a required part of the system. Security Australia stocks compatible Hikvision access control management hardware for complete system builds.

7. Does this unit support two-way audio for intercom calls?

   Yes. The DS-KD9203-ME6 includes both a built-in speaker and a built-in microphone, enabling full two-way audio during video intercom calls. Visitors can speak to residents or staff at the indoor monitor or mobile device, and residents can respond before deciding whether to release the door.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for future-proofing on longer runs or multi-module panel installations.
• Max Cable Run: Up to 100 metres from PoE switch to door station on a single cable run without an extender.
• PoE Notes: Requires a PoE-capable switch port or PoE injector. Confirm the switch delivers adequate wattage for the dual-camera, screen, and recognition hardware load before finalising your switch specification.
• Wiring Tips: On new builds, sleeve all Cat6 cable runs inside conduit before wall finishing is complete, particularly at the door frame where cable routing is difficult to retrofit. If the door station is installed in an outdoor or semi-exposed location, ensure the cable entry point is properly sealed against moisture ingress at the frame rear.
