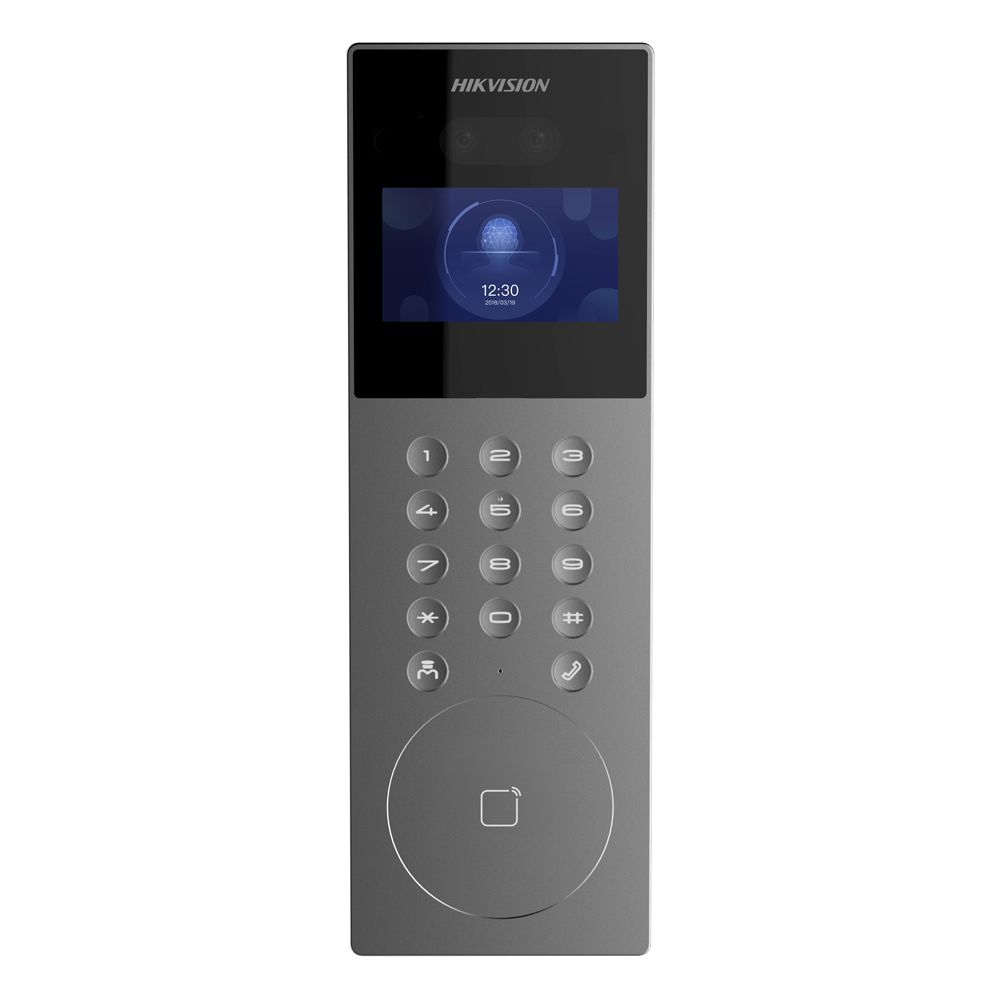

Hikvision DS-KD9203-E6 2nd Gen IP Apartment Door Station & Face Reader, IP65, 12VDC

Model: DS-KD9203-E6

Who This Is For

For integrators and building managers who need a single flush-mount door station to handle video calling, face recognition, and card access in one unit - the Hikvision DS-KD9203-E6 2nd Gen IP Apartment Door Station is built for residential apartment blocks and multi-tenancy buildings where a clean, surface-minimal entry point is required. The IP65-rated housing handles outdoor lobbies and undercroft entries without additional weatherproofing, while the anti-spoofing algorithm adds a layer of protection against photo or mask-based bypass attempts. With capacity for 10,000 users, 5,000 stored faces, and 50,000 cards, this unit scales comfortably across large apartment developments. It suits specifiers working on new builds or upgrades where the brief calls for touchless entry, visitor video calling, and integration into a Hikvision IP intercom system via a standard Ethernet connection.

What This Intercom Actually Does

Who Buys This Model

• Apartment Building Developers: New residential developments specifying a flush-mount door station that handles face recognition, card access, and video calling in a single device - reducing the number of separate systems at the main entry.
• Building Managers Upgrading Older Systems: Sites moving away from older analogue intercom systems to IP-based infrastructure, where Mifare card compatibility means existing resident credentials can often carry over.
• Hikvision Intercom Integrators: Installers already working within the Hikvision IP intercom ecosystem who need a door station with onboard face recognition and anti-spoofing for higher-security lobby entries.
• Aged Care and Student Accommodation Operators: Facilities requiring touchless entry for residents with limited dexterity, where face recognition removes the need to present a card or enter a PIN at the door.

Honest Assessment

The DS-KD9203-E6 does several things well in one unit: face recognition with anti-spoofing, Mifare CSN card reading, two-way video calling, and dual relay control. The 50,000 card and 10,000 user capacity means it comfortably covers large apartment blocks without needing a separate access controller at the front door. IP65 protection removes the need for additional housing at exposed entries, and the flush-only mount produces a clean finish in finished lobby walls. The audio processing with noise suppression is a practical advantage in hard-surfaced lobby environments where echo and background noise typically degrade call quality. Where this unit will not fit is in surface-mount-only installations - it requires a cavity or conduit void behind the wall for flush mounting. It also will not suit sites needing DESFire EV1 or EV2 card compatibility, as confirmed card support is Mifare CSN only. Available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are installing at an apartment block where residents need touchless face-recognition access and the wall allows for flush mounting with a cavity behind - the IP65 housing and 5,000 face capacity cover most mid-to-large residential entry points.
• Good match if: Your site already uses Mifare CSN credentials for other access points - the 50,000 card capacity means the existing card stock can typically be enrolled without replacing credentials building-wide.
• You may need a different model if: The installation is surface-mount only with no wall cavity, or if the site requires DESFire EV1/EV2 card compatibility - a different door station model with surface-mount bracket support and broader card reader compatibility would be more appropriate for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need face recognition with anti-spoofing, Mifare CSN card access, and two-way video calling in a single flush-mount IP door station rated to IP65 - with capacity to manage 10,000 users at the device level.
• You may need a different model if: The installation requires surface mounting with no wall cavity, DESFire EV2 card compatibility, or a larger integrated touchscreen for building directory navigation - a door station model with broader mount options and card reader compatibility would suit those requirements better.
• Pairs well with: A compatible Hikvision IP indoor monitor or mobile app client for resident call answering, a Hikvision video intercom management server for large-scale face enrolment, and a 12V DC regulated power supply rated above 13W at the entry point.

Common Questions

1. Does the DS-KD9203-E6 support PoE, or does it need a separate power supply?

   No. The DS-KD9203-E6 requires a 12V DC power supply - it does not support PoE. A dedicated 12V DC supply must be run to the door station location in addition to the Ethernet data cable. With 13W power consumption, ensure the supply is rated to deliver adequate current, particularly if other devices share the same supply circuit.

2. Will this door station work with DESFire or HID cards?

   No. The confirmed card compatibility is Mifare CSN only. Sites using DESFire EV1, DESFire EV2, or HID iCLASS credentials will need a different door station model with a reader that supports those card types. Mifare CSN is widely used in Australian apartment and strata developments, but confirm your credential type before specifying this unit.

3. What does the anti-spoofing algorithm actually do?

   It adds a layer of liveness detection to the face recognition process to reject attempts to unlock the door using a printed photograph or a flat image on a screen. The DS-KD9203-E6 uses this algorithm to improve the integrity of facial verification at the entry point, reducing the risk of unauthorised access via basic face-spoofing methods.

4. Can the DS-KD9203-E6 be surface-mounted?

   No. The unit is flush-mount only. A cavity must be available behind the wall to accommodate the housing depth and cable entry. If the installation surface is a solid concrete or brick wall with no void, a surface-mount enclosure accessory or a different door station model with a surface-mount bracket option would be required.

5. How many faces, cards, and users can be stored on the device itself?

   The device stores 5,000 faces, 50,000 cards, and supports 10,000 users. These are onboard capacities, meaning the door station can operate access decisions locally without relying on a server for every transaction - relevant for sites where network availability at the entry point may be intermittent.

6. Does the camera on this door station handle backlit conditions at outdoor entries?

   Yes. The 1080P camera includes Wide Dynamic Range, which compensates for high-contrast scenes where bright outdoor light is behind the visitor. Without WDR, daytime entries facing the sky or direct sunlight can produce silhouetted or overexposed images that make face recognition unreliable. The built-in infrared LED also maintains usable image quality after dark.

7. What system software do I need to manage face enrolment across a large building?

   For large-scale deployments, a compatible Hikvision video intercom management platform or VMS with intercom module is required to bulk-enrol faces and manage user credentials across the full 10,000 user capacity. The web-based interface on the unit handles smaller-scale configuration directly, but centralised enrolment for a large apartment block requires a server-side management tool. Confirm software compatibility with your specific Hikvision platform version before deploying - the team at Security Australia can advise on compatible management options.

8. Will this door station work as a standalone unit without a Hikvision indoor monitor?

   Partially. The DS-KD9203-E6 can operate its face recognition and card access functions independently - residents can unlock the door without an indoor monitor being present. However, the video calling function requires a compatible indoor monitor or a Hikvision mobile client configured on the building's intercom system. Without a connected monitor or app, visitors cannot reach residents by pressing a call button.

Cabling Considerations

• Data Cable: Cat5e or Cat6 Ethernet to the RJ45 port on the door station. Standard 100m maximum run applies for 100Mbps network connectivity.
• Power Cable: Separate 12V DC power run required - the unit does not accept PoE. Use appropriately rated low-voltage DC cable sized for the 13W load and the cable run distance to minimise voltage drop.
• Relay Wiring: 2 relay outputs for door or gate control. Run suitable cable from each relay output terminal to the corresponding electric strike, magnetic lock, or gate controller. Confirm relay voltage and current ratings match your lock hardware before wiring.
• Wiring Tips: Because this is a flush-mount-only unit, all cables must enter from behind the wall. Plan conduit paths before wall finishing. Where wall depth is limited, confirm the door station back-box depth requirement against the available cavity. Keep the 12V DC power cable run as short as practical to maintain voltage at the unit under load.
