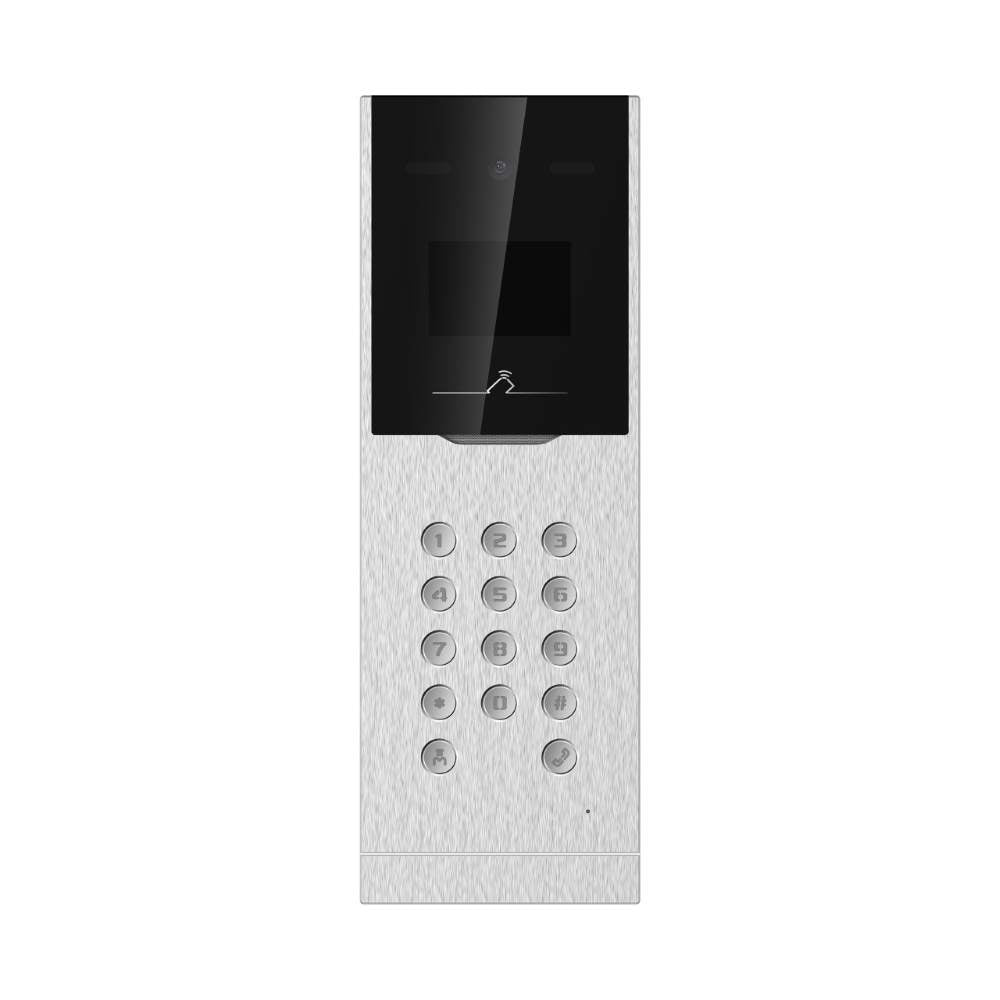

Hikvision DS-KD8023-E6 2nd Gen Intercom Apartment Door Station, IP65, Silver

Model: DS-KD8023-E6

Who This Is For

For strata managers, builders, and security integrators who need a robust flush-mounted door station for multi-tenant apartment buildings, the Hikvision DS-KD8023-E6 2nd Gen Door Station is designed specifically for high-density residential entry points. With 14 touch buttons, a 3.5-inch colour LCD screen, and IP65 weatherproofing rated for outdoor installation, this unit suits main entry lobbies where multiple tenants need dedicated call buttons in a single, clean panel. The flush-mount form factor keeps the fascia low-profile against a brick or rendered entry surround, and the silver finish suits contemporary apartment architecture. The operating temperature range of -40°C to 55°C means it handles harsh Australian summer heat as readily as alpine conditions, making it a practical choice for projects across Queensland high-rises and Victorian alpine developments alike. It connects into Hikvision's broader intercom ecosystem for indoor monitor and management software integration.

What This Intercom Actually Does

Who Buys This Model

• Strata and Building Managers: Specifying a flush-mount lobby entry station for a multi-tenant residential building where each apartment requires its own dedicated call button and the panel needs to integrate cleanly into the entry surround.
• Security Integrators: Installing a Hikvision intercom system across a new apartment development and requiring a 2nd Gen door station that connects to Hikvision indoor monitors and video management software for centralised management.
• Commercial Builders: Specifying permanent outdoor intercom hardware for developments in climates with extreme temperature ranges, where the -40°C to 55°C operating spec ensures long-term performance without additional housing.
• Access Control Consultants: Designing a system where the door station's alarm inputs need to tie into existing third-party perimeter security or where remote unlock and monitoring via the Hikvision platform are required client deliverables.

Honest Assessment

The DS-KD8023-E6 is a well-specified flush-mount door station for apartment lobby applications. The 14 touch buttons, HD camera with WDR, two-way audio, and IP65 weatherproofing represent a complete feature set for a permanent multi-tenant entry point. The -40°C to 55°C operating range is genuinely broad and eliminates concerns about thermal performance in exposed Australian installations. The silver finish and 418mm x 145mm profile suit modern apartment architecture without requiring additional surround trim work. Where it has limitations: this unit runs on 12 VDC and is not PoE-powered, so a dedicated power supply run is required at the installation point - it cannot be powered from a standard PoE switch port. It is also designed specifically for Hikvision's intercom ecosystem, so integrators running non-Hikvision indoor monitors or third-party access control platforms should verify protocol compatibility before specifying. Available through Security Australia, this is a purposeful product suited to defined multi-tenant residential applications rather than a general-purpose single-door entry station.

Before You Buy

Quick Fit Check

• Good match if: You are installing a lobby entry station for an apartment building where up to 14 tenants each need a dedicated touch call button and the panel must be flush-mounted into the entry wall.
• Good match if: The installation site is in an exposed outdoor position subject to rain, heat, or dust, and you need an IP65-rated unit with a confirmed operating range of -40°C to 55°C without additional weather protection.
• You may need a different model if: Your building has more than 14 apartments requiring individual call buttons from a single entry point - a modular door station system with expandable button modules would better suit higher-density buildings. Browse the intercom range at securityaustralia.com.au for suitable alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a flush-mounted, outdoor-rated apartment door station with up to 14 individual tenant call buttons, two-way audio, and HD video in a single panel within the Hikvision 2nd Gen intercom ecosystem.
• You may need a different model if: Your building has significantly more than 14 apartments requiring call access from one entry point - a modular expandable door station system with additional button modules would scale better for larger multi-tenant buildings.
• Pairs well with: Hikvision 2nd Gen indoor monitors for residents, a Hikvision video intercom management platform for building managers, and a compatible electric strike or magnetic lock for remote release at the entry door.

Common Questions

1. Does this door station work with Hikvision indoor monitors from other product generations?

   Compatibility depends on the specific indoor monitor model and firmware. The DS-KD8023-E6 is a 2nd Gen Hikvision door station and is designed to operate within the 2nd Gen intercom ecosystem. Mixing 1st Gen and 2nd Gen Hikvision intercom devices on the same network may require specific configuration and should be verified against Hikvision's intercom compatibility matrix before purchase.

2. Is this door station PoE-powered, or does it need a separate power supply?

   No. The DS-KD8023-E6 runs on 12 VDC at 1 A and is not PoE-powered. A dedicated 12 VDC power supply must be provided at the installation point. Installers cannot power this unit from a standard PoE switch port, so a separate power supply run is required as part of the rough-in cabling plan.

3. Will this door station work outdoors in an unshaded position in Australian summer?

   Yes, within confirmed limits. The DS-KD8023-E6 has a confirmed operating temperature range of -40°C to 55°C. Most Australian locations will fall within this range even in exposed outdoor positions, though installations in locations where ambient temperatures combined with radiant heat loading could exceed 55°C should be assessed individually. The IP65 rating also confirms protection against rain and dust ingress.

4. How many apartments can this door station call?

   The DS-KD8023-E6 has 14 touch buttons, each of which can be mapped to an individual apartment or indoor monitor. For buildings with more than 14 tenants needing access from a single entry point, the directory search function via the 3.5-inch LCD can assist navigation, and larger buildings may need to consider a modular door station configuration with additional button panels. Contact Security Australia to discuss multi-entry or high-density building requirements.

5. Can residents unlock the door remotely using a smartphone?

   Yes, remote unlocking is supported via the Hikvision intercom platform. Residents can view the door station camera feed and issue a remote unlock command from a connected indoor monitor or via the Hikvision mobile application, depending on how the system is configured. This requires the intercom system to be set up with appropriate network access and a compatible indoor monitor or mobile app integration.

6. What does the flush-mount installation require in terms of wall preparation?

   Flush mounting requires a prepared back box or cavity in the wall to a depth of at least 61 mm to accommodate the unit's 61 mm depth dimension. The panel face dimensions are 418 mm wide by 145 mm tall. In masonry or precast panel construction, a correctly sized chase and back box must be installed at rough-in stage before the panel can be fitted. Surface-mount adaptor brackets are available separately if flush installation is not practical at the specific site.

7. Does the WDR camera actually help in a backlit lobby entrance?

   Yes. Wide Dynamic Range processing is specifically designed to handle scenes where the background behind a visitor is significantly brighter than the visitor's face - a common condition at lobby entries facing east or west. The camera captures detail in both the bright and shadowed areas of the frame simultaneously, delivering a more usable image to the indoor monitor than a camera without WDR in the same conditions.

Cabling Considerations

• Power Cable: A dedicated 12 VDC, 1 A power supply is required at the door station location. Use appropriately rated DC power cable sized for the cable run length to avoid voltage drop - for runs over 10 m, increase conductor cross-section accordingly.
• Network Cable: Cat5e or Cat6 is recommended for the data connection between the door station and the network switch or NVR. Keep cable runs within standard Ethernet distance limits (100 m maximum per segment).
• PoE Notes: This unit is not PoE-powered. A separate 12 VDC power supply must be provided. Do not connect to a PoE switch port expecting the unit to power up.
• Lock Wiring: If connecting to an electric strike or magnetic lock for remote release, route a separate cable for the lock power circuit. Confirm lock voltage and current requirements against the door station's relay output specifications before wiring.
• Conduit: All cabling at the flush-mount installation point should be run in conduit before the wall is finished. Retrofit installations in existing masonry will require coring and conduit installation before the back box can be fitted.

Downloads & Resources

No downloads available for this product.
