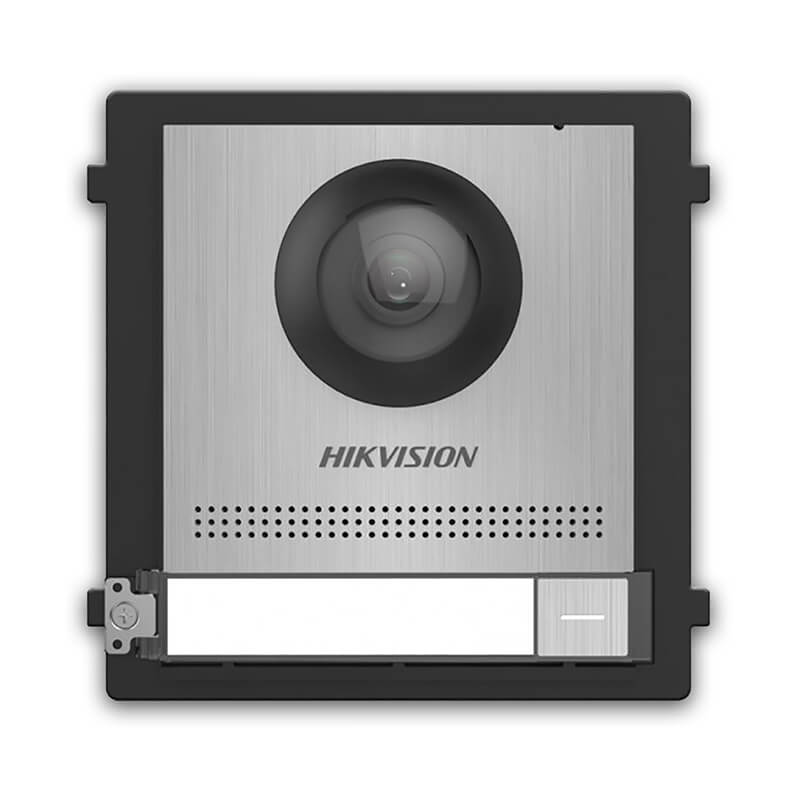

Hikvision DS-KD8003Y-IME2/S Gen2 Y Series 2 Wire Intercom, Door Station with Camera, 1 Button, IP65 Stainless Steel
Two wire main unit
- Two-pin wire for power supply and network access
- Access control function
- Noise suppression and echo cancellation
- H.264 video compression
- Low illumination
- Tampering alarm
- Fisheye camera with IR supplement light
- Supports sub-modules' access (max. 8)
- Nametag customization
Code/SKU: DS-KD8003Y-IME2/S
Quick Specs:
- ROM: 32 MB
- RAM: 256 MB
- Processor: Embedded Processor
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hikvision DS-KD8003Y-IME2/S is a robust 2-wire modular door station unit designed for outdoor environments. It features a 2MP fisheye camera with IR supplement for enhanced visibility, providing clear video even in low-light conditions. The unit has an IP65 rating, ensuring protection against dust and water, making it ideal for harsh weather. It supports two-lock control and comes with a single call button for convenient user interaction. The DS-KD8003Y-IME2/S can be configured remotely via a web interface and includes a built-in microphone and speaker, which are equipped with noise suppression and echo cancellation for clear audio communication. Additionally, it provides a 12V, 500 mA power output, eliminating the need for an external power supply for one electronic lock. The system supports up to 500 linked indoor stations, making it scalable for large setups.
Features
- 2 MP fisheye camera with IR light for enhanced night vision.
- Wide Field of View (146° horizontal, 82° vertical).
- IP65-rated, offering high protection against dust and water.
- One physical call button for easy communication.
- Supports two-lock control with two relays (up to 30 VDC).
- 2000-user capacity.
- Web-based remote configuration.
- Powered by Hikvision KAD704Y or KAD706Y distributors.
- Surface or flush mounting options.
- Operating temperature range of -40°C to 60°C
Technical Specifications
| Button | 1 |
| Installation | Surface mounting, flush mounting |
| Indicator | / |
| Weight | Net weight: 0.430 kg Gross weight: 0.551 kg |
| Protective Level | IP65 |
| Working Temperature | -40 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × H × D) | 100 mm × 98 mm × 42 mm |
| Battery | / |
| Power Supply | Powered by KAD704Y or KAD706Y series distributor |
| Application Environment | Outdoor |
| Power Consumption | ≤ 4 W |
| Language | English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Two wire main unit
- Two-pin wire for power supply and network access
- Access control function
- Noise suppression and echo cancellation
- H.264 video compression
- Low illumination
- Tampering alarm
- Fisheye camera with IR supplement light
- Supports sub-modules' access (max. 8)
- Nametag customization
Code/SKU: DS-KD8003Y-IME2/S
Quick Specs:
- ROM: 32 MB
- RAM: 256 MB
- Processor: Embedded Processor
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| System Parameters | |
|---|---|
| Operation System | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embedded Processor |
| Display Parameters | |
| Screen Size | / |
| Operation Method | / |
| Type | / |
| Resolution | / |
| Video Parameters | |
| Lens | 1 |
| Resolution | 2 MP |
| FOV | Horizontal: 146°, Vertical: 82° |
| Wide Dynamic Range (WDR) | Support |
| Supplement Light | IR light, up to 3 m |
| Video Compression Standard | H.264 |
| Audio Parameters | |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Compression Standard | G.711 U, G.711 A |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| User Capacity | 2000 |
| Face Capacity | NA |
| Fingerprint Capacity | / |
| Message Capacity | / |
| Linked Indoor Station Capacity | 500 |
| Sub Door Station Capacity | 16 |
| Network Parameters | |
| Network Protocol | NA |
| Wi-Fi | / |
| Bluetooth | / |
| 3G/4G | / |
| Device Interfaces | |
| Alarm Input | 4 (2 exit buttons and 2 door contacts by default) |
| Network Interface | NA |
| TAMPER | 1 |
| Exit Button | 2 (2 for lock control) |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| USB | NA |
| Wiegand | NA |
| TF Card | NA |
| Alarm Output | NA |
| Lock Control | 2 relays, Max. to 30 VDC, 2 A |
| Door Contact Input | 2 |
| Two-Wire IP Interface | 1 |
| General | |
| Button | 1 |
| Installation | Surface mounting, flush mounting |
| Indicator | / |
| Weight | Net weight: 0.430 kg Gross weight: 0.551 kg |
| Protective Level | IP65 |
| Working Temperature | -40 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × H × D) | 100 mm × 98 mm × 42 mm |
| Battery | / |
| Power Supply | Powered by KAD704Y or KAD706Y series distributor |
| Application Environment | Outdoor |
| Power Consumption | ≤ 4 W |
| Language | English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
