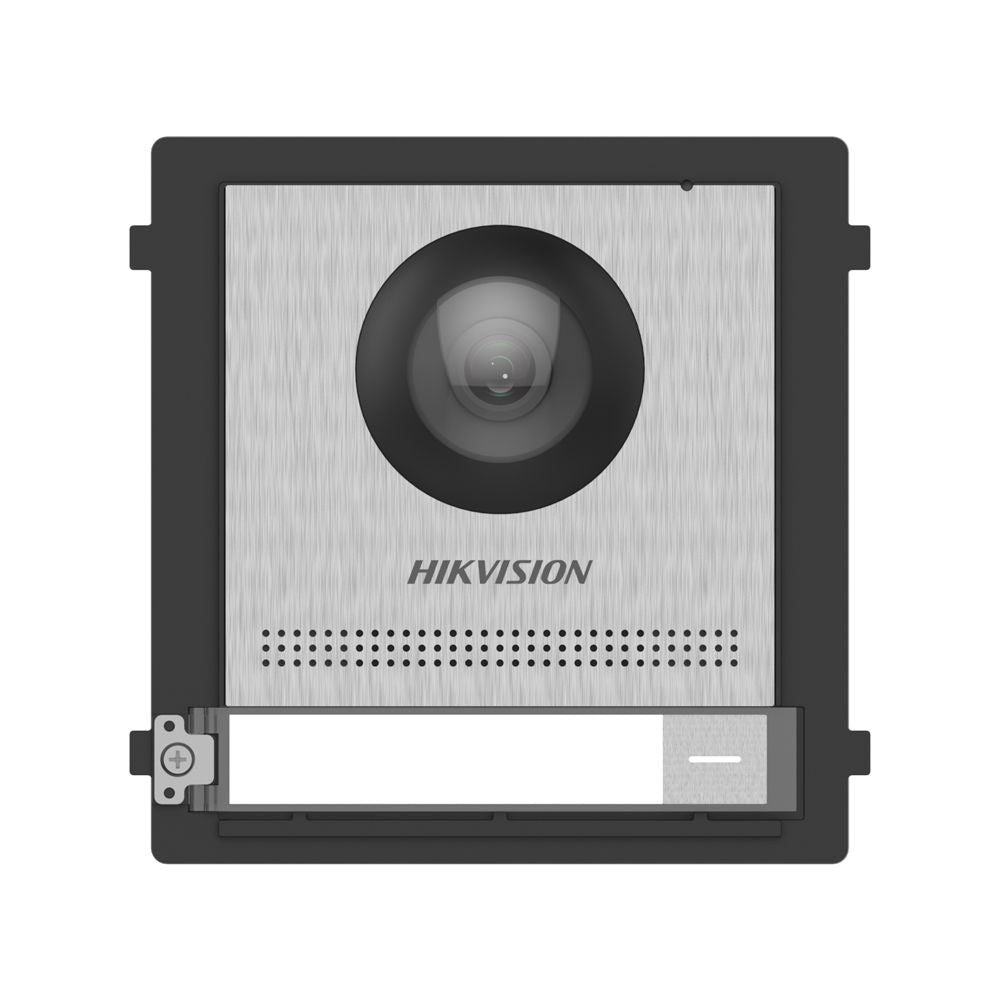

Hikvision DS-KD8003-IME2/S 2nd Gen IP Intercom Door Station 12VDC, 2 WIRE, Stainless Steel
Video Intercom Module Door Station
The DS-KD8003-IME2/S offers remote monitoring capabilities via a smartphone app, providing users with the ability to see and speak to visitors from anywhere. Additionally, it features a user-friendly interface with a touchscreen display for easy navigation. The device is designed with advanced encryption protocols, ensuring secure communication and data protection. Overall, this video intercom module is an ideal solution for enhancing security and convenience at entry points.
Key Features
- Two-pin wire for power supply and network access
- Access control function
- Noise suppression and echo cancellation
- H.264 video compression
- Low illumination
- Tampering alarm
- Fisheye camera with IR supplement light
- Supports sub-modules' access (max. 8)
- Nametag customization
Code/SKU: DS-KD8003-IME2/S
Quick Specs:
- Processor: Embedded MCU Processor
- Operating System: Embedded Linux Operating System
- Operation Method: Physical Button
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The DS-KD8003-IME2/S is a cutting-edge video intercom module door station from Hikvision, designed for enhanced security and communication. It features a sleek, weather-resistant design, making it suitable for both residential and commercial use. The device offers high-definition video quality, allowing users to see visitors clearly before granting access. Equipped with a 2MP camera, it ensures clear images even in low light conditions. The intercom supports two-way audio, enabling seamless conversations with visitors. Its built-in RFID reader adds an extra layer of convenience for access control. Users can integrate the module with existing security systems, enhancing overall safety. The DS-KD8003-IME2/S also supports remote access via mobile applications, allowing users to monitor their entrance from anywhere. Installation is straightforward, thanks to its flexible mounting options.
Features
- High-Definition Video: Supports HD video resolution for clear image quality.
- Two-Way Audio: Allows for real-time communication between the door station and the indoor units.
- Touchscreen Interface: Features a user-friendly touchscreen for easy navigation and operation.
- Wide-Angle Lens: Equipped with a wide-angle lens to capture a broader view of the entrance area.
- Night Vision: Provides infrared night vision capabilities for low-light conditions.
- Weatherproof Design: IP65-rated housing for durability against outdoor elements.
- Remote Access: Enables users to remotely view and communicate via mobile devices or apps.
- Integration Capabilities: Can be integrated with other Hikvision security systems and devices.
- Alarm Input and Output: Supports external alarm integration for enhanced security.
- PoE Support: Power over Ethernet (PoE) functionality for simplified installation and reduced wiring.
Technical Specifications
| General | |
|---|---|
| Physical Button | 1 |
| Power Consumption | 4 W |
| Protection Level | IP 65 |
| Power Input | 24 VDC two-wire power supply (< 16 W) or 12 VDC independent power supply (< 20 W) |
| Power Output | 12 VDC (only for power supply of submodule) |
| Working Temperature | -40° C to +60° C (-40° F to 140° F) |
| Working Humidity | 10% to 95% |
| Installation | Flush mounting, surface mounting |
| Dimension | 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73") |
| Material | Stainless steel |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Video Intercom Module Door Station
The DS-KD8003-IME2/S offers remote monitoring capabilities via a smartphone app, providing users with the ability to see and speak to visitors from anywhere. Additionally, it features a user-friendly interface with a touchscreen display for easy navigation. The device is designed with advanced encryption protocols, ensuring secure communication and data protection. Overall, this video intercom module is an ideal solution for enhancing security and convenience at entry points.
Key Features
- Two-pin wire for power supply and network access
- Access control function
- Noise suppression and echo cancellation
- H.264 video compression
- Low illumination
- Tampering alarm
- Fisheye camera with IR supplement light
- Supports sub-modules' access (max. 8)
- Nametag customization
Code/SKU: DS-KD8003-IME2/S
Quick Specs:
- Processor: Embedded MCU Processor
- Operating System: Embedded Linux Operating System
- Operation Method: Physical Button
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| System Parameters | |
|---|---|
| Processor | Embedded MCU Processor |
| Operation System | Embedded Linux operation system |
| Operation Method | Physical button |
| Video Parameters | |
| Camera | Low illumination 2 MP HD IR camera |
| Video Compression Standard | H.264 |
| Resolution | Main stream: 1920 × 1080 Sub stream: 720 × 480 |
| Video Stream | Main stream: 1080p@30fps, 720p@30fps (configurable); sub stream: D1 |
| BLC | Supported |
| DNR | Supported |
| WDR | Supported |
| Anti-flicker | 50 Hz, 60 Hz |
| Field of View | Horizontal: 180° Vertical: 96° |
| Motion Detection | Supported |
| Audio Parameters | |
| Audio Intercom | Full-duplex two-way audio intercom |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker (More than 85 dB within 20 cm) |
| Audio Compression Standard | G.711 U |
| Audio Compression Rate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Light Supplement | |
| Light Supplement Mode | IR supplement |
| Network Parameters | |
| Wired Network Interface | Two-wire transmission |
| Network Protocol | TCP/IP, RSTP |
| Access Control Relay Interface (Main Module) | 2, NO + NC separately draw forth |
| Interfaces | |
| Module Connecting | 1 |
| Tampering Alarm | 1 |
| Alarm Input | 4 |
| Performances | |
| Card Capacity | Max. 10000 |
| User Capacity | Max. 2000 |
| Linked Indoor Station | Max. 100 |
| Linked Sub Door Station | Max. 8 |
| Linked Doorphone | Max. 8 |
| Protocol | ISAPI, RTSP, STMP, SNMP |
| Unlock Door | Unlock by presenting cards, unlock via Client Software, unlock via App, unlock via indoor station |
| General | |
| Physical Button | 1 |
| Power Consumption | 4 W |
| Protection Level | IP 65 |
| Power Input | 24 VDC two-wire power supply (< 16 W) or 12 VDC independent power supply (< 20 W) |
| Power Output | 12 VDC (only for power supply of submodule) |
| Working Temperature | -40° C to +60° C (-40° F to 140° F) |
| Working Humidity | 10% to 95% |
| Installation | Flush mounting, surface mounting |
| Dimension | 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73") |
| Material | Stainless steel |
