Two wire main unit
This unit is equipped with a high-definition camera that offers crystal-clear video and a wide-angle view, ensuring that users can easily identify visitors. Its robust build is suited for outdoor use, providing reliable performance in various weather conditions. The device supports two-way audio, allowing for seamless communication between the user and visitors. With its user-friendly interface, the DS-KD8003Y-IME2 ensures intuitive operation, making it accessible for individuals of all technical skill levels. It also integrates with Hikvision's extensive security ecosystem, providing users with enhanced functionality and monitoring options.
Key Features
Code/SKU: DS-KD8003Y-IME2
Quick Specs:
| System Parameters | |
|---|---|
| Operating system | Embedded Linux operating system |
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embedded Processor |
| Display Parameters | |
| Screen size | / |
| Operation method | / |
| Type | / |
| Resolution | / |
| Video Parameters | |
| Lens | 1 |
| Resolution | 2 MP |
| FOV | Horizontal: 146°, Vertical: 82° |
| Wide dynamic range (WDR) | Support |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264 |
| Audio Parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Face capacity | NA |
| Fingerprint capacity | / |
| Message capacity | / |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network Parameters | |
| Network protocol | NA |
| Wi-Fi | / |
| Bluetooth | / |
| 3G/4G | / |
| Device Interfaces | |
| Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
| Network interface | NA |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| USB | NA |
| Wiegand | NA |
| TF card | NA |
| Alarm output | NA |
| Lock control | 2 relays, Max. to 30 VDC, 2 A |
| Door contact input | 2 |
| Two-Wire IP interface | 1 |
| General | |
| Button | 1 |
| Installation | Surface mounting, flush mounting |
| Indicator | / |
| Weight | Net weight: 0.380 kg Gross weight: 0.541 kg |
| Protective level | IP65 |
| Working temperature | -40° C to 60° C (-22° F to 140° F) |
| Working humidity | 10% to 90% |
| Dimension (W × H × D) | 100 mm × 98 mm × 42 mm |
| Battery | / |
| Power supply | Powered by KAD704Y or KAD706Y series distributor |
| Application environment | Outdoor |
| Power consumption | ≤ 4 W |
| Language | English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

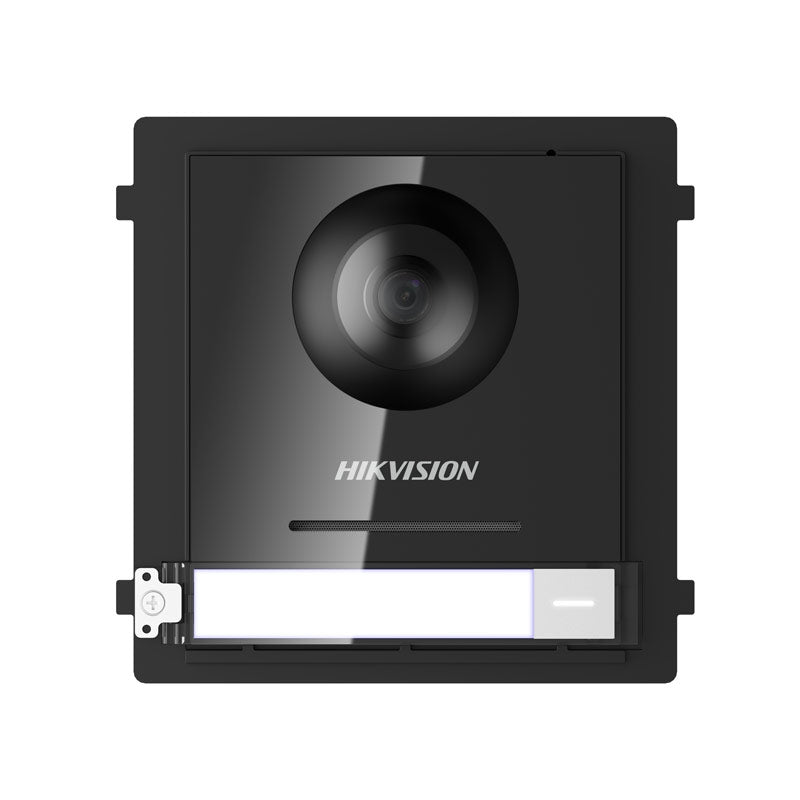

Hikvision DS-KD8003Y-IME2 Gen2 Y Series 2 Wire Intercom, Door Station with Camera, 1 Button, IP65
The DS-KD8003Y-IME2 is a sophisticated two-wire main unit designed by Hikvision, featuring a sleek and modern design that complements any architectural style. This unit is equipped with a high-definition camera that offers crystal-clear video and a wide-angle view, ensuring that users can easily identify visitors. Its robust build is suited for outdoor use, providing reliable performance in various weather conditions. The device supports two-way audio, allowing for seamless communication between the user and visitors. With its user-friendly interface, the DS-KD8003Y-IME2 ensures intuitive operation, making it accessible for individuals of all technical skill levels. It also integrates with Hikvision's extensive security ecosystem, providing users with enhanced functionality and monitoring options.
The unit supports remote access via a mobile app, enabling users to view live feeds and communicate from anywhere. Additionally, the device features customizable settings for alerts and notifications, enhancing user control and responsiveness. Easy installation with a two-wire setup simplifies the process, reducing installation time and costs. Overall, the DS-KD8003Y-IME2 is a versatile and reliable solution for modern security needs.
Features
| Video Parameters | |
|---|---|
| Lens | 1 |
| Resolution | 2 MP |
| FOV | Horizontal: 146°, Vertical: 82° |
| Wide dynamic range (WDR) | Support |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264 |
| Audio Parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Face capacity | NA |
| Fingerprint capacity | / |
| Message capacity | / |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
