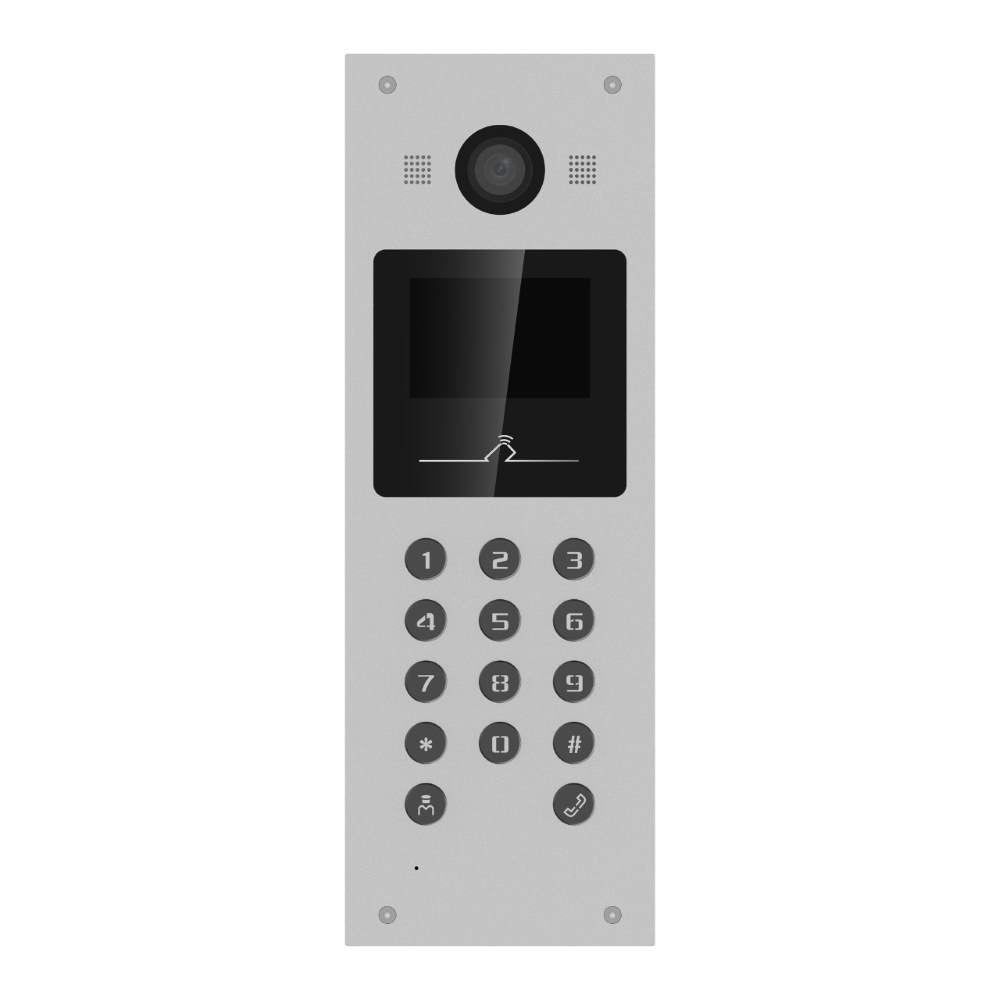

Hikvision DS-KD3003-E6 2nd Gen Intercom Slim Apartment Door Station, IP65, Aluminium

Model: DS-KD3003-E6

Who This Is For

When an apartment building needs a clean, low-profile door station that can handle dozens of residents without dominating the entry fascia, the Hikvision DS-KD3003-E6 is worth a close look. This second-generation slim door station is built for multi-dwelling residential buildings where flush mounting, durable aluminium construction, and a compact footprint all matter. At 357 mm tall with 14 physical call buttons, it suits buildings with up to 14 apartments per station module - or can be expanded in a modular configuration. Body corporate managers, security integrators working on new apartment developments, and builders specifying intercom systems for low-to-mid-rise residential projects are the primary buyers. The IP65 rating means it handles rain and dust at exposed entry points, and the operating range of -40 degrees C to 55 degrees C makes it appropriate for installations across all Australian climate zones, from tropical Queensland to alpine Victoria.

What This Intercom Actually Does

Who Buys This Model

• Security integrators on apartment projects: Specifying a flush-mount, multi-button door station for new 4-14 apartment builds where a single slim panel at the entry serves the whole building.
• Body corporate managers upgrading ageing intercom systems: Replacing a worn or obsolete entry panel with a modern IP-based unit that integrates with Hikvision indoor monitors and supports mobile app access for residents.
• Builders and developers on low-rise residential projects: Specifying an IP65-rated aluminium door station that suits exposed entries in coastal or high-rainfall areas and meets body corporate durability expectations.
• Facilities managers at small commercial buildings: Using the DS-KD3003-E6 at a visitor entry where up to 14 internal departments or offices need individual call buttons with video verification at the front door.

Honest Assessment

The DS-KD3003-E6 does its core job well: it provides a durable, weather-rated entry point for apartment buildings that need physical call buttons, two-way audio, and video communication in a slim flush-mount format. The aluminium housing and IP65 rating give it genuine outdoor longevity, and the -40 to 55 degree C operating range means it is not restricted to temperate climates. Night vision support and mobile app integration are practical additions for residents who are not always at their indoor monitor. Where this unit has limits: with 14 buttons fixed to a single panel, buildings with more than 14 apartments will need additional modules or a different station type with a touchscreen directory. It is also not a standalone access control device - a door release mechanism and compatible indoor stations or NVR must be part of the system. The DS-KD3003-E6 is available through Security Australia and is best evaluated as part of a planned Hikvision intercom system rather than as a standalone purchase.

Before You Buy

Quick Fit Check

• Good match if: You are installing a door station at an apartment building entry with up to 14 units and want physical call buttons, two-way video, and IP65-rated aluminium housing in a flush-mount slim profile.
• Good match if: You need mobile app call forwarding so residents can answer the door and release the lock remotely via Hik-Connect when they are away from their apartment.
• You may need a different model if: Your building has more than 14 apartments or requires a searchable directory for a large number of residents - a touchscreen-based door station with a digital directory would be more suitable for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a slim, flush-mount aluminium door station with physical call buttons for up to 14 apartments, IP65 outdoor rating, and two-way video intercom with mobile app support in a Hikvision system.
• You may need a different model if: Your building has more than 14 apartments, or tenants change frequently and you need a reconfigurable digital directory - a touchscreen-based apartment door station with a searchable resident list is better suited to those requirements.
• Pairs well with: Hikvision IP indoor monitors, a video intercom management server or NVR, and an electric door strike or magnetic lock at the entry point for remote release functionality.

Common Questions

1. Does the DS-KD3003-E6 work as a standalone intercom, or does it need other components?

   It requires additional components to function as a complete intercom system. The DS-KD3003-E6 is the outdoor door station only - it must be paired with compatible Hikvision indoor monitors or a video intercom server, and a door release device (electric strike or magnetic lock) is needed separately. It does not operate independently without these elements.

2. Will this door station work for a building with more than 14 apartments?

   Not as a single unit. The DS-KD3003-E6 has 14 physical buttons, which corresponds to a maximum of 14 call points on this panel. For larger buildings, the Hikvision modular intercom system allows multiple panels to be combined at one entry, or a touchscreen directory-style door station may be more appropriate depending on the number of residents.

3. Is the DS-KD3003-E6 powered by PoE?

   No. The DS-KD3003-E6 is powered by 12 VDC at 1 A, with a maximum consumption of 10 W. It is not a PoE device. A dedicated 12 VDC power supply must be run to the door station during installation. This is an important distinction when planning cabling and power supplies for the entry point.

4. Can residents answer door calls on their smartphone when they are not home?

   Yes. The DS-KD3003-E6 supports remote access via the Hik-Connect mobile application. When a visitor presses a call button, the call can be forwarded to the resident's phone. The resident can view the camera feed, speak with the visitor via two-way audio, and remotely release the door lock from anywhere with an internet connection. This requires the system to be configured with a Hikvision intercom server and internet access at the building.

5. What does the IP65 rating mean for outdoor installation in Australia?

   IP65 means the unit is fully protected against dust ingress (rated 6) and against direct water jets from any direction (rated 5). For Australian installations, this covers rain, garden hose splash, and wind-driven moisture at an exposed building entry. It does not mean the unit is submersible, but IP65 is a practical and sufficient rating for the vast majority of outdoor apartment entry installations across all Australian climates.

6. Does the door station have a built-in camera, and how does it perform at night?

   Yes. The DS-KD3003-E6 has a built-in camera with infrared LEDs for low-light capture. At night, the IR illumination allows the camera to produce a visible image of a visitor standing at the door station without requiring external lighting. The image is displayed on the resident's indoor monitor or mobile app, allowing visual identification before the door is released.

7. What are the physical installation requirements for flush mounting this door station?

   The DS-KD3003-E6 requires a flush back-box recess in the wall sized to accommodate the unit's depth of 55.3 mm across its 357.3 mm x 124.3 mm face. Wall construction type - brick, rendered masonry, or framed stud - will affect the back-box approach. The unit weighs 1.05 kg net. On new builds, the recess and power cable should be planned during the rough-in stage. Security Australia stocks this unit and can advise on compatible back-box accessories for the DS-KD series.

Cabling Considerations

• Power Cable: A dedicated 12 VDC, 1 A supply must be run to the door station - this is not a PoE device. Use appropriate DC cable rated for outdoor and in-wall use from the nearest power supply location.
• Network Cable: The DS-KD3003-E6 communicates over IP. Run a Cat5e or Cat6 Ethernet cable from the door station to the network switch or intercom server. Standard maximum Ethernet run of 100 m applies.
• Door Release Wiring: If connecting to an electric door strike or magnetic lock, a separate low-voltage cable is required between the door station (or intercom controller) and the lock mechanism. Confirm lock voltage and current draw matches the relay output of the intercom controller being used.
• Conduit and Back-Box: For flush mounting in masonry, plan conduit entry from below or behind before rendering. A back-box with appropriate depth for 55.3 mm unit depth is required. All external cable entry points should be sealed for IP65 integrity to be maintained after installation.
