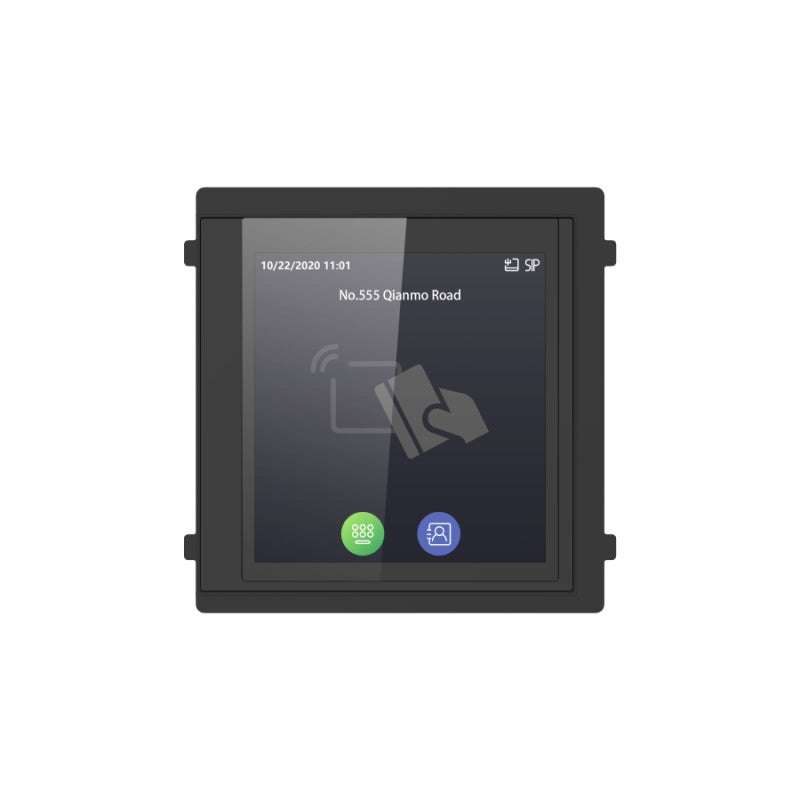

Hikvision DS-KD-TDM 2nd Gen Intercom, Touch Display Module
Touch Display Module with M1 Card Reader
The Touch Display Module with M1 Card Reader DS-KD-TDM by Hikvision is an advanced security solution designed to enhance access control systems. Featuring a sleek touch display, it provides a user-friendly interface for efficient operation. The integrated M1 card reader supports various card technologies, ensuring versatility in access management. This module is ideal for both residential and commercial applications, offering seamless integration with Hikvision’s existing security infrastructure. With its robust design, it withstands various environmental conditions, making it suitable for outdoor installations.
The DS-KD-TDM also includes a built-in speaker and microphone, enabling two-way communication for improved security. Additionally, its intuitive navigation menu simplifies user interactions, streamlining access processes. The module supports remote management and monitoring, allowing administrators to maintain oversight of the access system from anywhere. Enhanced with advanced security features, the DS-KD-TDM ensures that only authorized personnel gain entry. Overall, this module represents a significant advancement in the field of access control technology, blending functionality with modern design.
Key Features
- Touch display module with M1 card reader of modular door station
- 4-inch touch screen with rich information display: Dial number, pin code unlock, contact list, advertisement
- Store up to 2000 contacts
- IP65 and IK08 higher protection level
- Support multiple languages
Code/SKU: DS-KD-TDM
Quick Specs: Resolution: 480 × 480, Brightness: Adjustable, Max. 500 cd/m²
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Touch Display Module with M1 Card Reader DS-KD-TDM is an advanced device designed for seamless access control and communication in various environments. Featuring a user-friendly touch screen interface, it allows for easy navigation and operation. This module supports M1 card reading, ensuring secure and efficient access management. Its sleek design makes it suitable for both residential and commercial applications. The device integrates well with other Hikvision products, enhancing overall system functionality. With customizable settings, users can tailor the device to meet specific needs. Additionally, the DS-KD-TDM boasts high-definition video capabilities for clear visual communication. Installation is straightforward, making it accessible for various setups. Its durable construction ensures longevity and reliability in diverse conditions.
Features
- Touchscreen Interface: Offers a user-friendly touch display for easy navigation and operation.
- M1 Card Reader: Integrated card reader supports M1 cards for access control applications.
- High-Resolution Display: Delivers clear visuals for notifications and video feeds.
- Two-Way Audio: Enables communication between the module and connected devices for enhanced interaction.
- Weatherproof Design: Built to withstand various environmental conditions, suitable for outdoor installation.
- Integration Capabilities: Can be integrated with other Hikvision security devices for a comprehensive system.
- Remote Access: Supports remote management and monitoring for convenience and flexibility.
- Customization Options: Allows for personalized settings and configurations according to user needs.
- Alarm Integration: Can be connected to alarm systems for real-time alerts and notifications.
- Multi-Language Support: Offers multiple language options for broader accessibility.
Technical Specifications
| General | |
|---|---|
| Installation | Flush mounting, surface mounting |
| Protective level | IP65, IK8 |
| Working temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38") |
| Power supply | 12 VDC, supplied by the main module |
| Power consumption | ≤ 4 W |
| Language | English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Touch Display Module with M1 Card Reader
The Touch Display Module with M1 Card Reader DS-KD-TDM by Hikvision is an advanced security solution designed to enhance access control systems. Featuring a sleek touch display, it provides a user-friendly interface for efficient operation. The integrated M1 card reader supports various card technologies, ensuring versatility in access management. This module is ideal for both residential and commercial applications, offering seamless integration with Hikvision’s existing security infrastructure. With its robust design, it withstands various environmental conditions, making it suitable for outdoor installations.
The DS-KD-TDM also includes a built-in speaker and microphone, enabling two-way communication for improved security. Additionally, its intuitive navigation menu simplifies user interactions, streamlining access processes. The module supports remote management and monitoring, allowing administrators to maintain oversight of the access system from anywhere. Enhanced with advanced security features, the DS-KD-TDM ensures that only authorized personnel gain entry. Overall, this module represents a significant advancement in the field of access control technology, blending functionality with modern design.
Key Features
- Touch display module with M1 card reader of modular door station
- 4-inch touch screen with rich information display: Dial number, pin code unlock, contact list, advertisement
- Store up to 2000 contacts
- IP65 and IK08 higher protection level
- Support multiple languages
Code/SKU: DS-KD-TDM
Quick Specs: Resolution: 480 × 480, Brightness: Adjustable, Max. 500 cd/m²
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Operation system | Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Display parameters | |
|---|---|
| Screen size | 4-inch |
| Type | IPS |
| Resolution | 480 × 480 |
| Brightness | Adjustable, Max. 500 cd/m² |
| Audio parameters | |
| Audio input | / |
| Audio compression standard | / |
| Audio output | 1 buzzer |
| Audio quality | / |
| Volume adjustment | / |
| Loudspeaker consumption | / |
| Network parameters | |
| Wireless network | AP mode |
| Authentication | / |
| Card reading frequency | 13.56 MHz |
| Card reading distance | 2 cm |
| Card type | M1 card |
| Device interfaces | |
| TF card | Reserved |
| DIP switch | 8 bits |
| Two-ware cascading interface | 2 |
| General | |
| Installation | Flush mounting, surface mounting |
| Protective level | IP65, IK8 |
| Working temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38") |
| Power supply | 12 VDC, supplied by the main module |
| Power consumption | ≤ 4 W |
| Language | English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek |
