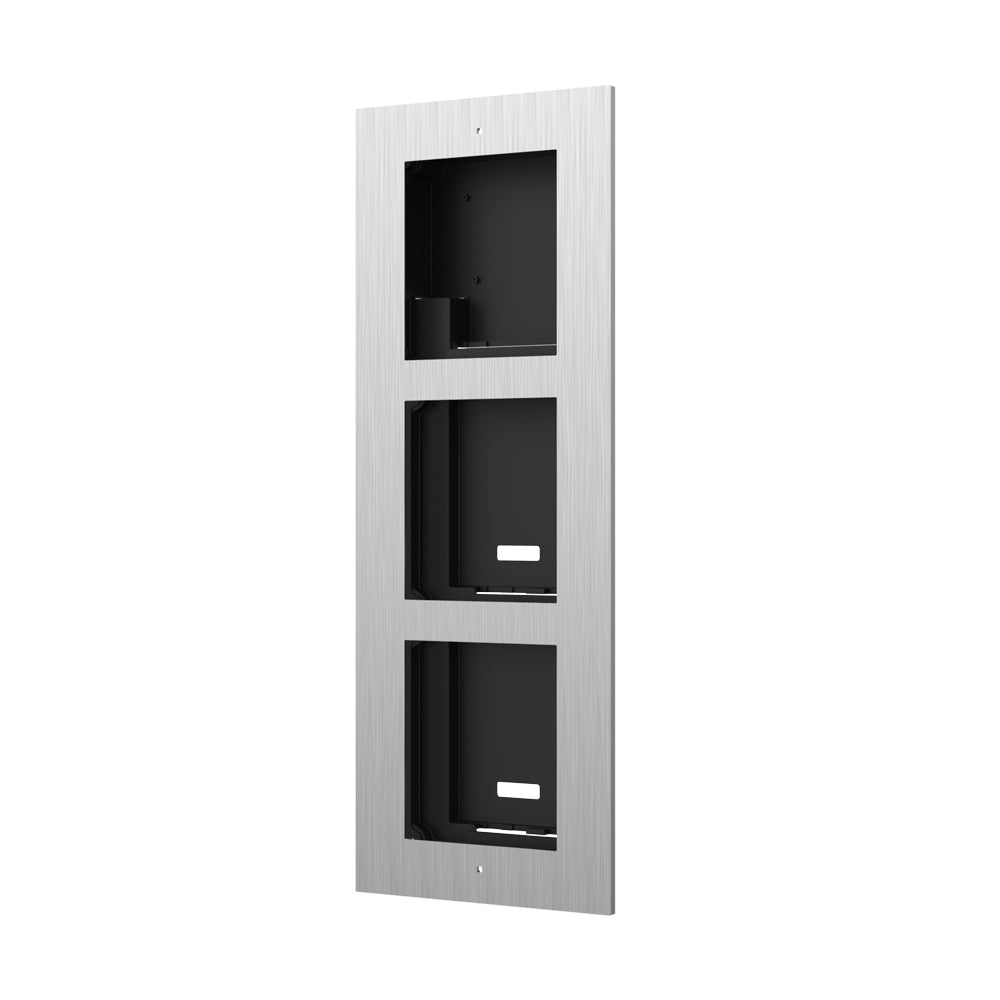

Hikvision DS-KD-ACF3-S Gen2 Video Intercom Flush Mount Housing - 3 Module (Stainless Steel)

Model: DS-KD-ACF3-S

Who This Is For

For installers and integrators who need a clean, professional flush mount solution for Hikvision Gen2 modular door stations. The DS-KD-ACF3-S is a 3-module stainless steel flush mount housing designed specifically for Hikvision's KD series video intercom door stations where the installation calls for an in-wall recessed finish rather than a surface-mounted bracket. It suits apartment buildings, commercial entry points, and residential developments where appearance matters and the rough-in is being done during construction or renovation. The 3-module configuration gives you the space to build a door station with a camera module, keypad module, and card reader or name plate module in a single coordinated faceplate. The included gang box, cover, and hardware mean everything needed for the flush install arrives together, which keeps the job tidy and avoids last-minute trips for accessories.

What This Housing Actually Does

Who Buys This Model

• Electrical and security contractors: Specifying flush intercom installs during the fit-out stage of apartment buildings or commercial developments, where the wall is open and a recessed gang box can be set during rough-in.
• Integrators building multi-function door stations: Combining camera, keypad, and access control modules in a single 3-module configuration for a lobby or gated entry that requires video calling, PIN access, and card reading at one point.
• Property developers and builders: Including a Hikvision KD series intercom in a new build specification and needing a housing that matches a contemporary architectural finish without surface conduit or exposed brackets.
• Facilities managers upgrading existing entries: Replacing an older surface-mounted intercom on a brick or rendered wall where cutting back for a flush gang box gives a cleaner result that suits the building's aesthetic.

Honest Assessment

The DS-KD-ACF3-S does one job and does it properly: it gives the Hikvision KD Gen2 modular door station a clean, professional flush mount finish with a stainless steel faceplate that holds up at high-traffic entry points. The 3-module capacity, complete hardware inclusion, and -40°C to +55°C temperature rating make it a practical choice for contractors who want the install to go smoothly and look right when it is finished. What it will not do is work with non-Hikvision KD series modules - it is purpose-built for that ecosystem. It also does not suit surface-mount applications; if the wall cannot be chased or the gang box cannot be recessed, a surface-mount bracket is the correct product type to specify instead. Available through Security Australia, this housing is best ordered at the planning stage so the gang box dimensions are accounted for in the wall prep before plastering or tiling is complete.

Before You Buy

Quick Fit Check

• Good match if: You are installing Hikvision KD Gen2 modular door station modules in a new build or renovation where the wall cavity is accessible and a flush finish is specified.
• Good match if: Your door station configuration requires 3 modules - such as camera, keypad, and card reader - and needs to be housed in a single, coordinated stainless steel faceplate.
• You may need a different model if: The wall cannot be chased or the cavity depth is insufficient for a 56 mm gang box - in that case, a surface-mount housing for the KD series is the appropriate product type to look at on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a flush mount finish for a 3-module Hikvision KD Gen2 door station and the wall cavity can accommodate a 56 mm deep gang box during rough-in.
• You may need a different model if: The wall cannot be opened or chased - a surface-mount housing for the KD Gen2 series is the appropriate product type to consider instead, which you can find on securityaustralia.com.au.
• Pairs well with: Hikvision KD Gen2 modular door station modules (camera module, keypad module, card reader module) and a compatible KD series indoor monitor or NVR with intercom functionality.

Common Questions

1. Will this housing work with Gen1 Hikvision KD modules?

   No. The DS-KD-ACF3-S is designed for Hikvision KD series Gen2 modular door stations. Gen1 modules use a different form factor and housing system. Confirm that the modules you are purchasing are Gen2 before ordering this housing.

2. How deep does the wall cavity need to be for this housing?

   56 mm of cavity depth is required behind the finished wall surface. The gang box measures 338.8 x 135 x 56 mm, so wall depth needs to be confirmed before rough-in - particularly in double-brick or masonry walls where chasing depth may be limited. Stud-framed walls and lightweight construction typically accommodate this depth without issue.

3. Does this housing include everything needed for installation?

   Yes. The DS-KD-ACF3-S ships with the gang box, stainless steel cover, mounting screws, and installation lines. The intercom modules themselves are sold separately - this housing is the mechanical bracket and enclosure only, not a complete door station.

4. Is this housing suitable for outdoor installation?

   The housing itself is rated to -40°C to +55°C and uses a stainless steel cover that handles outdoor conditions. However, the IP weather rating of the complete door station depends on the KD series modules installed, not the housing alone. Check the IP rating of your chosen modules for exposed outdoor positions.

5. What is the finished wall opening size I need to template for?

   The stainless steel cover measures 337.8 x 124 x 4 mm. Template the wall opening to suit the gang box dimensions (338.8 x 135 mm face opening) and communicate these dimensions to tilers or plasterers before the finishing stage to avoid rework.

6. Can I use this housing for a 1 or 2 module configuration?

   No. This is the 3-module variant. Hikvision produces separate flush mount housings for 1-module and 2-module KD Gen2 configurations. If your door station only uses 1 or 2 modules, specify the correct housing size to ensure the faceplate fits the module layout properly without gaps.

Cabling Considerations

• Cable Routing: Plan cable routes into the gang box before the wall is closed. The gang box has a fixed depth of 56 mm - ensure conduit entries are positioned to avoid conflict with the module connectors once installed.
• Cabling to Modules: Cabling requirements are determined by the KD Gen2 modules installed, not the housing. Refer to the individual module datasheets for network cable, power, and wiegand wiring specifications.
• Rough-In Timing: Set the gang box during rough-in before plastering or tiling. Attempting to install the gang box into a finished wall requires cutting, patching, and re-finishing, which adds cost and time to the job.
