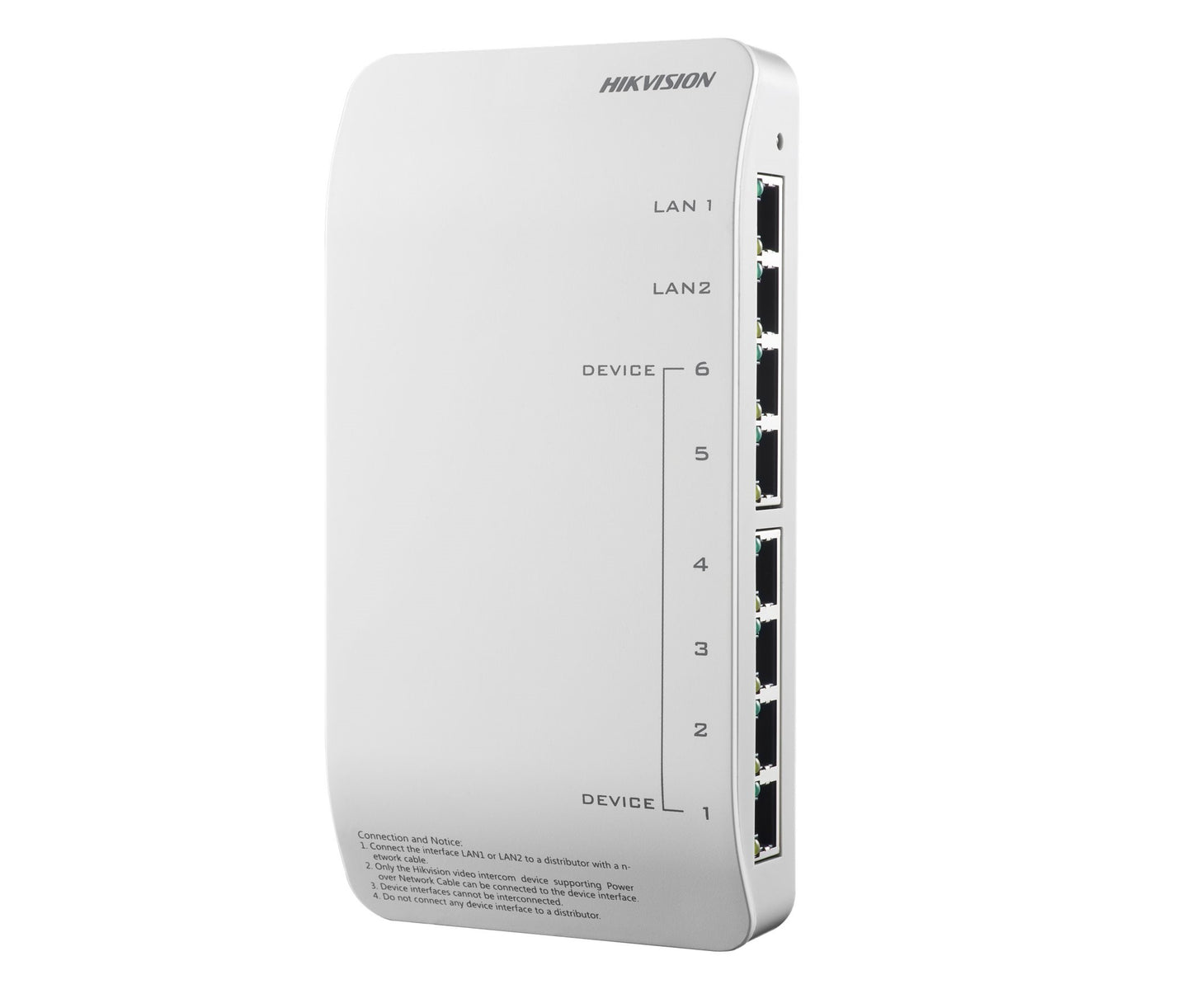

Hikvision DS-KAD606-P Intercom 6 Port Video & Audio Distributor inc. Power Adaptor

Model: DS-KAD606-P

Who This Is For

For installers and system integrators who need to distribute video and audio signals across a multi-device Hikvision video intercom installation without running separate cabling to each endpoint. The DS-KAD606-P sits between the door station and multiple indoor monitors, acting as a managed network distributor with 8 x 10/100 Mbps RJ-45 ports and VLAN support to keep intercom traffic isolated and prioritised. It suits medium to large residential buildings, apartment complexes, commercial offices, and any site where a single door station needs to serve several indoor units cleanly. The included 24V DC power adaptor means one fewer component to source separately, and the compact 176 mm x 91 mm x 32 mm housing fits neatly inside a comms cabinet or wall-mounted enclosure without consuming rack space.

What This Device Actually Does

Who Buys This Model

• Apartment building installers: Connecting a single entry door station to multiple indoor monitors across several floors or units, where a direct home-run cable to each monitor is impractical.
• Commercial office integrators: Distributing intercom signals to reception, management, and security desk monitors simultaneously, using VLAN segmentation to keep intercom traffic off the general office network.
• Residential estate contractors: Installing Hikvision video intercom systems in large homes with multiple indoor stations where the door panel's native output cannot reach all endpoints without a dedicated distributor.
• Security system wholesalers and resellers: Stocking the DS-KAD606-P as a standard intercom infrastructure component for quoting alongside Hikvision door stations and indoor monitors on larger intercom projects.

Honest Assessment

The DS-KAD606-P does its job cleanly: 8 x 10/100 Mbps ports with VLAN support, 4 priority queues, and a built-in 1 Mbit buffer give a Hikvision video intercom installation the switching infrastructure it needs to distribute calls reliably across multiple indoor monitors. The included 24V DC adaptor removes one sourcing step, and the compact housing fits standard comms enclosures without trouble. The operating temperature range of -10°C to +55°C suits indoor comms cabinet installations across Australian conditions. What this unit will not do is work as a general-purpose PoE switch, manage third-party intercom brands, or replace a full managed switch where deeper VLAN configuration beyond 64 VLANs is required. If your project needs PoE delivery to door stations or indoor monitors from the same device, a dedicated PoE switch is the right path - both options are available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are installing a Hikvision video intercom system with multiple indoor monitors and need a dedicated distributor to split the signal cleanly across 8 RJ-45 ports with VLAN isolation.
• Good match if: Your comms cabinet has limited space - the 176 mm x 91 mm x 32 mm housing and low 8W power draw make this easy to fit alongside other equipment without significant space or power budget impact.
• You may need a different model if: Your installation requires PoE power delivery to intercom endpoints from the same device - a PoE-capable managed switch is the more appropriate product type for that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are building a Hikvision video intercom system with multiple indoor monitors and need a purpose-built distributor with VLAN support, 4 priority queues, and an included 24V DC power adaptor - all in a compact housing designed for comms cabinet installation.
• You may need a different model if: Your intercom endpoints require PoE power delivery from the same network device - a PoE-capable managed switch is the appropriate product type and handles both signal distribution and endpoint power in a single unit.
• Pairs well with: Hikvision video intercom door stations, Hikvision indoor monitor units, and a PoE switch or separate power supply for any devices in the system that require PoE.

Common Questions

1. Does the DS-KAD606-P supply PoE power to connected intercom devices?

   No. The DS-KAD606-P distributes video and audio signals over its 8 x 10/100 Mbps RJ-45 ports but does not supply PoE power to any connected device. It operates from its own included 24V DC adaptor at a maximum draw of 8W. If your door station or indoor monitors require PoE, a separate PoE switch must be included in your infrastructure plan.

2. How many indoor monitors can this distributor support?

   Up to 8 connected devices. The unit has 8 x 10/100 Mbps RJ-45 interfaces, so the practical maximum is 8 endpoints - which would typically include the door station uplink and up to 7 indoor monitors, depending on how you configure the system topology.

3. Will this distributor work with non-Hikvision intercom brands?

   No - not by design. The DS-KAD606-P is a Hikvision intercom infrastructure component engineered for the Hikvision video intercom ecosystem. While it uses standard IEEE802.3 Ethernet switching, its VLAN profiles and priority queue behaviour are configured for Hikvision intercom traffic patterns. Compatibility with third-party intercom brands is not confirmed.

4. Does this work for an apartment building with separate tenants on the same system?

   Yes, with VLAN configuration. The DS-KAD606-P supports up to 64 VLANs with VLAN IDs from VID1 to VID4094, allowing the installer to segment intercom traffic per unit. This means each tenant's intercom session can be logically separated from others sharing the same physical distribution hardware - an important consideration in multi-tenancy environments.

5. What network standards does the DS-KAD606-P support?

   IEEE802.3, IEEE802.3u, and IEEE802.3x. These cover standard 10/100 Mbps Ethernet, Fast Ethernet, and flow control respectively. Full-duplex flow control uses IEEE802.3x pause frames, while half-duplex connections use back pressure - both confirmed in the device specifications.

6. Will the DS-KAD606-P fit inside a standard wall-mounted comms enclosure?

   Yes. At 176 mm x 91 mm x 32 mm and drawing a maximum of 8W from its included 24V DC adaptor, the unit is compact enough to mount cleanly inside most residential or commercial comms cabinets without occupying rack space or requiring a dedicated power circuit. The DS-KAD606-P is stocked by Security Australia and can be ordered alongside compatible Hikvision intercom components.

7. What is the operating temperature range, and can it be installed in a roof space or external cabinet?

   The confirmed operating range is -10°C to +55°C with humidity tolerance of 10% to 90% non-condensing. This suits indoor comms cabinet installations in Australian conditions, including most internal roof spaces during cooler months. However, external enclosures exposed to direct sun in summer can exceed +55°C, so a shaded or climate-controlled location is recommended for reliable long-term operation.

Cabling Considerations

• Cable Type: Cat5e or Cat6 UTP recommended for all RJ-45 connections to indoor monitors and door station uplink.
• Max Cable Run: Standard 10/100 Mbps Ethernet limits apply - up to 100 m per segment from the distributor to any connected endpoint.
• PoE Notes: The DS-KAD606-P does not supply PoE on any port. If connected intercom devices require PoE, a separate PoE injector or PoE switch must be placed between the distributor and each powered endpoint.
• Power Wiring: The unit connects to a 24V DC power adaptor (included). Route the adaptor cable to a nearby 240V GPO inside the comms cabinet or adjacent to the mounting location. Do not extend the low-voltage DC cable beyond the adaptor's rated lead length.
• VLAN Planning: If deploying in a multi-tenant or shared-network environment, map out VLAN IDs before installation. The unit supports VID1 to VID4094, giving flexibility for most residential and small commercial deployments without needing additional managed switches at the distribution point.

Downloads & Resources

• Quick Start Guide - DS-KAD606-P
