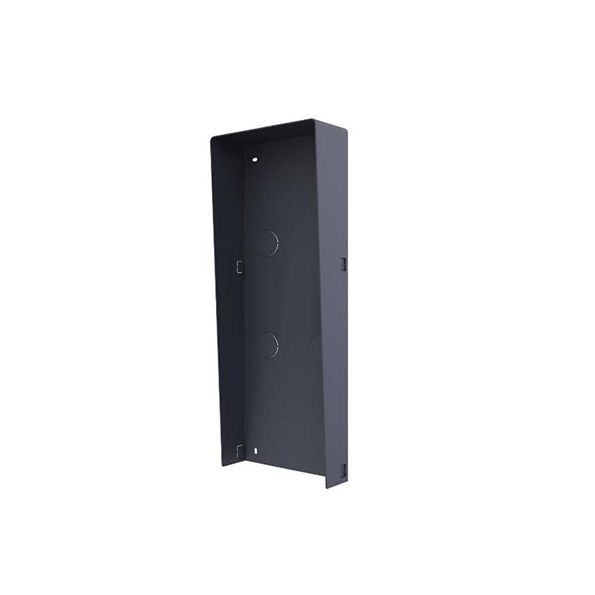

Hikvision DS-KABD8003-RS3 2nd Gen Door Shroud to suit DS-KD-ACW3
Rain Shield of Module Door Station
The Rain Shield for the Module Door Station DS-KABD8003-RS3 is designed to enhance the durability and performance of the device in adverse weather conditions. Its robust construction provides effective protection against rain and moisture, ensuring reliable operation even during heavy downpours. The sleek design complements the aesthetic of the door station while offering practical functionality. Installation is straightforward, making it an ideal choice for both residential and commercial applications.
Key Features
- Convenient design available for the 3 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
- Material: SECC
Code/SKU: DS-KABD8003-RS3
Quick Specs:
- Working Temperature: -40° C to +60° C (-40° F to 140° F)
- Working Humidity: 10% to 95%
- Weight: 702.3g
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Rain Shield of the Module Door Station DS-KABD8003-RS3 is designed to enhance the durability and functionality of the door station in various weather conditions. Its robust construction protects the device from rain and moisture, ensuring reliable operation even in heavy downpours. The sleek design complements the aesthetics of modern architecture while providing essential protection. Easy to install, the rain shield is a practical addition for both residential and commercial settings. By incorporating this accessory, users can ensure their door station remains fully operational, enhancing security and convenience.
Features
- Weather Resistance: Designed to protect against rain and moisture, ensuring durability in outdoor environments.
- High-Quality Material: Constructed from robust materials for long-lasting performance.
- Easy Installation: User-friendly design for straightforward mounting on door stations.
- Compatibility: Specifically designed for use with Hikvision door station modules.
- Enhanced Aesthetics: Sleek design that complements modern architectural styles.
- Protection from Debris: Shields the door station from leaves and other environmental debris.
- UV Resistance: Materials that resist UV damage to maintain appearance over time.
- Improved Longevity: Extends the life of the door station by minimizing exposure to elements.
- Lightweight Design: Easy to handle and install without compromising structural integrity.
- Custom Fit: Tailored to fit the specific dimensions of the DS-KABD8003-RS3 module.
Technical Specifications
| General | Details |
|---|---|
| Working temperature | -40° C to +60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Weight | 702.3g |
| Dimension (W × H × D) | 325.8 x 116.4 x 58 mm (12.83" x 4.58" x 2.28") |
| Installation | 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. 2. Drill 4 holes align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) × 25 (depth) mm. 3. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts. Thread the module-connecting lines across the thread holes of the frame. Pass the main unit connecting lines across the thread hole to the top grid. Connect the cables and module-connecting line 1 to the corresponding interfaces of the main unit, then place the main unit into the upper grid. Connect the other end of the module-connecting line 1 to the input interface of the sub module. Connect two sub modules via module-connecting line 2. Organize the line with cable tie in the package. 4. Insert the modules into the frame after wiring. Main unit must be placed in the top grid. 5. Use the hexagon wrench in the package to fix the cover onto the frame. |
| Material | SECC |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Rain Shield of Module Door Station
The Rain Shield for the Module Door Station DS-KABD8003-RS3 is designed to enhance the durability and performance of the device in adverse weather conditions. Its robust construction provides effective protection against rain and moisture, ensuring reliable operation even during heavy downpours. The sleek design complements the aesthetic of the door station while offering practical functionality. Installation is straightforward, making it an ideal choice for both residential and commercial applications.
Key Features
- Convenient design available for the 3 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
- Material: SECC
Code/SKU: DS-KABD8003-RS3
Quick Specs:
- Working Temperature: -40° C to +60° C (-40° F to 140° F)
- Working Humidity: 10% to 95%
- Weight: 702.3g
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| General | Details |
|---|---|
| Working temperature | -40° C to +60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Weight | 702.3g |
| Dimension (W × H × D) | 325.8 x 116.4 x 58 mm (12.83" x 4.58" x 2.28") |
| Installation | 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. 2. Drill 4 holes align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) × 25 (depth) mm. 3. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts. Thread the module-connecting lines across the thread holes of the frame. Pass the main unit connecting lines across the thread hole to the top grid. Connect the cables and module-connecting line 1 to the corresponding interfaces of the main unit, then place the main unit into the upper grid. Connect the other end of the module-connecting line 1 to the input interface of the sub module. Connect two sub modules via module-connecting line 2. Organize the line with cable tie in the package. 4. Insert the modules into the frame after wiring. Main unit must be placed in the top grid. 5. Use the hexagon wrench in the package to fix the cover onto the frame. |
| Material | SECC |
