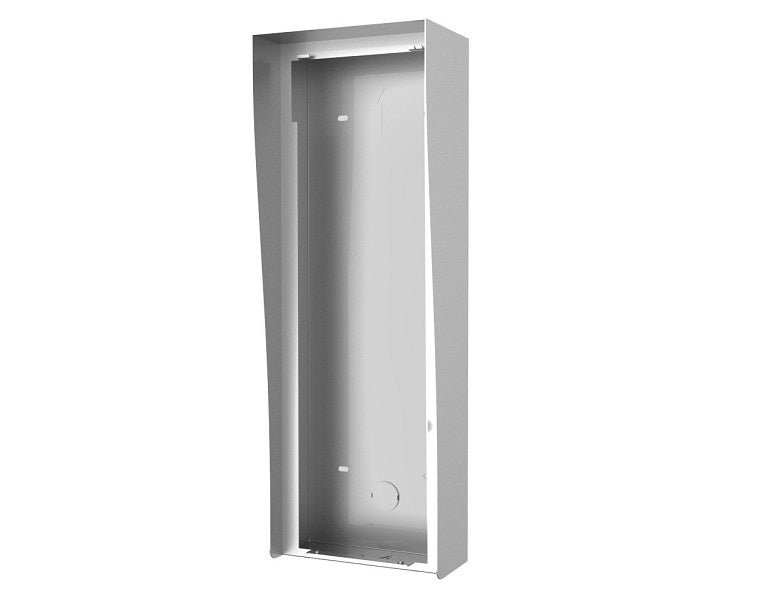

Hikvision DS-KAB10-D Video Intercom Housing

Model: DS-KAB10-D

Who This Is For

Property managers specifying intercom upgrades for exposed or high-traffic entry points will recognise the challenge of protecting door station hardware against weather, tampering, and the general wear that comes with public-facing installations. The DS-KAB10-D is a stainless steel surface mount housing designed specifically for the Hikvision DS-KD8102-V series IP intercom door station. It provides a professional, purpose-built enclosure that keeps the door station properly mounted and protected without requiring in-wall recessing. The housing is suited to commercial entries, multi-tenant residential buildings, gated facilities, and any site where a clean, durable surface mount is preferable to a flush installation. Its operating temperature range of -40°C to +70°C makes it relevant across Australian climates, from alpine environments to tropical north Queensland installations.

What This Housing Actually Does

Who Buys This Model

• Commercial Installers: Specifying DS-KD8102-V series door stations on masonry or concrete entry facades where recessing is not viable and a flush stainless steel result is expected by the client.
• Strata and Property Managers: Upgrading existing intercom hardware at multi-tenant residential buildings and needing a surface mount solution that minimises structural work to common area walls.
• Industrial Facility Managers: Installing access control intercoms at warehousing, manufacturing, or cold-storage entry points where the housing must handle temperature extremes and resist corrosion in harsh environments.
• Coastal Property Developers: Requiring stainless steel enclosures at entry points exposed to salt air, where standard powder-coated or plastic alternatives degrade quickly.

Honest Assessment

The DS-KAB10-D does one thing well: it provides a properly engineered, stainless steel surface mount enclosure for the DS-KD8102-V series door station that does not require wall recessing. The stainless steel construction and -40°C to +70°C temperature rating make it a sound specification for exposed outdoor entries, coastal sites, and industrial environments. Installation is straightforward for any installer already working with the DS-KD8102-V series, as fitment is direct with no adapter hardware required. What this housing will not do is expand compatibility to other intercom door station models - it is designed specifically for the DS-KD8102-V series and should not be purchased for use with other Hikvision door stations or third-party hardware. It is also a surface mount solution only; if your installation requires a fully flush or recessed result, a different mounting bracket is needed. Available through Security Australia as part of a complete Hikvision intercom system build.

Before You Buy

Quick Fit Check

• Good match if: You are installing a DS-KD8102-V series door station on a masonry, concrete, or solid wall surface where recessing is not practical and a stainless steel surface mount result is required.
• Good match if: Your site is coastal, industrial, or subject to temperature extremes - the stainless steel construction and -40°C to +70°C operating range suit environments where corrosion or heat degradation would affect a standard plastic housing.
• You may need a different model if: Your installation requires a fully flush or in-wall recessed result - a flush mount or recessed back box bracket is a more appropriate solution for those installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are surface mounting a DS-KD8102-V series door station on a solid wall and need a stainless steel enclosure with a confirmed temperature rating for exposed or harsh environments.
• You may need a different model if: Your installation calls for a fully recessed, in-wall result - a flush mount back box or recessed bracket accessory is the appropriate product type for that application.
• Pairs well with: DS-KD8102-V series IP intercom door stations, indoor IP intercom monitors, and PoE access control hardware as part of a complete building entry system.

Common Questions

1. Will the DS-KAB10-D fit any Hikvision intercom door station, or only specific models?

   Only specific models. The DS-KAB10-D is engineered for the Hikvision DS-KD8102-V series IP intercom door station. The internal dimensions, mounting points, and cable routing provisions are matched to that series. Purchasing this housing for a different door station model is likely to result in fitment problems.

2. Does this housing require any wall recessing or cutting?

   No. The DS-KAB10-D is a surface mount enclosure that attaches directly to the wall face. No recessing or wall cutting is required, which is the primary reason installers choose this housing for masonry and concrete entries where cutting in is not practical or cost-effective.

3. Is the DS-KAB10-D suitable for outdoor installation in harsh Australian conditions?

   Yes. The stainless steel construction resists corrosion and the confirmed working temperature range of -40°C to +70°C covers the full range of Australian outdoor conditions, including unshaded west-facing entries in Queensland, alpine cold weather sites, and coastal environments with salt air exposure.

4. What are the exact dimensions of the DS-KAB10-D?

   The confirmed dimensions are 489.6 mm x 171.88 mm x 105.41 mm (L x W x H). The 105.41 mm depth is the key measurement for surface mount planning - this is how far the housing projects from the wall face, which should be factored into cable conduit routing and the visual profile at the entry point.

5. Does the housing include the door station, or is it the enclosure only?

   Enclosure only. The DS-KAB10-D is the protective housing and mounting structure - the DS-KD8102-V series door station is purchased separately. If you need the complete door station and housing together, the team at Security Australia can assist with confirming compatible model combinations before ordering.

6. Will this housing work for a cold storage or refrigerated facility entry point?

   Yes. The -40°C lower operating limit makes the DS-KAB10-D suitable for cold storage facilities, cool rooms, and refrigerated loading dock entry points where standard outdoor housings may not be rated for those temperatures.

Downloads & Resources

• DS-KAB10-D Datasheet (Hikvision)
