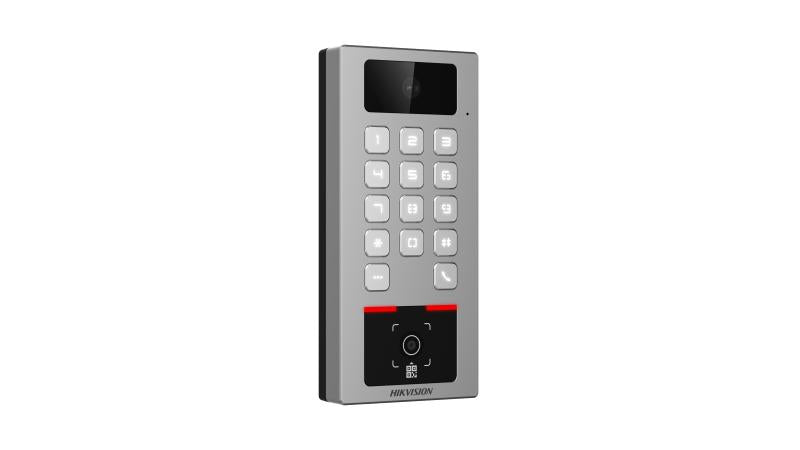

Hikvision DS-K1T502DBWX-CQRE1 Face Recognition Terminal with QR Code & WiFi PoE Power

Model: DS-K1T502DBWX-CQRE1

Who This Is For

When managing multiple entry credentials across apartments, residential complexes, or villa-style developments is the priority, the Hikvision DS-K1T502DBWX-CQRE1 addresses it with three contactless verification methods in a single wall-mounted terminal. This unit combines face recognition, QR code scanning, and WiFi connectivity, making it suited to strata managers, property developers, and access control installers who need a flexible front-door solution without relying entirely on hardwired card infrastructure. The built-in PoE power input simplifies installation considerably - a single Cat5e or Cat6 run to the door position handles both data and power, removing the need for a separate 12V supply at the terminal. It fits naturally into new apartment buildings and residential gate entries where visitor access, delivery management, or resident self-registration are ongoing requirements.

What This Terminal Actually Does

Who Buys This Model

• Strata and apartment complex managers: Who need to issue temporary QR access to visitors and tradespeople without handing out physical credentials or managing key returns.
• Residential property developers: Specifying a single entry terminal that covers face recognition, QR, and intercom call functions without installing separate devices for each.
• Access control installers: Working on villa or townhouse intercom jobs where PoE simplifies door-position wiring and WiFi provides flexible network integration options.
• Short-stay rental operators: Who need to issue and revoke time-limited QR codes remotely for guest turnovers without physical key handovers or lockbox arrangements.

Honest Assessment

The DS-K1T502DBWX-CQRE1 does a specific job well: it consolidates face recognition, QR code access, WiFi, and PoE power into one terminal suited to residential and light-commercial entry points. For apartment buildings and villa intercom setups already using the Hikvision ecosystem, the integration path is straightforward and the PoE input genuinely reduces installation complexity at the door position. The QR credential option is a practical differentiator for managed-access environments where visitor or temporary access is common. Where this terminal is not the right fit is in high-throughput commercial environments - a dedicated enterprise access controller with anti-passback, multi-door interlocking, or high-volume card processing will suit those sites better. It is also worth confirming your intercom system generation compatibility before purchasing. This model is available through Security Australia and is positioned for residential and small-site access control rather than large-scale commercial deployment.

Before You Buy

Quick Fit Check

• Good match if: You are installing an entry terminal at an apartment building or villa where residents need hands-free face recognition access and you want to issue QR codes to visitors or short-term guests without physical credentials.
• Good match if: Your installation benefits from PoE-powered door hardware and you are working within the Hikvision Gen2 intercom ecosystem where this terminal integrates with indoor stations and management software.
• You may need a different model if: Your site requires high-volume multi-door access control with anti-passback, elevator control, or enterprise-grade time-attendance reporting - a dedicated access control panel and reader combination will serve those requirements more completely.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your entry point needs face recognition and QR code access combined in a PoE-powered terminal that integrates with the Hikvision Gen2 intercom ecosystem - particularly for apartments and villa installations where temporary visitor access is a recurring requirement.
• You may need a different model if: Your project involves multi-door access control across a commercial building with centralised management, anti-passback zones, or high-volume card throughput - a dedicated access control panel with separate readers will handle that scale more effectively.
• Pairs well with: Hikvision Gen2 indoor stations, PoE switches with sufficient power budget, and a compatible video intercom management platform for credential and QR code administration.

Common Questions

1. Does this terminal work with older Gen1 Hikvision intercom indoor stations?

   No. The DS-K1T502DBWX-CQRE1 is a Gen2 Hikvision intercom terminal and is not cross-compatible with Gen1 indoor stations or Gen1 management platforms. If your building already has a Gen1 intercom system, you would need to upgrade the indoor stations and associated infrastructure to Gen2 components before adding this terminal. Confirm the generation of your existing equipment before purchasing.

2. Will this terminal work as a standalone door controller without a server or NVR?

   Yes, to a degree. The terminal can perform local face recognition and QR code verification without a constant server connection, meaning door release will still function during a network interruption. However, remote credential management, QR code issuance, and access log retrieval require connectivity to a compatible management platform or Hikvision intercom system.

3. Does this terminal work for short-stay rental properties where guest access changes frequently?

   Yes. The QR code credential function is well suited to short-stay rental turnover. Time-limited QR codes can be issued for a specific booking window and expire automatically, removing the need for physical key handovers or lockbox management. This is one of the more practical applications for this terminal type in residential property management.

4. What PoE standard does this terminal require?

   The terminal is PoE powered, but you should verify the exact power draw against your switch or NVR's PoE output before installation. Face recognition terminals with built-in cameras and displays typically draw more power than a standard IP camera - confirm your PoE source meets the terminal's power requirement to avoid instability or failed startup. This is particularly important if you are powering the terminal from a PoE port on a budget switch with a shared power budget across multiple ports.

5. How reliable is the WiFi connection for day-to-day operation?

   WiFi performance at a door entry position depends heavily on the building construction. Concrete and masonry walls - common in apartment buildings - attenuate 2.4GHz and 5GHz signals significantly. If signal strength at the terminal position is marginal, a wired Cat6 Ethernet connection is the more dependable path for consistent system communication, even though the WiFi capability remains available. Test signal strength at the mounting location before finalising the installation method.

6. Can QR codes be issued and revoked remotely without attending the site?

   Yes. When the terminal is connected to a compatible Hikvision intercom management platform, QR credentials can be generated, distributed, and revoked remotely through the software interface. This is how building managers and rental operators issue access to visitors, contractors, and guests without needing to be physically present at the terminal. The specific platform and app options available through Security Australia can be confirmed at point of purchase.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for PoE-powered terminals to minimise voltage drop over longer runs.
• Max Cable Run: Up to 100m from PoE switch to terminal for standard Ethernet - keep runs as short as practical to maintain PoE voltage stability.
• PoE Notes: Confirm the PoE source (switch port or NVR PoE port) meets the terminal's power draw requirement. Face recognition terminals with displays draw more power than standard IP cameras. Avoid sharing a low-budget PoE switch's total power budget across too many devices simultaneously.
• Wiring Tips: If using WiFi for network communication, you still need a PoE cable run to the terminal for power. Route the cable internally where possible to protect it from weather exposure at the entry point. Install the cable conduit before wall finishing on new builds to simplify future cable replacement.
