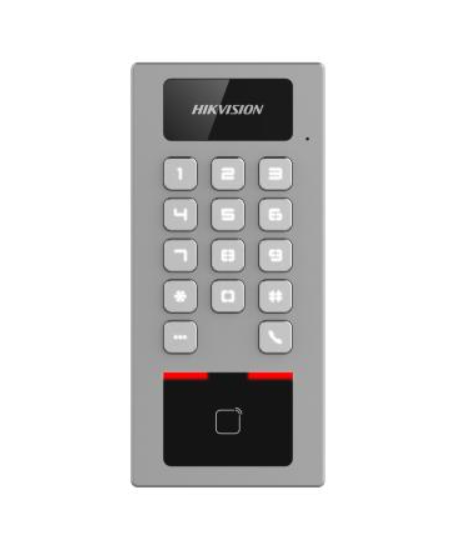

Hikvision DS-K1T502DBWX Access Control Terminal with Intercom (no camera)

Model: DS-K1T502DBWX

Who This Is For

For security installers and facilities managers who need a ruggedised access control terminal that handles card-based entry and two-way intercom communication at a single door point. The Hikvision DS-K1T502DBWX suits commercial buildings, warehouses, schools, and multi-tenant properties where a high card credential capacity - up to 100,000 cards - and a robust outdoor rating matter as much as the intercom function itself. It operates without a built-in camera, making it the right choice where a separate IP video intercom station is already part of the design or where privacy regulations make lens-equipped entry terminals undesirable. With an IK09 impact rating, IP65 weatherproofing, and a working temperature range of -40°C to +70°C, it handles exposed entrance installations that would compromise lesser terminals. Wi-Fi connectivity and Hik-Connect support mean remote management is straightforward without running additional cabling to every door.

What This Terminal Actually Does

Who Buys This Model

• Commercial Building Managers: Managing multi-tenant offices or strata buildings who need a high card capacity terminal (up to 100,000 credentials) that handles staff and contractor access without a server-side database per door.
• School and Education Facility Installers: Deploying access control at gates and building entries where a camera-equipped terminal raises privacy concerns but two-way intercom communication to admin is still required.
• Industrial Site Integrators: Installing at loading dock entries, plant rooms, or perimeter gates where the -40°C to +70°C operating range and IK09 impact resistance justify the terminal over a lighter-duty alternative.
• Hikvision Access Control Installers: Expanding existing Hik-Connect or Hikvision access control deployments who need a card reader terminal with RS-485 and Wiegand output to tie into established controllers and alarm systems.
• Retrofit Access Projects: Replacing older intercom-only entry panels at commercial premises where the existing wiring supports a 12VDC to 24VDC supply and the installer wants to add card credential management without a separate reader.

Honest Assessment

The DS-K1T502DBWX is a well-specified outdoor access terminal for installations where credential volume, build quality, and intercom functionality matter more than built-in video. The 100,000-card capacity and 300,000-event log make it appropriate for genuinely large deployments, not just small office entries. IK09 and IP65 protection are genuine differentiators at this product tier, and the combination of RS-485, Wiegand output, and onboard lock control means a complete single-door setup is achievable with this unit as the centrepiece. The card reading distance of 0-3 cm is a short-range contactless read - this is standard for M1 and DESfire formats but worth noting during layout planning. This terminal does not include a built-in camera; where video verification at the door is a firm requirement, a video intercom terminal or a combined camera and reader solution available through Security Australia would be the more appropriate choice. The Wi-Fi option is convenient for retrofit installs but wired network remains preferable for permanent commercial deployments.

Before You Buy

Quick Fit Check

• Good match if: You are installing at an exposed external entrance - a school gate, industrial entry, or car park boom gate - where IK09 impact resistance and IP65 weatherproofing are required and a built-in camera is not needed or not permitted.
• Good match if: Your deployment involves a large credential database - multiple tenants, staff, and contractors - where the 100,000-card onboard capacity and 300,000-event log mean you are not constrained by the terminal's storage from day one.
• You may need a different model if: Video verification at the door is a core requirement - a video intercom terminal or face recognition access terminal with a built-in camera would be more appropriate for that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a high-capacity card reader with two-way intercom and a fully rated outdoor housing but do not require a built-in camera at the door - and you want a single terminal that also handles lock control, alarm I/O, and RS-485 integration.
• You may need a different model if: Visual verification of visitors is a core requirement - a video intercom terminal with a built-in camera would better suit that scenario.
• Pairs well with: A Hikvision indoor video intercom station or IP master station to handle the two-way audio and video call receiving end, plus a Hikvision access controller for multi-door deployments where centralised credential management is needed.

Common Questions

1. Does this terminal have a built-in camera?

   No. The DS-K1T502DBWX does not include a built-in camera. It handles card reading, two-way audio intercom, lock control, and alarm I/O but has no video capture at the terminal itself. The H.264/H.265 video compression specification relates to video intercom stream handling with compatible indoor stations - it does not mean the unit has its own lens or image sensor.

2. Will this terminal work with a third-party access controller?

   Yes, in most cases. The terminal includes both an RS-485 interface and a Wiegand output, which are the 2 most common integration interfaces for third-party access controllers. Wiegand output allows the terminal to pass credential data to an existing controller. RS-485 enables communication with compatible Hikvision or third-party panels. Confirm your controller's supported input type before finalising the wiring design.

3. Does this terminal support PoE power?

   No. The DS-K1T502DBWX requires a 12VDC to 24VDC DC power supply at up to 1A - it does not accept PoE. A separate power supply or regulated DC feed is needed at the door. The network connection (wired or Wi-Fi) handles data only and does not carry power.

4. What card types does this terminal read?

   The terminal reads M1 (Mifare Classic) cards and DESfire (Mifare DESfire EV1/EV2) cards. The card reading distance is 0-3 cm, which is standard for these contactless formats. If your existing site uses a different card technology - such as HID iClass or EM125kHz proximity - you will need to re-issue credentials in a compatible format before deployment.

5. Can the terminal be managed remotely without an on-site visit?

   Yes. The DS-K1T502DBWX supports Hik-Connect, which allows remote card management, event log access, and device configuration via Hikvision's cloud platform. Wi-Fi support means a local network connection can be established without a data cable run in retrofit installations. Security Australia stocks compatible Hikvision indoor stations and controllers for those building a complete managed system.

6. Is the two-way audio usable outdoors in a noisy environment?

   The two-way audio is supported via built-in speaker and microphone. Performance in high-ambient-noise environments - such as busy loading docks or plant rooms - will depend on placement and speaker volume. The terminal is IP65 rated so rain and wind do not damage the audio components, but positioning the unit in a sheltered recess will improve voice clarity in exposed installations.

7. How many events can the terminal log before records are overwritten?

   The onboard event capacity is 300,000 records. At a busy commercial entry processing 500 badge events per day, that represents approximately 600 days of local storage before the oldest records cycle. For longer retention or centralised audit requirements, connecting the terminal to a Hikvision access control server or regularly exporting logs via the management platform is the appropriate approach.

Cabling Considerations

• Power Cable: Use a minimum 0.75 mm2 two-core cable for the 12VDC to 24VDC supply run. For cable runs exceeding 20 m, increase conductor cross-section to account for voltage drop and confirm the terminal still receives within its 12-24VDC input range at the far end.
• Network Cable: Cat5e or Cat6 to the terminal's RJ45 port for wired network. Maximum recommended run is 100 m per standard Ethernet spec. If Wi-Fi is used instead, confirm signal strength at the mounting location before finalising the installation.
• Lock Control Wiring: The lock control output is a low-voltage interface terminal - connect your electric strike or magnetic lock power supply separately. Do not attempt to power a high-current lock directly from the terminal output.
• RS-485 / Wiegand: Shielded twisted pair (STP) cable is recommended for RS-485 runs, particularly in industrial environments with electrical interference. Keep RS-485 and Wiegand runs separate from mains power cables where possible to avoid signal noise.
• Alarm and Door Contact: Standard 2-core alarm cable is suitable for the door contact input, exit button, and alarm input/output terminals. Label all terminals during installation to simplify future servicing.
