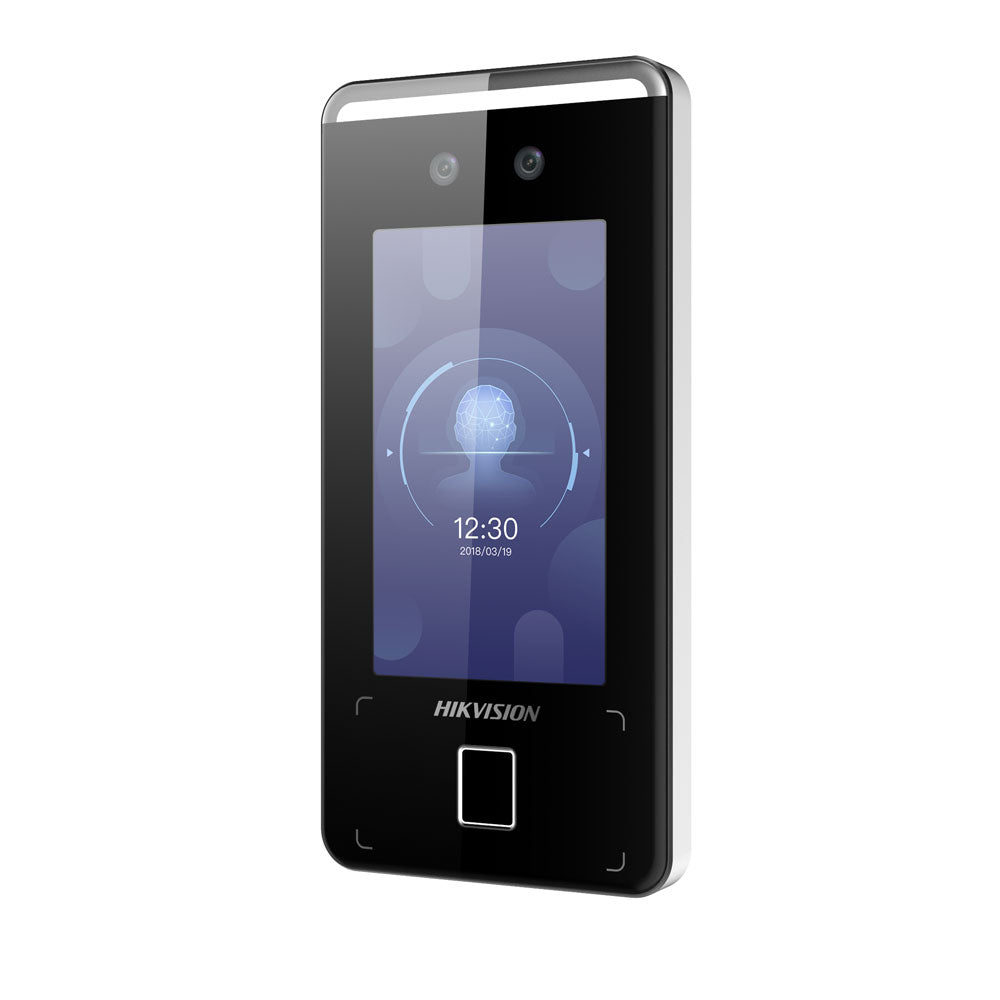

Hikvision DS-K1T341AMF 4.3" Facial Recognition Touch Screen, 2MP, Mifare, 1,500 Faces, with Fingerprint

Model: DS-K1T341AMF

Who This Is For

When a single credential method is not enough for the entry points you are specifying, the Hikvision DS-K1T341AMF gives installers three independent verification options in one wall-mounted terminal - facial recognition, Mifare card, and fingerprint. It suits commercial and light-industrial sites where identity verification at a door needs to be fast, auditable, and hands-free capable: corporate offices managing staff access, aged care facilities controlling secure wing entry, childcare centres verifying authorised pickup, or strata buildings replacing legacy PIN pads. The 4.3" touchscreen, IP65 housing, and two-way video and audio back to an iVMS platform or indoor station mean the DS-K1T341AMF functions as both an access terminal and a visitor intercom in a single device - reducing hardware count and wall penetrations on any new build or retrofit project.

What This Terminal Actually Does

Who Buys This Model

• Corporate Office Fit-Out Installers: Specifying a single terminal that handles staff identification, visitor intercom, and door release without separate reader, intercom, and controller hardware at each entry point.
• Aged Care and Healthcare Facilities: Where residents or patients should not be managing cards or PINs, facial recognition provides hands-free access control at internal secure doors within the facility.
• Strata and Building Managers: Replacing legacy keypad entry on main lobby doors where a touchscreen terminal with Mifare card backup covers residents who have not yet enrolled their face.
• Access Control Integrators Retrofitting Existing Systems: The Wiegand output (26 or 34-bit) lets the DS-K1T341AMF slot in front of a current access controller, adding facial recognition to a site without replacing the full backend infrastructure.

Honest Assessment

The DS-K1T341AMF does its primary job well: fast facial recognition at under 0.2 seconds with a stated accuracy above 99%, combined with Mifare card and fingerprint fallback, gives installers genuine multi-factor flexibility in one IP65 housing. The two-way video and audio capability via RTSP and iVMS integration reduces hardware count at entry points where a visitor intercom would otherwise be a separate device. The 150,000 event log is practical for compliance-sensitive environments. Where this terminal has limits: the 1,500-face capacity suits mid-size deployments but is not designed for large enterprise sites with thousands of enrolled users - a server-based access control platform with dedicated facial recognition would be more appropriate there. It also requires 12V DC at up to 24W, so PoE-only infrastructure will need a midspan or local power supply. The DS-K1T341AMF is available through Security Australia and suits installers working on commercial, healthcare, and strata projects where a combined access and intercom solution is the brief.

Before You Buy

Quick Fit Check

• Good match if: You are installing at a commercial entry where staff need hands-free access and visitors need to be visually verified and buzzed in - the two-way video and audio to iVMS or indoor station handles both functions from one device.
• Good match if: You need to add facial recognition to an existing access control system - the selectable 26 or 34-bit Wiegand output connects the DS-K1T341AMF directly to most installed access controllers without replacing the backend.
• You may need a different model if: Your site has more than 1,500 enrolled users or requires centralised face database management across dozens of entry points - a server-based access control platform with higher-capacity facial recognition is better suited to large enterprise deployments.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need facial recognition, Mifare card, and fingerprint all in one IP65 terminal that also handles two-way video and audio intercom to an indoor station or iVMS - replacing two or three separate devices at the entry point.
• You may need a different model if: Your deployment requires more than 1,500 enrolled users or centralised face database management across a multi-site enterprise - a server-based access control platform with higher-capacity facial recognition processing is better suited to those environments.
• Pairs well with: A compatible Hikvision indoor room station for two-way video intercom, a Hikvision NVR or iVMS-4200 installation for RTSP stream recording, and a door controller or electric strike for the relay output.

Common Questions

1. Does this terminal work with an existing Wiegand access control system?

   Yes. The DS-K1T341AMF includes a Wiegand output selectable between 26-bit and 34-bit, which connects directly to most installed access controllers. The terminal acts as the reader front-end, sending verified credential data to the existing controller - so you add facial recognition and multi-factor authentication without replacing your current backend access control infrastructure.

2. Will this work as a standalone door controller without a separate access control panel?

   Yes, for straightforward single-door applications. The onboard relay output can directly drive an electric strike or magnetic lock, with the terminal managing enrolment and access decisions locally. For multi-door sites requiring centralised user management, linking to a Hikvision access control platform via the network connection is the more practical approach.

3. How accurate is the facial recognition and how quickly does it respond?

   The stated accuracy is greater than 99% with a response time under 0.2 seconds. Recognition operates across a 0.3-3m distance using dual 2MP cameras with a 108-degree horizontal field of view. Consistent frontal lighting on the subject's face is the main practical variable that affects real-world accuracy - strong backlight from behind the user can reduce performance.

4. Does the DS-K1T341AMF support PoE for power?

   No. The terminal requires 12V DC at 2A with a maximum consumption of 24W. It does not accept PoE directly from a network switch. A local 12V power supply must be provided at each installation point. The network connection is separate via 10/100/1000 Mbps Ethernet for data, configuration, and RTSP video stream.

5. Can the video from this terminal be recorded on an NVR?

   Yes. The DS-K1T341AMF outputs an RTSP video stream at up to 1080p at 30fps encoded in H.264, which is compatible with most Hikvision NVRs and iVMS-4200. This means the entry point video can be recorded and reviewed alongside security camera footage without a separate recording device dedicated to the terminal.

6. How does the two-way video and audio intercom work?

   When a visitor presses to call, the terminal initiates a two-way video and audio session to a connected Hikvision indoor room station or to a workstation running iVMS-4200. The operator at the indoor station sees the visitor via the 2MP camera and can speak with them before remotely releasing the door via the software or station interface. The terminal does not require a separate intercom panel at the door.

7. What is the maximum number of users this terminal can store?

   The DS-K1T341AMF stores 1,500 faces, 1,500 Mifare cards, and 1,500 fingerprints on the device, along with a 150,000 event log. For sites with larger user populations or multi-terminal deployments requiring centralised user database management, the terminal should be networked to a Hikvision access control server platform rather than managed locally. The team at Security Australia can advise on platform options for larger-scale deployments.

Cabling Considerations

• Network Cable: Cat5e or Cat6 for the 10/100/1000 Mbps Ethernet connection - carries data, configuration, RTSP video stream, and intercom communication.
• Power Cable: Separate 12V DC power run required - the terminal draws up to 24W so a dedicated 12V 2A supply at the door position is needed. Do not share supply with lock hardware without calculating combined current draw.
• Lock Wiring: 2-core cable from the relay output to the electric strike or magnetic lock. Factor in lock hold current against the relay rating and use a separate lock power supply for magnetic locks with higher draw.
• Wiegand: If connecting to a legacy access controller, standard Wiegand data runs (DATA0, DATA1, GND) from the terminal to the controller panel - keep runs under 100m and use shielded cable in electrically noisy environments such as plant rooms or car parks.
• Conduit Planning: The terminal mounts at door-height on the latch side, so rough-in conduit for power, network, and lock wiring should be positioned to exit the wall behind the terminal backplate - confirm exact backplate dimensions before setting conduit positions during fit-out.

Product Video Samples

Downloads & Resources

No downloads available for this product.
