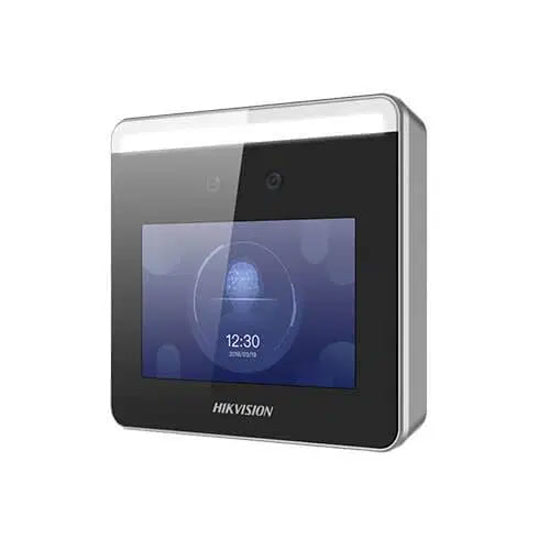

Hikvision DS-K1T331 Facial Recognition Terminal

Model: HIKVISION DS-K1T331NW

Who This Is For

Property managers specifying access control for indoor entry points - office lobbies, staff-only corridors, gym reception desks, or childcare centre entry vestibules - will find the Hikvision DS-K1T331NW a practical fit for controlled-access environments where card or PIN-based entry is being replaced or supplemented with facial recognition. The terminal stores up to 1,000 face templates and performs 1:N recognition in under 0.2 seconds, meaning staff move through the door without breaking stride. The 3.97-inch touch screen keeps the interface straightforward for daily use, and the built-in interface set covers electric lock, door contact, exit button, and RS-485, so it connects directly into most standard access control wiring layouts without additional controllers for single-door applications.

What This Product Actually Does

Who Buys This Model

• Office fitout contractors: Specifying a touchless entry solution for a single staff-access door where a standalone terminal with onboard lock control is simpler than a full access controller and separate reader.
• Gym and fitness centre operators: Needing to manage member entry without front desk staffing at all hours - the 1,000-face capacity suits a typical member database for a single-site facility.
• Childcare and education facilities: Controlling staff-only areas where a card-free, PIN-free credential is preferred for hygiene or ease of use, and where the WDR camera handles variable lobby lighting reliably.
• Small strata and apartment buildings: Installing a resident-facing terminal at a lobby or carpark pedestrian gate where the hybrid face-plus-card configuration suits a mixed resident profile.

Honest Assessment

The DS-K1T331NW handles single-door facial recognition access control with a compact footprint - at 120 x 110 x 23 mm it sits flush and unobtrusive on most wall surfaces. The sub-0.2s recognition speed and 150,000-event log are genuine operational strengths, and the direct electric lock interface keeps single-entry installations straightforward. The WDR dual-lens camera addresses the most common recognition failure point at lobbies: harsh backlit conditions near glass entry doors. Where this terminal reaches its limit is scale. A 1,000-face capacity and single-door output means it is not suited to multi-door enterprise deployments or sites needing centralised access management across several entry points without additional infrastructure. It is rated for indoor use only, so external entry points exposed to weather require a different product type. Available through Security Australia, the DS-K1T331NW suits focused single-entry applications where simplicity and speed of deployment matter more than large-scale expansion.

Before You Buy

Quick Fit Check

• Good match if: You are controlling a single indoor entry point and want facial recognition with onboard lock control and event logging without a separate access controller.
• Good match if: Your site has up to 1,000 users and you want the option to run hybrid face-plus-card credentials via an externally connected card reader over RS-485.
• You may need a different model if: You need outdoor installation, multi-door control across a larger site, or a user database well above 1,000 faces - a multi-door access controller or outdoor-rated terminal would be a more appropriate product type for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a self-contained, single-door facial recognition terminal with onboard lock control, local event logging, and optional card reader expansion - all in a compact indoor unit.
• You may need a different model if: Your site requires outdoor installation, multi-door control from a single device, or a user database beyond 1,000 faces - a multi-door access controller paired with outdoor-rated readers would be a more suitable product type.
• Pairs well with: A network video recorder or VMS for centralised event management, or a multi-door access control platform if the installation grows to cover additional entry points.

Common Questions

1. Does the DS-K1T331NW support PoE power?

   No. The terminal requires a dedicated 12 V DC, 1.5 A (18 W) power supply - it does not support PoE. During installation, a separate 12 V power cable must be run to the terminal alongside your Cat5e or Cat6 data cable. Plan your cable route to include both runs before the terminal is mounted.

2. How many people can be enrolled in the face database?

   Up to 1,000 face templates can be stored locally on the terminal. This is sufficient for most single-site small-to-medium installations. If an external card reader is connected via the RS-485 interface, card credential capacity extends to 1,500 entries, which can operate alongside the face database.

3. Will this terminal work for an outdoor entry point?

   No. The DS-K1T331NW is rated for indoor use only. It has no ingress protection rating and is not designed to withstand rain, humidity above 90%, or temperature extremes beyond -10 °C to 55 °C in an exposed outdoor setting. For an outdoor-facing entry point, you would need an outdoor-rated access terminal with an appropriate IP rating.

4. Does it need a separate access controller to drive the door lock?

   No. The terminal has a built-in electric lock output, door contact input, exit button input, and tamper input, so it can control a single door directly without an external access controller. This makes it a standalone single-door solution straight out of the box.

5. How does the dual-lens camera handle challenging lighting at a lobby entry?

   The 2 MP dual-lens camera includes wide dynamic range (WDR), which is specifically designed to handle scenes where bright and dark areas are simultaneously in frame - such as a lobby with glass doors and a brighter exterior behind approaching users. WDR balances the exposure so the face remains usable for recognition rather than appearing overexposed or silhouetted.

6. What is the recognition distance, and does mounting height matter?

   Yes, mounting height matters significantly. The effective recognition range is 0.3 m to 1.5 m from the terminal. The terminal should be mounted so that an average-height adult's face falls within this window at a natural standing distance from the door. Mounting too high forces users to step back or look up, which can push the face outside the recognition envelope and increase failed authentication attempts. The team at Security Australia can advise on mounting height for specific door configurations.

7. Can the terminal store access event logs locally?

   Yes. Up to 150,000 access events are logged onboard the terminal. This provides a substantial on-device audit trail covering entry attempts, successful authentications, and denials - accessible without requiring a connected server or VMS to be online at the time of the event.

Cabling Considerations

• Data Cable: Cat5e or Cat6 for TCP/IP network connection (10/100 Mbps, self-adaptive).
• Power Cable: Separate 12 V DC cable required - minimum 1.5 A capacity. Do not rely on PoE; this terminal requires a dedicated power run.
• Lock Wiring: Run lock cable (typically 2-core) to the electric lock output on the terminal. Ensure lock power draw is within the terminal's output rating.
• RS-485 for External Card Reader: If adding an external card reader, run a shielded twisted-pair cable between the reader and the RS-485 terminals. Keep the RS-485 run as short as practical and ensure correct termination to avoid communication errors.

Product Video Samples

Downloads & Resources

No downloads available for this product.
