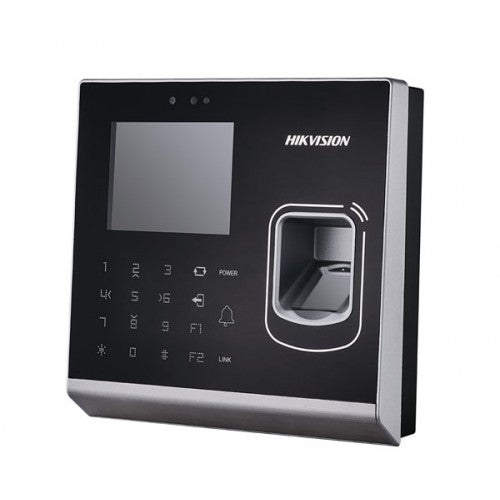

Hikvision DS-K1T201MF-CN Single Door Stand Alone Access Control Terminal with Fingerprint Reader

Model: DS-K1T105M-CN-1

Who This Is For

Property managers specifying single-door access control for offices, strata buildings, or small commercial sites will find the Hikvision DS-K1T201MF-CN a practical fit. This stand-alone terminal handles door access without requiring a dedicated controller panel - it operates independently, stores up to 100,000 card numbers and 300,000 events onboard, and connects to a network via wired TCP/IP or Wi-Fi. The built-in optical fingerprint reader supports both 1:1 verification and 1:N identification, and the terminal accepts Mifare cards, PIN codes, or combinations of all three. For sites where a full enterprise access system is unnecessary but a basic proximity reader is not enough, the DS-K1T201MF-CN sits in a useful middle ground. It suits reception doors, server rooms, staff entrances, and any single-door application where credential flexibility and local event logging matter more than multi-door centralised control.

What This Terminal Actually Does

Who Buys This Model

• Small business owners: Replacing a basic keypad or proximity-only reader on a single staff entry door, wanting fingerprint authentication so lost cards do not create a security gap.
• Strata and property managers: Installing stand-alone access control at a gym, basement carpark, or plant room where a network-connected panel is not warranted but event logging and card management are still required.
• IT and server room managers: Specifying multi-factor authentication (card plus fingerprint) at a high-security door within a facility that does not have a full access control system.
• Electrical and security installers: Deploying a simple, self-contained terminal that can be configured via the onboard keypad or managed remotely through iVMS-4200, without needing a separate controller panel.
• Integrators working with existing infrastructure: Using the Wiegand 26/34 or RS-485 output to feed credentials from this reader into a third-party access control panel already on site.

Honest Assessment

The DS-K1T201MF-CN handles credential flexibility well. The combination of Mifare card, optical fingerprint, and PIN - in various combinations - gives administrators genuine control over authentication strength per door. Onboard storage of 100,000 card records and 300,000 events means the terminal is genuinely self-sufficient for small to mid-sized deployments. Wi-Fi connectivity is a practical option for retrofit installs where cabling is disruptive. The 2MP camera logs a face capture at each event, providing a useful visual audit trail through iVMS-4200, stocked by Security Australia.

Where this terminal falls short: it is designed for single-door stand-alone use. Sites needing centralised management of multiple doors, time-and-attendance reporting across a workforce, or face recognition-based authentication (rather than face detection only) will need a more advanced access control platform. The optical fingerprint sensor can also be affected by wet or heavily worn fingers - for high-throughput or outdoor use, a multi-technology terminal may serve better.

Before You Buy

Quick Fit Check

• Good match if: You need a single-door terminal that operates independently without a controller panel, and your site requires fingerprint plus card or fingerprint plus PIN authentication to prevent tailgating on a shared credential.
• Good match if: You are replacing an older reader in a location where running a new data cable is difficult - the Wi-Fi connectivity option allows the terminal to report events and receive credential updates over your existing wireless network.
• You may need a different model if: Your site has multiple controlled doors requiring centralised management, anti-passback enforcement, or time-and-attendance integration - a full access control panel and controller-based system from the Security Australia access control range will be more appropriate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single-door stand-alone terminal with optical fingerprint, Mifare card, and PIN authentication in various combinations, without requiring a separate access control panel or controller.
• You may need a different model if: Your deployment covers multiple doors or requires centralised anti-passback, time-and-attendance, or elevator control - a controller-based access control system will provide the management architecture that a stand-alone terminal cannot.
• Pairs well with: A PoE-capable IP camera for external door coverage, a compatible electric strike or magnetic lock, and iVMS-4200 for credential and event management.

Common Questions

1. Does this terminal perform face recognition to unlock the door?

   No. The 2MP camera performs face detection and picture capture only - it does not use facial recognition as an authentication method. The camera logs a photo with each access event for audit purposes. Authentication is handled by fingerprint, Mifare card, PIN, or a combination of those credentials.

2. Will this terminal work without being connected to a network?

   Yes. The DS-K1T201MF-CN is designed for stand-alone offline operation. It stores up to 100,000 card credentials and 300,000 access events onboard, so the door continues to operate normally during a network outage. Events are buffered and can be retrieved once the connection is restored.

3. Can this terminal connect to an existing third-party access control panel?

   Yes. The terminal outputs Wiegand 26 and Wiegand 34 as well as RS-485, which are standard interfaces on the majority of access control panels. In this configuration the terminal acts as a credential reader, passing authentication decisions to the panel rather than controlling the door lock directly. Check your panel's supported input format before wiring.

4. How many users and cards can the terminal store?

   The terminal stores up to 100,000 valid card numbers and up to 300,000 access control events. For most single-door small to medium business applications, this capacity is more than sufficient. Credential management at scale is handled through iVMS-4200 software, which allows bulk import and scheduling without programming each user on the keypad individually.

5. Does the fingerprint reader work for outdoor installations or high-traffic entry points?

   It depends on the environment. The optical fingerprint module can be affected by wet, dirty, or significantly worn fingers, which can reduce read reliability in outdoor or high-throughput settings. The terminal is better suited to indoor applications such as offices, plant rooms, and internal strata doors. For outdoor or high-traffic entry points, a terminal with a more robust fingerprint sensor or an alternative credential type may be more appropriate. The Security Australia access control range includes options suited to more demanding environments.

6. What software is needed to manage this terminal remotely?

   iVMS-4200 is the recommended management software. It is a free Hikvision application available for Windows PC. Through iVMS-4200 you can add and delete users, assign authentication modes, set access schedules, and retrieve event logs including the captured photos. Basic local configuration - adding cards and setting the time - can also be done directly on the terminal via the touchscreen keypad and 2.8-inch LCD without any software.

7. Does the terminal support fingerprint-only access, or does a card always have to be present?

   Yes, fingerprint-only (1:N) mode is supported. In this mode the terminal searches the stored fingerprint database to identify the user without requiring a card. This is distinct from 1:1 mode, where a card is presented first and the fingerprint is used to verify that the cardholder is the correct person. Either mode, or a combination, can be assigned depending on the security requirement at the door.

Cabling Considerations

• Network Cable: Cat5e or Cat6 for wired TCP/IP connection to network switch or router. Standard RJ45 termination.
• Power Cable: 12VDC power supply is included. Run appropriate DC wiring from the power supply location to the terminal mounting position - keep runs short to minimise voltage drop.
• Lock Wiring: Door lock power must be supplied separately. Confirm lock voltage and current draw, and whether the lock is fail-safe or fail-secure, before specifying your lock power supply. The terminal provides a relay output to switch the lock - the lock power itself is independent.
• Wiegand / RS-485: If connecting to an external panel or controller, use shielded twisted pair cable for Wiegand or RS-485 runs. Keep Wiegand runs under 150 metres and RS-485 runs under 1,200 metres for signal integrity. Terminate RS-485 bus correctly if multiple devices share the same line.
• Wi-Fi Option: If installing without a data cable, confirm Wi-Fi signal strength at the door mounting position before finalising the installation. Walls, metal door frames, and distance from the access point can all reduce signal reliability. A site survey is recommended before committing to a wireless install in uncertain RF environments.
