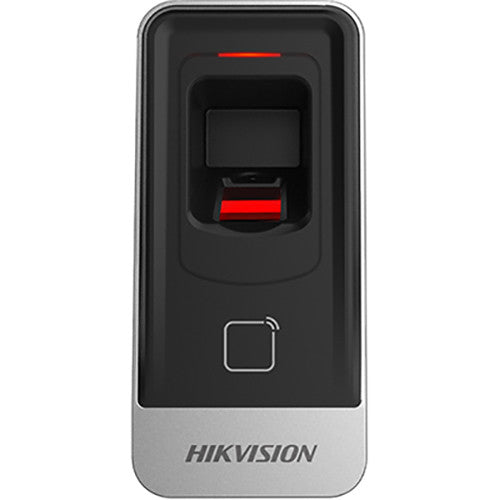

Hikvision DS-K1201MF Biometric Fingerprint Reader

Model: DS-K1201MFN

Who This Is For

When credential security and fast throughput at a controlled entry point is the priority, the Hikvision DS-K1201MF Biometric Fingerprint Reader is built for exactly that scenario. This reader suits installers commissioning access control systems for commercial offices, warehouses, server rooms, schools, and multi-tenant facilities where PIN-only or card-only authentication is no longer sufficient. It supports three authentication modes - fingerprint alone, card alone, or card combined with fingerprint - giving site managers the flexibility to set different security tiers across the same facility. With a 5,000-fingerprint capacity, an optical module rated at FAR ≤0.001%, and an IP65-rated housing that operates from -40°C to +70°C, this reader is suited to both indoor reception desks and exposed outdoor entry points where reliable enrolment and fast verification are required around the clock.

What This Reader Actually Does

Who Buys This Model

• Commercial Office Fit-Outs: IT managers and security integrators specifying server room or data centre entry where dual-factor card-plus-fingerprint authentication is required to meet internal security policy or audit requirements.
• Industrial and Warehouse Sites: Facilities managers dealing with high staff turnover who need biometric enrolment to eliminate shared PIN or transferred card risks at shift change entry points - particularly where the 5,000-fingerprint capacity supports large workforces.
• Schools and Education Campuses: Installers commissioning staff-only zones within schools where visitor card access needs to be layered with fingerprint verification to prevent tailgating through high-traffic corridors.
• Healthcare and Aged Care Facilities: Security coordinators requiring reliable, low-error biometric access (FAR ≤0.001%) for medication rooms or restricted wings, where a false acceptance event carries a direct duty-of-care consequence.
• Integrators Building Hikvision Access Systems: Technicians standardising on Hikvision RS-485 access control ecosystems who need a biometric reader that integrates cleanly with compatible access control panels without additional converters.

Honest Assessment

The DS-K1201MF does the core job of a standalone biometric reader well. The optical module is fast - sub-1-second verification is sufficient for normal pedestrian throughput - and the FAR of ≤0.001% is a credible figure for environments where access errors carry real consequence. IP65 and the -40°C to +70°C temperature range are genuine differentiators that let this reader go outdoors without additional housing. The encrypted template storage rather than raw image storage is also a practical advantage when client data privacy is a conversation you need to have. What it will not do: this reader has no built-in network interface. Communication is RS-485 only, which means it requires a compatible access controller or panel in the system architecture - it cannot operate as a standalone IP device or integrate directly with cloud-based access platforms without additional hardware. If a TCP/IP networked reader is needed, a different product type will be more appropriate. Available through Security Australia, this reader suits traditional wired access control installations rather than modern IP-first deployments.

Before You Buy

Quick Fit Check

• Good match if: You are installing into an existing RS-485 access control system and need a biometric reader rated for outdoor or harsh-environment mounting - the IP65 housing and -40°C to +70°C operating range remove the need for a separate weatherproof enclosure.
• Good match if: The site requires dual-factor authentication where a card alone is insufficient - the card-plus-fingerprint mode means a lost or stolen Mifare card cannot be used to gain access without the registered user's fingerprint.
• You may need a different model if: Your access control design is IP-network based and requires readers to communicate directly over TCP/IP without an RS-485 panel - a networked biometric reader type will be more appropriate for that architecture.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your access control system uses RS-485 architecture and you need a biometric reader that handles outdoor exposure without a separate enclosure - the IP65 rating and extreme operating temperature range make this a practical choice where a card-only reader would fall short.
• You may need a different model if: Your system design requires TCP/IP network-connected readers that integrate directly with software over Ethernet - an IP-based biometric reader type will suit that architecture far better than this RS-485 device.
• Pairs well with: A compatible RS-485 access control panel or controller that supports Wiegand or RS-485 reader input, along with an electromagnetic or electric strike lock and a separate 12VDC power supply.

Common Questions

1. Does this reader work without an access control panel - can it operate as a standalone unit?

   No. The DS-K1201MF communicates via RS-485 only and requires a compatible access control panel or controller to process authentication decisions and trigger a door lock relay. It does not have a built-in lock relay output or standalone operating mode, so it must be wired into a broader access control system to function.

2. Will this reader work outdoors without a protective housing?

   Yes, for most outdoor applications. The DS-K1201MF carries an IP65 rating, which protects against dust ingress and direct water jets. Combined with its -40°C to +70°C operating range, it can be surface-mounted at covered external entry points without an additional weatherproof enclosure. It is not rated for full submersion, so avoid installations in areas prone to pooling water at the mounting surface.

3. What does the False Accept Rate of ≤0.001% mean in practice?

   It means fewer than 1 in 100,000 fingerprint comparisons should result in an unauthorised user being incorrectly granted access. In a facility processing 200 authentications per day, a FAR of ≤0.001% statistically equates to less than 1 false acceptance every 500 days. This is a meaningful figure for security-sensitive environments, though it is not a guarantee - enrolment quality and fingerprint condition affect real-world performance.

4. How does the 1:1 versus 1:N comparison mode work, and when should each be used?

   In 1:1 mode, the user presents a card first, which identifies which stored template to compare against - the fingerprint is then verified against that single record in under 1 second. In 1:N mode, the user presents only a fingerprint and the device searches the full stored database to find a match - verified against up to 3,000 records in ≤1.5 seconds. Use 1:1 mode where card plus fingerprint dual-factor is required, and 1:N mode where card-free fingerprint-only access is the intended workflow.

5. Does this reader store fingerprint images that could be extracted if the device is compromised?

   No. The DS-K1201MF stores an encrypted mathematical template derived from the fingerprint, not a fingerprint image. If the device were physically removed and the storage accessed, there is no raw biometric image to reconstruct. This is a relevant distinction for organisations subject to Australian Privacy Act obligations around biometric data handling. The tamper alarm also alerts the access control panel if the reader is forcibly removed from its mounting surface.

6. What card technology does this reader support?

   Mifare only. The DS-K1201MF uses a Mifare reading module with a read range of ≤50mm. It does not support HID Prox, EM4100 125kHz proximity cards, or DESFire. If your site uses a different card standard, confirm compatibility with your access control panel or consider whether a different reader type is required. Cards issued through Security Australia compatible systems should be verified as Mifare format before ordering this reader.

7. Does the reader require PoE or can it run from a standard 12V power supply?

   No PoE. The DS-K1201MF requires a dedicated 12VDC power supply - it has no Ethernet port and no PoE capability. Power must be run separately from your access control panel power output or a local 12VDC PSU near the reader location. Factor this into your cable run planning, particularly for readers installed at distances from the main panel.

Cabling Considerations

• Cable Type: Shielded twisted pair (STP) recommended for RS-485 runs, particularly in industrial environments. Minimum 0.5mm2 conductor for the 12VDC power feed; calculate voltage drop over longer runs and upsize conductor if necessary.
• Max Cable Run: RS-485 supports runs up to approximately 1,200m at this baud rate, though real-world performance in electrically noisy environments will vary. Keep RS-485 data cabling away from 240V mains and motor control conduit.
• PoE Notes: Not applicable - this device requires 12VDC power only. There is no Ethernet or PoE interface.
• Wiring Tips: Terminate the RS-485 bus with a 120-ohm resistor at each end of the cable run if the reader is the last device on the bus. The built-in optical coupling isolation provides noise suppression, but maintaining correct bus termination will reduce communication errors over longer runs. Wire the tamper alarm output to the access control panel - leaving it floating defeats its purpose as a physical security indicator.

Product Video Samples

Downloads & Resources

No downloads available for this product.
