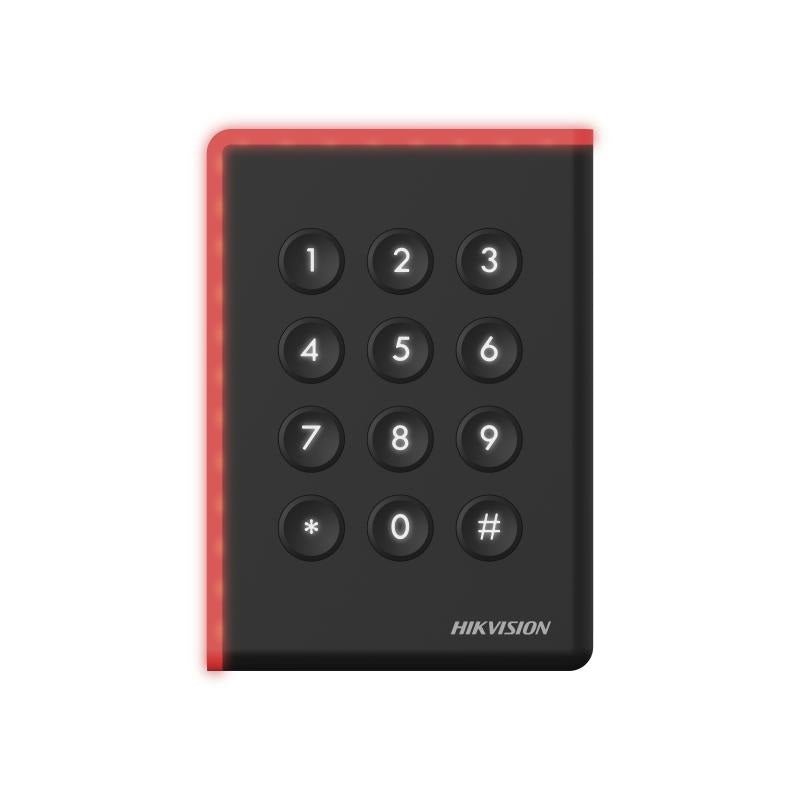

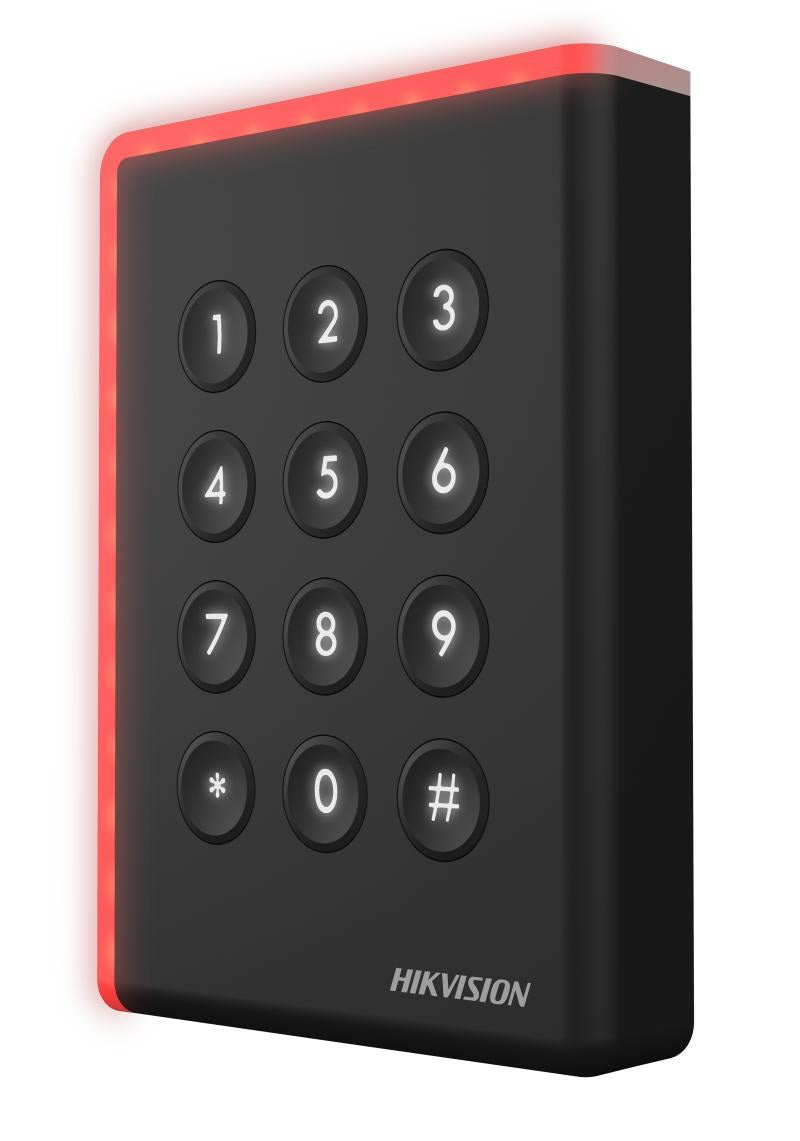

Hikvision DS-K1108AM Pro Series M1 Card Reader with RS-485, Wiegand, OSDP, Tamper-Proof Function & IP65 Weatherproof Design

Model: DS-K1108AM

Who This Is For

For security integrators and facilities managers who need a weatherproof card reader that bridges legacy Wiegand infrastructure with modern OSDP-capable access control panels, the Hikvision DS-K1108AM Pro Series reader covers all three protocol options in a single housing. It suits commercial entry points, car park boom gates, external doors on education and healthcare sites, and any application where a reader needs to survive outdoor conditions without a separate weatherproof enclosure. The IP65 rating handles rain, dust, and coastal environments, while the built-in tamper switch detects physical interference attempts and reports them back to the panel. Whether the panel on site is an older Wiegand-only system or a newer RS-485 or OSDP installation, this reader connects without adapters or protocol converters - making it a practical choice when upgrading readers across a mixed-generation access control estate.

What This Reader Actually Does

Who Buys This Model

• Security Integrators on Mixed-Panel Sites: Installers managing estates where some panels are legacy Wiegand and others are RS-485 or OSDP use the DS-K1108AM as a single reader SKU across the entire project rather than sourcing three different models.
• Facilities Managers Upgrading Credential Systems: Sites moving from older 125 kHz proximity cards to Mifare (M1) specify this reader to accept the new 13.56 MHz card stock while remaining wired to the existing panel via Wiegand during transition.
• Education and Healthcare Projects: Both sectors commonly require IP65 outdoor readers at gate entry points and building perimeters, and both typically operate large Mifare card estates - this reader covers both requirements without a separate weatherproof case.
• Commercial Fit-Out Contractors Specifying to AS Standards: Projects where the security specification calls for tamper-monitored readers at all external doors will use the DS-K1108AM's built-in tamper switch to satisfy that requirement without an aftermarket bracket solution.

Honest Assessment

The DS-K1108AM earns its place on a specification sheet because of protocol flexibility. The combination of Wiegand, RS-485, and OSDP in a single IP65 housing genuinely reduces SKU count on complex installs and simplifies warehousing for integrators running multiple concurrent projects. The tamper function and weatherproof rating are delivered in the base unit with no additional accessories required. Where this reader will not serve you: it reads M1 Mifare credentials only, so sites still operating 125 kHz EM/HID proximity cards will need a different reader model - this is not a multi-technology unit. It is also a standalone reader with no onboard access decision logic; it must be paired with a compatible access control panel. Buyers comparing readers in the Hikvision Pro Series range will find the DS-K1108AM stocked by Security Australia alongside compatible panels and controllers for a complete system build.

Before You Buy

Quick Fit Check

• Good match if: You are installing outdoor readers on a Mifare card estate and need IP65 protection without purchasing a separate weatherproof housing for each door point.
• Good match if: The project spans multiple panel types or involves a staged panel upgrade - the Wiegand, RS-485, and OSDP output options mean this reader can remain in place as the back-end infrastructure changes.
• You may need a different model if: The site runs 125 kHz proximity credentials (EM or HID Prox format) - a multi-technology reader model that supports both 125 kHz and 13.56 MHz would be the more appropriate product type for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The credential estate is Mifare (M1) and the project needs a single reader that can output Wiegand, RS-485, or OSDP to suit different panel types across the same site or across multiple projects.
• You may need a different model if: The site runs 125 kHz proximity cards - a multi-technology reader type that handles both 125 kHz and 13.56 MHz formats is the correct product category for a mixed or transitioning credential environment.
• Pairs well with: A compatible Hikvision Pro Series access control panel or third-party OSDP-capable panel, and a Hikvision DS-K4H250X or similar electric strike or magnetic lock at each controlled door point.

Common Questions

1. Will the DS-K1108AM read our existing HID proximity or EM4100 cards?

   No. The DS-K1108AM reads 13.56 MHz Mifare (M1) credentials only. HID Proximity and EM4100 are 125 kHz formats and will not be detected by this reader. If the site is on 125 kHz cards, a multi-technology reader that supports both frequencies is the correct product type to specify during a credential transition.

2. Does this reader work with any access control panel, or only Hikvision panels?

   It works with panels from any manufacturer that accepts Wiegand, RS-485, or OSDP reader input. The Wiegand and RS-485 outputs are industry-standard interfaces supported by the vast majority of access control panels on the Australian market. OSDP compatibility depends on the specific panel's OSDP version support - confirm with your panel supplier before selecting that output mode.

3. What is OSDP and why does it matter compared to Wiegand?

   OSDP (Open Supervised Device Protocol) is an encrypted, bi-directional protocol that addresses the known interception vulnerability of legacy Wiegand, where card data is transmitted in plain text and can be captured with low-cost equipment. OSDP also allows the panel to monitor reader health in real time. For sites with a security specification that references encrypted reader communication, OSDP is the appropriate output mode to select on the DS-K1108AM.

4. Does the tamper alarm require special wiring or is it handled through the main cable?

   The tamper switch output is carried through the reader's standard connection back to the panel. No separate dedicated tamper wiring is required in most installations. The panel must be configured to monitor and respond to the tamper input - refer to the panel's installation guide for tamper zone setup. Security Australia stocks compatible Hikvision panels that natively recognise and log tamper events from this reader.

5. Is IP65 sufficient for a fully exposed outdoor installation in a coastal environment?

   Yes, for water and dust ingress. IP65 means the unit is fully dust-sealed and protected against water jets from any direction, which covers rain, hose-down cleaning, and coastal spray. It does not indicate corrosion resistance of external surfaces in salt-air environments - in high-salinity coastal locations, inspect the unit periodically and consider the mounting position to minimise direct salt-laden air exposure.

6. Can the RS-485 output support multiple readers on a single bus run back to the panel?

   Yes. RS-485 is a multi-drop bus topology, meaning multiple readers can share a single cable run back to the panel, with each reader addressed individually on the bus. The maximum number of readers per RS-485 bus and the maximum cable distance are determined by the panel specifications - check the panel's RS-485 reader capacity and cable run limits before planning the bus layout.

Cabling Considerations

• Wiegand Wiring: Use shielded twisted pair (STP) data cable. Keep Wiegand runs under 150 m - signal degradation above this distance is common and can cause intermittent read failures. Avoid running Wiegand cable parallel to mains power cabling.
• RS-485 Wiring: Use shielded twisted pair rated for RS-485. Maximum bus length varies by panel specification but typically 1,000 m is achievable at standard baud rates. Terminate the bus with a 120-ohm resistor at each end of the RS-485 run to prevent signal reflection issues.
• OSDP Wiring: OSDP runs over RS-485 physical cabling. Apply the same cable type and termination practices as RS-485. Incorrect termination is the most common cause of OSDP communication faults - verify termination resistor placement before commissioning.
• Power Supply: Confirm the reader's input voltage range against the panel's auxiliary power output or a dedicated reader power supply. Route power and data in the same cable bundle where the cable specification supports it, or use separate runs if the panel requires isolated data wiring.
• Conduit: For external installations, run cabling through IP-rated conduit from the reader entry point to an internal cable tray or cabinet. The reader's IP65 housing protects the reader body - cable entry is the most common point of moisture ingress if not properly conduit-sealed or grommet-fitted.

Downloads & Resources

No downloads available for this product.
