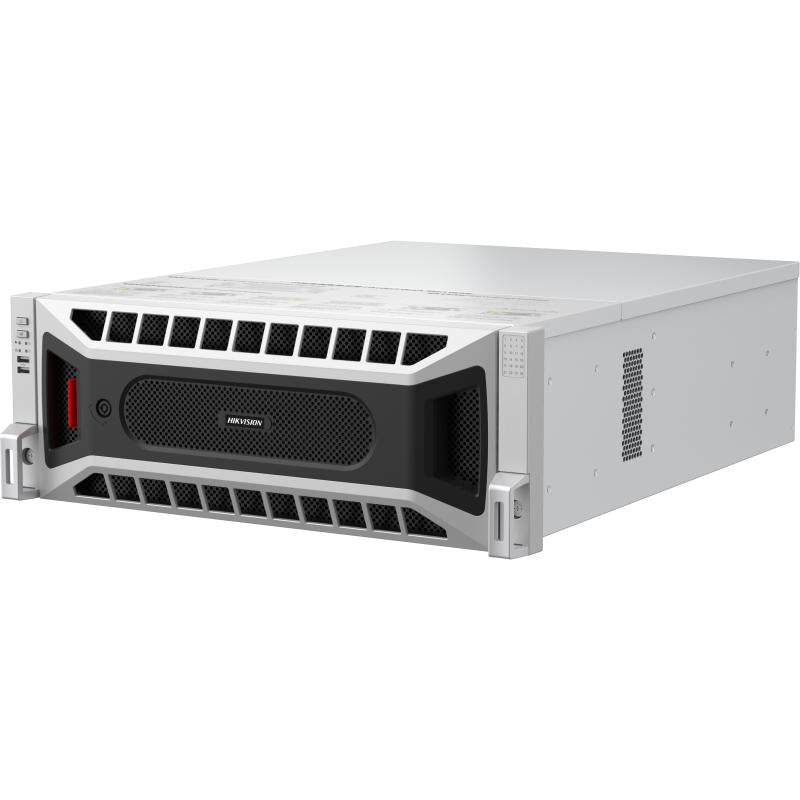

Hikvision DS-96256NXI-S24R 256-Channel 8K NVR with AcuSense 24 Hard Drive Bays

Model: DS-96256NXI-S24R

Who This Is For

When managing a large-scale surveillance network across a multi-building campus, transport hub, or enterprise facility is the priority, the Hikvision DS-96256NXI-S24R is built for exactly that scale. Supporting up to 256 channels and 24 hard drive bays, this NVR is specified by integrators and project engineers who need a single recording platform capable of handling high-channel-count deployments without stacking multiple mid-tier units. The 8K video output means control room operators work with sharp display clarity when reviewing footage or monitoring live views across large-format screens. AcuSense AI filtering reduces nuisance alerts across a system of this size, which becomes critical when managing hundreds of cameras simultaneously. This is not a unit for small sites - it is designed for operations where channel density, storage depth, and AI-driven alarm management are central to the installation brief.

What This NVR Actually Does

Who Buys This Model

• Security Integrators on Large Contracts: Installers awarded campus-wide, transport, or government contracts who need a single 256-channel recording platform to consolidate an entire camera network without stacking multiple mid-range NVRs.
• Facility Managers at Multi-Building Sites: Operations teams at hospitals, universities, or logistics campuses specifying a centralised recording system that can accommodate current camera counts and leave room for future expansion within the same unit.
• Control Room Engineers: Technical teams designing purpose-built monitoring rooms who require 8K display output to support high-resolution video walls or large-format monitors used for live monitoring across a high-channel system.
• Compliance-Driven Operators: Organisations in transport, finance, or critical infrastructure where long-term footage retention is mandatory, and 24 HDD bays provide the on-site storage depth to meet those retention obligations.

Honest Assessment

The DS-96256NXI-S24R does what very few NVR platforms can - it consolidates 256 IP camera channels and 24 hard drive bays into a single rack unit, with AcuSense AI filtering active across the entire system. For large-scale deployments where managing multiple separate NVRs creates operational overhead, this kind of channel density in one platform is a genuine engineering advantage. The 8K output is a practical benefit for control rooms rather than a marketing figure, and the storage bay count gives integrators meaningful flexibility when scoping retention periods for compliance requirements. Where this unit is not the right fit: smaller sites running fewer than 32 channels will find the capacity vastly exceeds their needs and the hardware cost difficult to justify. It also requires a structured IT infrastructure environment, rack mounting, and qualified installation - it is not a plug-and-play unit. Security Australia stocks this model for integrators and enterprise buyers with the technical scope to deploy it correctly.

Before You Buy

Quick Fit Check

• Good match if: You are deploying 64 or more cameras across a single site or connected campus and need all channels recorded, managed, and AI-filtered through one platform with room to grow to 256 cameras.
• Good match if: Your project includes a control room with large-format displays or a video wall, and 8K output from the NVR is a specified requirement for the monitoring environment.
• You may need a different model if: Your site runs fewer than 32 cameras - a mid-range NVR with 32 or 64 channels will cover your current needs and expansion headroom at a more appropriate price point. Browse the NVR range at Security Australia to compare channel options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your deployment involves 64 or more cameras and you need a single platform capable of scaling to 256 channels with 24 HDD bays for deep on-site storage and AcuSense AI filtering across the full channel count.
• You may need a different model if: Your site runs fewer than 64 cameras - a 64-channel or 128-channel NVR will cover your needs and future expansion without the hardware cost or rack footprint of a 256-channel enterprise unit. The Hikvision NVR range at Security Australia includes multiple channel configurations to match your scale.
• Pairs well with: High-resolution AcuSense-compatible IP cameras (4MP, 6MP, or 8MP), managed PoE switches with sufficient uplink capacity, and surveillance-rated high-capacity SATA hard drives matched to a storage retention calculation for your channel count and recording schedule.

Common Questions

1. Does this NVR support all 256 channels with AcuSense AI active simultaneously?

   Yes. The DS-96256NXI-S24R is designed to run AcuSense human and vehicle classification across its full 256-channel capacity. This matters in large deployments because some NVR platforms only process AI on a subset of channels - understanding your unit's AI channel capacity before installation avoids gaps in intelligent alert coverage across your camera network.

2. How much storage can this NVR hold with 24 hard drive bays?

   Total capacity depends on the drive size you install in each of the 24 bays. With high-capacity surveillance-rated drives, the total raw storage potential is substantial - however, the usable retention period depends on your camera resolution, frame rate, compression standard (H.265+ is strongly recommended at this scale to manage bitrate), and whether you record continuously or on motion. Run a storage calculator using your specific camera specs before purchasing drives.

3. Will this NVR work with non-Hikvision IP cameras?

   Partially. The DS-96256NXI-S24R supports ONVIF-compatible third-party cameras for basic recording, but AcuSense AI features are only active on Hikvision cameras that support those functions. If your deployment includes third-party cameras, those channels will record without AI classification applied, which affects alert management across a large system.

4. What display resolution does this NVR output to monitors?

   The DS-96256NXI-S24R supports 8K video output. This is relevant in control room environments using high-resolution monitors or multi-display setups where operators need to view multiple camera feeds simultaneously at high clarity. Standard 4K or 1080p monitors will also work - the 8K output is a ceiling specification, not a minimum requirement.

5. Does this NVR require professional installation?

   Yes. The DS-96256NXI-S24R is a rack-mounted enterprise platform that requires structured IT infrastructure, network planning, and configuration by a qualified installer or integrator. It is not a self-install unit. Camera channel assignment, storage configuration, AI rule setup, and network segmentation all need to be completed by someone with enterprise NVR experience to function correctly at this scale.

6. What compression formats does the DS-96256NXI-S24R support?

   It supports H.265+, H.265, H.264+, and H.264. H.265+ is the recommended compression standard for a deployment of this size - it reduces bitrate and storage consumption compared to H.264 without meaningful loss in image quality, which has a significant practical impact when you are recording 256 channels simultaneously and calculating drive capacity across 24 bays.

7. Can this NVR be integrated into an existing enterprise network infrastructure?

   Yes. The DS-96256NXI-S24R is designed for integration into managed network environments. It supports standard IP network connectivity and is compatible with VLAN segmentation, managed switch infrastructure, and centralised management platforms. For deployments where the NVR sits within a broader IT environment, confirm network bandwidth capacity and routing configuration with your network team before commissioning - aggregated camera stream bandwidth at 256 channels is significant and needs to be planned into your network architecture.
