SaleFree Shipping

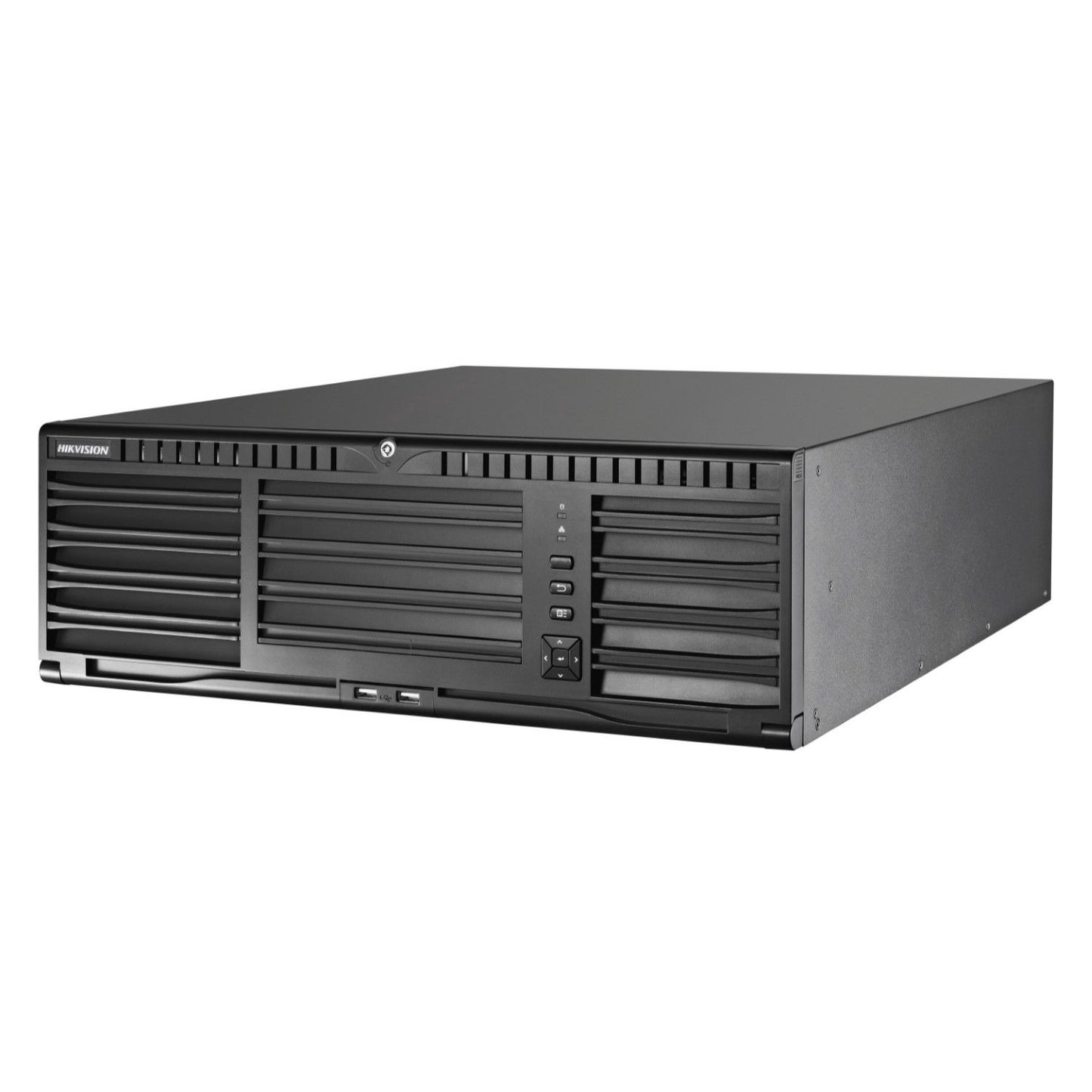

Hikvision DS-96128-i24/H 128 Channel NVR, 576Mbps, RAID, 24 Bay, 3U, 4 x NIC, Dual PSU, NO HDD
$12,351.76 AUD
$11,685.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
Hikvision DS-96000NI-I24/H V4.1.70 NVR
The DS-96000NI-I24/H is equipped with advanced features like dual gigabit network interfaces for load balancing and failover, ensuring reliable data transmission. The DS-96000NI-I24 Series also integrates with AI-powered functionalities, enhancing video analytics and security operations. Users can manage the system through a user-friendly interface, and it supports remote access for monitoring via mobile devices.
Key Features
- Third-party network cameras supported
- Up to 12MP resolution recording
- Video outputs at up to 4K (4096x2160) resolution
- Supports decoding up to 20 channels at 1080p resolution
- Up to 128/256 IP cameras can be connected with 512M/768M incoming bandwidth
- Up to 24 SATA interfaces
- Supports H.264+, H.264, MPEG4, H.265, MJPEG video formats
- Support redundant power supply to improve system stability
- Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
- Support various VCA detection alarm and VCA search
Code/SKU: DS-96000NI-I24/H
Quick Specs:
- Power consumption (without HDD): ≤ 140W
- Working temperature: 0°C to +50°C (32°F to 122°F)
- Working humidity: 10% to 90%
- Dimensions (W × D × H): 447 × 528 × 172mm (17.6 × 20.8 × 6.8 inches)
- Weight (without HDD): ≤ 23 kg (50.7 lb)
Accessories
Select options before adding this product to cart.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Free shipping
Enjoy free shipping when your order exceeds $100.
Fast dispatch
Orders are dispatched within the next business day.
Best local support in Aus
We back all products with manufacturer warranty support.
Official Australian stock
Genuine products with local warranty support.
Product Overview
The Hikvision DS-96000NI-I24/H Series Network Video Recorder (NVR) is a high-capacity recording solution designed for enterprise-level surveillance systems. It supports up to 256 IP cameras, offering robust scalability for large installations. With its ability to record at up to 12 MP resolution and deliver 4K output, the NVR ensures high-quality video playback. It supports up to 24 SATA hard disks, providing ample storage, and includes hot-swappable RAID configurations for enhanced data protection. Additionally, the NVR is equipped with advanced features like dual gigabit network interfaces for load balancing and failover, ensuring reliable data transmission. The DS-96000NI-I24 Series also integrates with AI-powered functionalities, enhancing video analytics and security operations. Users can manage the system through a user-friendly interface, and it supports remote access for monitoring via mobile devices. This NVR is ideal for applications that require long-term video retention and a secure, high-performance recording solution. Overall, the DS-96000NI-I24 Series offers a powerful, flexible platform for managing large-scale surveillance systems.
Features
Professional and Reliable
- New logical and visualized GUI design
- Adopts professional embedded hardware and software
- Pioneering dual-OS design for system reliability
- Supports redundant power supply to enhance system stability
- Supports HDD hot swap with RAID0, RAID1, RAID5, RAID6, and RAID10 storage schemes
- Configurable for either normal or hot spare working mode in N+1 hot spare system
Video Input and Transmission
- Connects up to 128/256 IP cameras
- Supports live view, storage, and playback up to 12 MP resolution
- H.265+ compression reduces storage by up to 75%
- 4 self-adaptive 10M/100M/1000M network interfaces
- Stream over TLS encryption (enhanced SDK service and RTP over HTTPS protocol)
- Compatible with third-party network cameras (e.g., ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek, ZAVIO)
HD Output
- Simultaneous HDMI 1/VGA main output, with HDMI 2 as auxiliary output
- HDMI and VGA1 simultaneous outputs by default; asynchronous outputs configurable
- Video output up to 4K (4096×2160) resolution
- Supports decoding up to 20 channels at 1080p resolution
HD Storage
- 24 SATA interfaces and 1 eSATA interface for HDD connection
- 10 TB capacity for each HDD
- HDD health monitoring
- Supports HDD quota and group modes, assigning different capacities to different channels
- Normal/Important/Custom video playback
Various Applications
- Centralized management of IP cameras, including configuration, import/export, real-time info display, two-way audio, and upgrades
- Connectable to Hikvision smart IP cameras for recording, playback, and backup of VCA alarms
- VCA detection alarm supported
- VCA search for facial detection, behavior analysis, people counting, and heat map
- One-key recording feature
- Instant playback for assigned channel during multi-channel display mode
- Smart search and playback for selected video areas
Technical Specifications
| Video & Audio Input | ||
|---|---|---|
| IP video input | 128-ch | 256-ch |
| Incoming/outgoing bandwidth | 576 Mbps/512 Mbps | 768 Mbps/768 Mbps |
| Incoming/outgoing bandwidth (RAID mode) | 576 Mbps/512 Mbps | 768 Mbps/768 Mbps |
| TLS outgoing bandwidth | 128 Mbps, or 64 Mbps (when RAID is enabled) | |
| Protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO | |
| Video & Audio Output | ||
| HDMI output | Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | |
| VGA output | 1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | |
| LCD output (optional) | One 7 inch LCD | |
| Audio output | 1-ch. RCA (2.0 Vp-p, 1 KΩ) | |
| Video & Audio Decoding | ||
| Decoding format | H.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision IP camera only) | |
| Video resolution | 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Synchronous playback | Up to 16 channels | |
| Capability | 3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps) | |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Hikvision DS-96000NI-I24/H V4.1.70 NVR
The DS-96000NI-I24/H is equipped with advanced features like dual gigabit network interfaces for load balancing and failover, ensuring reliable data transmission. The DS-96000NI-I24 Series also integrates with AI-powered functionalities, enhancing video analytics and security operations. Users can manage the system through a user-friendly interface, and it supports remote access for monitoring via mobile devices.
Key Features
- Third-party network cameras supported
- Up to 12MP resolution recording
- Video outputs at up to 4K (4096x2160) resolution
- Supports decoding up to 20 channels at 1080p resolution
- Up to 128/256 IP cameras can be connected with 512M/768M incoming bandwidth
- Up to 24 SATA interfaces
- Supports H.264+, H.264, MPEG4, H.265, MJPEG video formats
- Support redundant power supply to improve system stability
- Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
- Support various VCA detection alarm and VCA search
Code/SKU: DS-96000NI-I24/H
Quick Specs:
- Power consumption (without HDD): ≤ 140W
- Working temperature: 0°C to +50°C (32°F to 122°F)
- Working humidity: 10% to 90%
- Dimensions (W × D × H): 447 × 528 × 172mm (17.6 × 20.8 × 6.8 inches)
- Weight (without HDD): ≤ 23 kg (50.7 lb)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Model | DS-96128NI-I24 | DS-96256NI-I24 |
|---|---|---|
| Video & Audio Input | ||
| IP video input | 128-ch | 256-ch |
| Incoming/outgoing bandwidth | 576 Mbps/512 Mbps | 768 Mbps/768 Mbps |
| Incoming/outgoing bandwidth (RAID mode) | 576 Mbps/512 Mbps | 768 Mbps/768 Mbps |
| TLS outgoing bandwidth | 128 Mbps, or 64 Mbps (when RAID is enabled) | |
| Protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO | |
| Video & Audio Output | ||
| HDMI output | Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | |
| VGA output | 1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | |
| LCD output (optional) | One 7 inch LCD | |
| Audio output | 1-ch. RCA (2.0 Vp-p, 1 KΩ) | |
| Video & Audio Decoding | ||
| Decoding format | H.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision IP camera only) | |
| Video resolution | 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Synchronous playback | Up to 16 channels | |
| Capability | 3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps) | |
| HDD | ||
| Interface | 24 SATA interfaces supporting hot-plug | |
| Capacity | Up to 10 TB for each HDD | |
| Storage extension | 1 × eSATA interface, 2 × mini SAS interface (optional) | |
| RAID Type | RAID0, RAID1, RAID5, RAID 6, and RAID10 | |
| Network Management | ||
| Protocol | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS | |
| Network interface | 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
| External Interface | ||
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Serial port | RS-232; RS-485; Keyboard | |
| USB interface | Front Panel: 1 × USB 2.0; Rear Panel: 2 × USB 3.0 | |
| Alarm input/output | 16/8 | |
| Extension board (optional) | One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs. | |
| General | ||
| Power supply | 100 to 240 VAC, 50 to 60Hz, 5 A | |
| Fan | Redundant dual ball bearing fan; Speed adjustable | |
| Consumption (without HDD) | ≤ 140W | |
| Working temperature | 0 °C to + 50 °C (32 °F to 122 °F) | |
| Working humidity | 10% to 90% | |
| Dimension (W × D × H) | 447 × 528 × 172mm (17.6 × 20.8 × 6.8 inch) | |
| Weight (without HDD) | ≤ 23 kg (50.7 lb) | |
