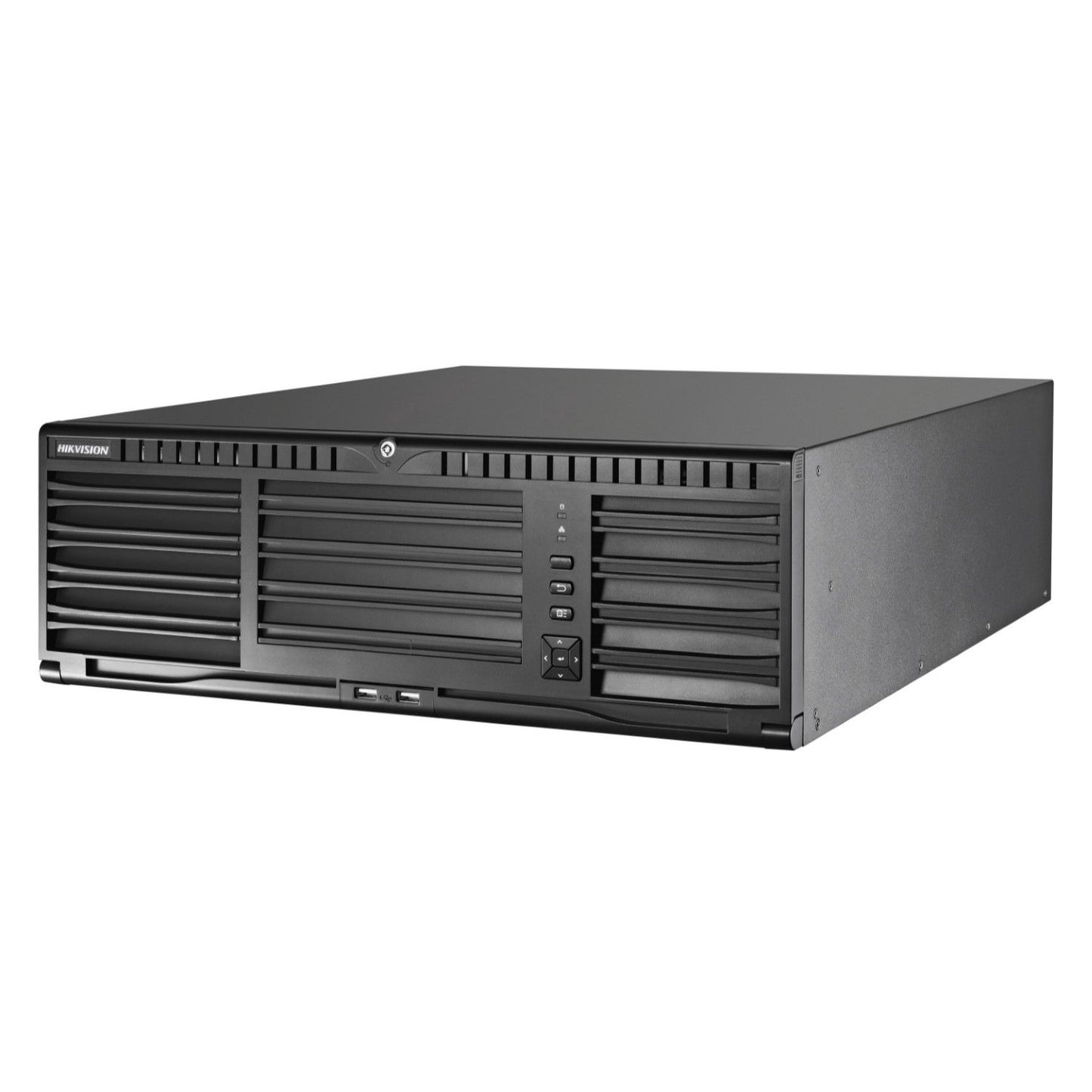

Hikvision DS-96128-i24 128 Channel NVR, 576Mbps, RAID, 24 Bay, 3U, 4 x NIC, Dual PSU, NO HDD

Model: DS-96128-i24

Who This Is For

For integrators and IT security managers who need a single-rack NVR capable of anchoring a large-scale IP camera deployment without splitting recording duties across multiple units. The Hikvision DS-96128-I24 handles up to 128 channels at 576 Mbps incoming bandwidth in a 3U chassis, making it a practical fit for airports, hospitals, university campuses, and multi-building commercial facilities where camera counts are high and downtime is not an option. With 24 hot-swappable SATA bays, RAID 0/1/5/6/10 support, dual redundant power supplies, and 4 independent gigabit NICs, this recorder is built around the assumption that storage failures and network disruptions will eventually occur - and that the system needs to keep running when they do. It ships without HDDs, so storage configuration is handled to suit the site's retention and RAID requirements at commissioning.

What This NVR Actually Does

Who Buys This Model

• Security Integrators on Large Commercial Fitouts: Sites with 80-128 cameras that need a single recording platform rather than multiple mid-range NVRs. The 576 Mbps bandwidth and 24-bay storage capacity consolidate what would otherwise require 3-4 smaller recorders.
• Hospitals and Healthcare Facilities: Environments where recording continuity is non-negotiable. The dual PSU and hot-swap RAID configuration means a PSU fault or single drive failure does not interrupt recording across patient areas, car parks, and restricted zones.
• University and Campus Security Teams: Multi-building deployments with varied camera types and resolutions. The 4 NIC configuration allows traffic segmentation across separate campus network segments while feeding a centralised recording point.
• Government and Critical Infrastructure Operators: Sites with mandatory retention periods and audit requirements. RAID 5 or RAID 6 configurations protect against multi-drive failure, and HDD quota management allows per-channel storage allocation for compliance purposes.
• IT Managers Standardising on Hikvision Ecosystems: Facilities already running Hikvision IP cameras who need a head-end recorder that integrates natively with VCA features from connected cameras without requiring third-party middleware.

Honest Assessment

The DS-96128-I24 does the job it is designed for well: consolidating a large IP camera deployment into a single 3U chassis with genuine fault-tolerance built in. The dual PSU, hot-swap RAID, and 4-NIC configuration are not marketing additions - they are the features that separate enterprise-grade recorders from prosumer units at the 32-64 channel tier. H.265+ compression and configurable HDD quota management make long-term storage planning more predictable across high-channel-count sites. Available through Security Australia, this unit ships without HDDs, so storage selection - SATA drive count, capacity, and RAID mode - needs to be scoped before purchase. It is also a 3U rack device requiring proper rack infrastructure; it is not suited to a cabinet shelf or wall-bracket installation. Sites needing fewer than 32 channels, or where rack space is constrained, will find a more appropriately sized recording unit in the mid-range NVR lineup.

Before You Buy

Quick Fit Check

• Good match if: You are deploying 65-128 IP cameras across a single site or interconnected campus and need one recording platform with enough bandwidth headroom (576 Mbps incoming) to handle mixed 4K and high-megapixel streams without frame drop.
• Good match if: Continuous recording uptime is a hard requirement - for example, a hospital, data centre, or government facility - and you need both dual PSU redundancy and hot-swappable RAID storage in the same chassis.
• You may need a different model if: Your camera count is under 32 channels or your budget does not accommodate the enterprise storage and RAID infrastructure this recorder requires - a mid-range 16 to 32-channel NVR will deliver the same core recording function at a more appropriate scale for smaller sites.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single NVR to record 65-128 channels with genuine fault-tolerance - dual PSU, hot-swap RAID, and 4 independent NICs - in a 3U rack chassis. No mid-range NVR offers this combination in the same form factor.
• You may need a different model if: Your site has fewer than 32 cameras - a mid-range 16 to 32-channel NVR will handle your requirements at a fraction of the infrastructure cost and without needing full rack-mount installation.
• Pairs well with: Enterprise-grade Hikvision IP cameras (4K, 12MP, or VCA-enabled models), a managed gigabit PoE switch capable of link aggregation, and surveillance-rated SATA HDDs sized for your required RAID mode and retention period.

Common Questions

1. Does this NVR come with hard drives installed?

   No. The DS-96128-I24 ships without any HDDs. All 24 SATA bays are empty at delivery. You will need to select and purchase surveillance-grade SATA hard drives separately - the unit supports drives up to 10TB per bay, giving a raw capacity ceiling of 240TB. Factor in your chosen RAID configuration when calculating actual usable storage.

2. Will this NVR keep recording if a hard drive fails?

   Yes, provided you are running a RAID mode with redundancy. RAID 5 tolerates 1 simultaneous drive failure, and RAID 6 tolerates 2. The drives are hot-swappable, so a failed disk can be physically removed and replaced without powering down the unit. Recording across all channels continues during the RAID rebuild process.

3. What happens if one of the power supplies fails?

   The second PSU takes over the full electrical load immediately with no interruption to recording or network connectivity. The dual redundant PSU design means a single power supply failure is a maintenance event, not a system outage. The failed PSU can be replaced without shutting the unit down.

4. Does the DS-96128-I24 support 4K camera recording?

   Yes. The recorder supports up to 12MP resolution input and decoding, which covers 4K (8MP) cameras. With 576 Mbps incoming bandwidth across 128 channels, the unit can accommodate a deployment that mixes 4K cameras in key positions with lower-resolution cameras on secondary zones without exceeding the bandwidth ceiling.

5. How do the 4 network interfaces work in practice?

   Each of the 4 NICs is a 10/100/1000M self-adaptive gigabit port that can be configured independently. Common deployment approaches include using 2 NICs in load-balancing bond for camera ingress, 1 NIC for management access, and 1 NIC for outgoing streams to a video management workstation. Your network switch must support link aggregation (802.3ad) if you intend to bond interfaces - confirm this before configuring NIC bonding on site.

6. Will this NVR work with non-Hikvision IP cameras?

   Yes, with limitations. The DS-96128-I24 supports ONVIF-compliant IP cameras from other manufacturers, so basic recording and live view will function. However, advanced VCA features - including intelligent alarm handling from cameras that use Hikvision's onboard analytics - are only fully supported when paired with compatible Hikvision IP cameras. Third-party cameras connected via ONVIF will record, but analytics integration depends on the camera manufacturer's ONVIF profile implementation.

7. What rack space does this unit require?

   The DS-96128-I24 occupies 3U of rack space. It requires a standard 19-inch rack enclosure with adequate depth to accommodate the chassis and cabling at the rear. Ensure your rack has sufficient clearance for hot-swap drive access at the front and adequate airflow around the unit. This is not suitable for wall-mount brackets, shallow network cabinets, or shelf installations. The DS-96128-I24 is part of the Security Australia enterprise NVR range and is designed for data room or dedicated rack enclosure deployment.
