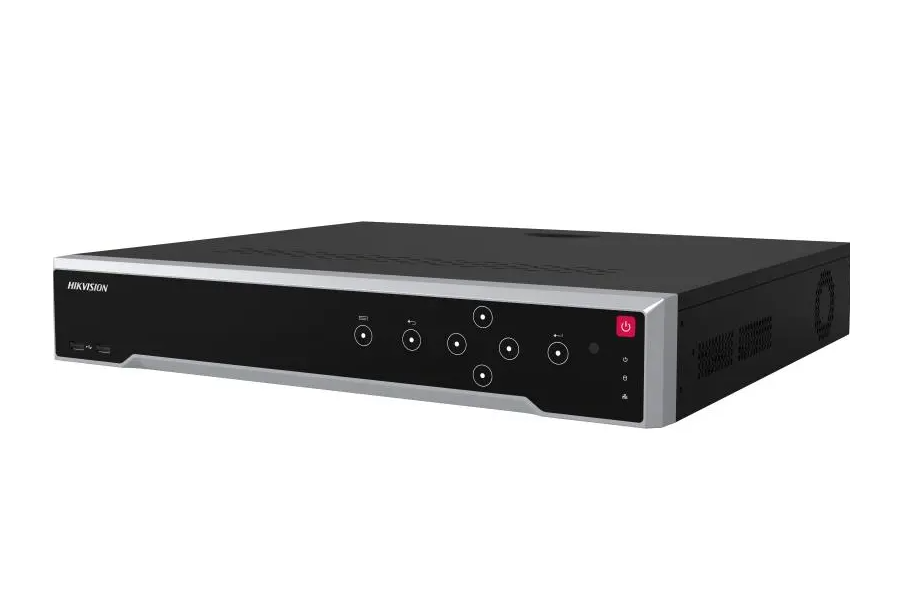

Hikvision DS-7732NI-M4/24P 32ch M-Series 24 PoE NVR, 320Mbps, 8K, 4 Bay, 1.5RU 3TB
Designed for large networks, the DS-7732NI-M4/24P is compatible with the Hik-Connect app, enabling remote monitoring and management from mobile devices. Its dual-stream recording feature helps reduce bandwidth usage while maintaining high-quality footage. With support for up to 128 remote connections and a PoE power budget of 200W, it is an excellent choice for complex surveillance environments. This model is equipped with various auxiliary interfaces, including eSATA, USB ports, and RS-232/RS-485 communication ports, enhancing its flexibility and scalability for diverse applications.
Features
Code/SKU: DS-7732NI-M4/24P
Quick Specs:
| Video and Audio | |
|---|---|
| IP Video Input | 32-ch, Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| PoE | |
| Interface | 24, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 210 W |
| Standard | IEEE 802.3 af/at |
| RAID | |
| RAID Type | N/A |
| Auxiliary Interface | |
| eSATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
| DC 12V | 12 VDC, 1 A power output |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
| Certification | FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-7732NI-M4/24P 32ch M-Series 24 PoE NVR, 320Mbps, 8K, 4 Bay, 1.5RU 3TB
The Hikvision DS-7732NI-M4/24P is a 32-channel 8K Network Video Recorder designed to provide a robust solution for IP surveillance systems. With support for up to 32 IP camera inputs and a maximum incoming bandwidth of 320 Mbps, it delivers smooth streaming and reliability for large-scale surveillance setups. The NVR is equipped with dual HDMI outputs, supporting resolutions up to 8K on one output and 4K on the second, alongside VGA output for added display flexibility.
This NVR features 24 PoE ports, making it easy to power and connect compatible IP cameras directly, eliminating the hassle of separate power supplies. It supports multiple video formats like H.265+, optimizing storage and bandwidth efficiency while maintaining high-quality video output. With recording resolution capabilities up to 32MP, you can expect ultra-high-definition video quality for all your monitoring needs.
Moreover, it supports advanced video content analytics (VCA) functions such as motion detection, line crossing, intrusion detection, and heat mapping, enhancing security monitoring. The system also supports smart features like ANPR (Automatic Number Plate Recognition) and people counting. For added security, TLS encryption is used for secure data transmission. The NVR offers 16-channel synchronous playback enables users to review footage from multiple cameras simultaneously.
Designed for extensive networks, the DS-7732NI-M4/24P is compatible with the Hik-Connect app for remote monitoring and management from mobile devices. With support for up to 128 remote connections and a 200W PoE power budget, this NVR is an excellent choice for complex surveillance environments. Additionally, it includes various auxiliary interfaces, such as eSATA, USB ports, and RS-232/RS-485 communication ports, enhancing its scalability for diverse applications.
Intelligent Video Analytics:
The NVR supports advanced VCA events such as line crossing and intrusion detection, enhancing the system's ability to analyze critical movements and reduce false alarms.
Scalable Remote Access:
Compatible with up to 128 remote connections, enabling flexible monitoring and management across extensive surveillance networks.
Secure Data Transmission:
Utilizes TLS encryption technology to ensure that sensitive video data is transmitted securely, preventing unauthorized access.
User-Friendly Remote Management:
The Hik-Connect app provides intuitive remote monitoring of camera feeds, allowing for real-time security management from your mobile device.
Flexible Configuration Options:
With various output options, including HDMI and VGA, users can customize their viewing setups to suit their unique security requirements.
Durable Design for Extensive Use:
The robust build quality ensures that the NVR can handle the demands of large surveillance installations without compromising performance.
Efficient Dual-Stream Recording:
This feature promotes effective bandwidth management, allowing separate recordings at different resolutions for optimized storage and quality.
Multiple Auxiliary Interfaces:
Several auxiliary interfaces enhance scalability, allowing integration into existing security setups seamlessly for comprehensive monitoring solutions.
Technical Specifications
| Model | DS-7732NI-M4/24P |
| IP Video Input | 32 channels, supporting up to 32 MP resolution *: After enabling ultra HD resolution mode, supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI Outputs | Dual HDMI outputs: 1st supports up to 8K (7680 × 4320) at 30Hz; 2nd supports up to 4K (3840 × 2160) at 60Hz/30Hz. |
| VGA Output | 1920 × 1080 at 60Hz. |
| PoE Ports | 24 independent PoE ports, simplifying the connection and power supply for IP cameras. |
| SATA Interfaces | 4 SATA interfaces for HDD connections, supporting up to 14 TB each. |
| Synchronous Playback | Supports 16-channel synchronous playback. |
| Decoding Capability | Decodes up to 2-ch @ 32 MP (30 fps) or 10-ch @ 8 MP (30 fps). |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz. |
| Dimensions | 1.5RU rack mount, designed for standard equipment racks. |
| Weight | Approx. 3 kg (without HDD). |
