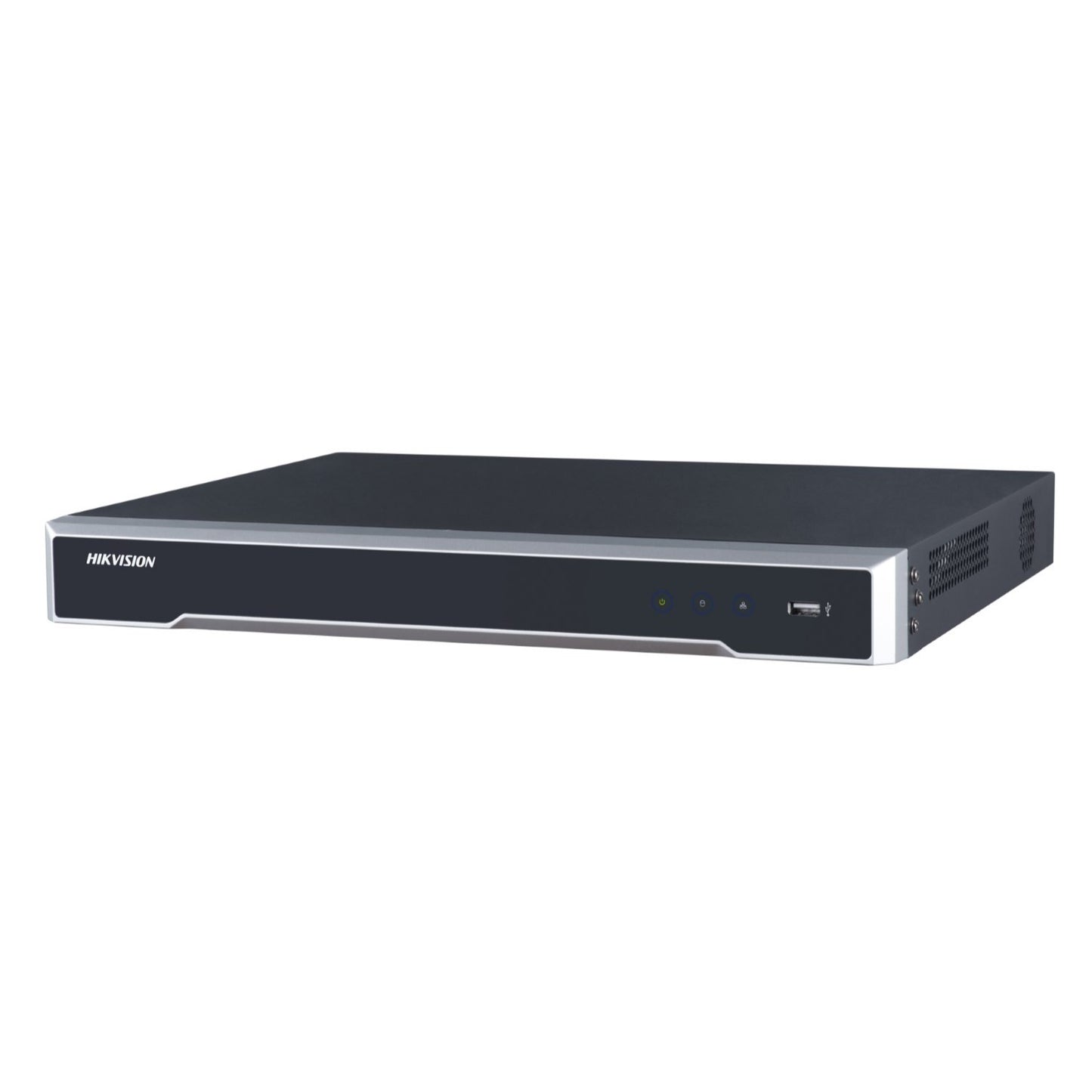

Hikvision DS-7616NI-I2 16 Channel PoE NVR + No Hard Drive
Hikvision's DS-7616NI-I2 is a 16 channel network video recorder with 16 embedded plug and play PoE ports. Part of Hikvision's I Series NVR range, it houses a 4-core processor and supports the H.265+ intelligent compression standard which aims to reduce bandwidth and storage requirements by up to 50%. This NVR combines features such as audio and video decoding technology which ultimately contribute to the I Series range running smoother than previous generations. Also featuring 16 PoE network interfaces for easy plug and play setup and capable of 4K ultra HD video output via HDMI and 1080P via VGA, this NVR supports up to 12MP resolution recording.
Features:
Code/SKU: DS-7616NI-I2
Quick Specs:
| Model | DS-7608NI-I2/8P | DS-7616NI-I2/16P | DS-7632NI-I2/16P |
|---|---|---|---|
| IP video input | 8-ch | 16-ch | 32-ch |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | ||
| Network | |||
| Incoming bandwidth | 80 Mbps | 160 Mbps | 256 Mbps |
| Outgoing bandwidth | 256 Mbps | ||
| Remote connection | 32 | 128 | |
| Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | ||
| CVBS output (Optional) | 1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 | ||
| HDMI output resolution | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| VGA output resolution | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | ||
| Decoding | |||
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 | ||
| Live view/Playback resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | ||
| Synchronous playback | 8-ch | 16-ch | 16-ch |
| Capability | 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) | ||
| Network Management | |||
| Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | ||
| Hard Disk | |||
| SATA | 2 SATA interfaces | ||
| Capacity | Up to 8TB capacity for each HDD | ||
| External Interface | |||
| Network interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | ||
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 | ||
| Alarm in/out | 4/1 | ||
| PoE Interface | |||
| Interface | 8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces | 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces | |
| Power | ≤ 120 W | ≤ 200 W | |
| Supported standard | IEEE 802.3 af/at | ||
| General | |||
| Power supply | 100 to 240 VAC, 50 to 60 Hz | ||
| Power | ≤ 180 W | ≤ 280 W | |
| Consumption (without hard disk) | ≤ 15 W (without enabling PoE) | ||
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) | ||
| Working humidity | 10 to 90% | ||
| Dimensions (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") | ||
| Weight (without hard disk) | ≤ 3 kg (6.6 lb) | ||
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-7616NI-I2 16 Channel PoE NVR + No Hard Drive
Hikvision DS-7616NI-I2 16 Channel PoE NVR + No Hard Drive
The Hikvision DS-7616NI-I2 is a versatile 16-channel PoE NVR designed for comprehensive video surveillance. It supports up to 16 IP cameras, offering robust scalability for diverse security installations.
Providing 4K resolution support, users can experience high-definition video recording and playback. The PoE capability simplifies installation by delivering both power and data through a single Ethernet cable, enhancing efficiency.
The intuitive user interface ensures easy configuration and management. Advanced recording options include continuous, scheduled, and motion-detection recording, allowing users to customize their surveillance needs effectively.
Equipped with expandable storage for multiple HDDs, the device offers ample capacity for high-resolution footage. It supports H.265+ compression, optimizing storage efficiency while maintaining video quality across recordings.
Features:
Functions:
VCA (Video Content Analytics):
Supports multiple VCA events like line crossing and intrusion detection, allowing users to tailor surveillance management for specific events and enhance overall security measures.
Remote Access Capabilities:
Users can monitor live feeds and review footage from anywhere using Hikvision's mobile app or web interface, ensuring continuous oversight over security operations and incident management.
Flexible Storage Options:
With support for up to 2 SATA interfaces and a maximum HDD capacity of **8TB per drive**, users can expand storage tailored to their specific surveillance needs seamlessly.
Compliance with Multiple Compression Formats:
Supports versatile video compression formats like H.265, H.264, and MPEG4, ensuring high-quality recording with optimized storage usage for efficient data management.
Efficient Network Management:
Equipped with Gigabit Ethernet and multiple PoE interfaces, facilitates flexible network configurations while enabling efficient power and data transmission across connected cameras.
Plug and Play Interfaces:
Configured with **16 independent PoE interfaces**, simplifying the setup process and ensuring seamless integration while maintaining high functionality in busy surveillance environments.
Robust Video Output Support:
Allows HDMI output at resolutions up to **4K** and VGA output at **1080P**, providing high-quality monitoring options for critical applications requiring detailed visual assessments.
Technical Specifications
| Model | DS-7616NI-I2 |
| Channel Capacity | Supports up to 16 IP cameras |
| Recording Resolution | Up to 12 megapixels |
| Video Compression | H.265/H.264/H.264+/MPEG4 |
| HDMI Output | Up to 4K (3840 × 2160) |
| VGA Output | Up to 1080P |
| Storage Capacity | Up to 8 TB per HDD (supports 2 SATA interfaces) |
| Network Interfaces | 16 independent PoE interfaces |
| Throughput | 160 Mbps |
| Remote Access | Mobile application and PC client |
| Dual Operating Systems | Yes |
| VCA Support | Multiple video content analytics events supported |
| Hik-Connect | For easy network management and monitoring |
| PoE Features | Long distance (100-300 m) network transmission via PoE |
| Setup | Simplified remote access setup |
