8-ch 1U 8 PoE 8K NVR

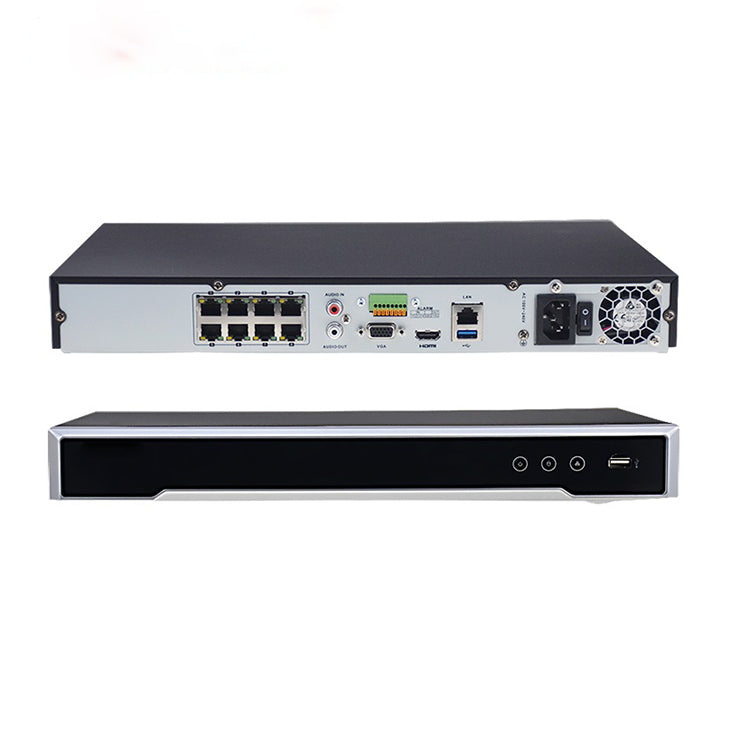

The Hikvision DS-7608NI-M2/8P supports multiple video compression formats, including H.265+ and H.264, which optimize storage usage while maintaining high-quality video output. It is compatible with a wide range of resolutions, from 32 MP down to CIF, ensuring flexibility in camera selection and system design. The unit offers remote connection capability for up to 128 users, along with advanced network protocols such as TCP/IP, DHCP, and IPv6. Audio functionalities include two-way audio and RCA inputs/outputs for integrated communication.
Key Features
Code/SKU: DS-7608NI-M2/8P
Quick Specs:
| Video and Audio | |
|---|---|
| IP Video Input | 8-ch, Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Dual-Stream Recording | Support |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capability | 2-ch@32 MP (30 fps) + 2-ch@8MP（30fps）/ 10-ch@8 MP (30 fps)/ 20-ch@4 MP (30 fps)/ 40-ch@1080p (30 fps) |
| Synchronous Playback | 8-ch |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 120 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| Alarm In/Out | 4/1 |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
| Weight | ≤ 3 kg (without HDD, 2.2 lb.) |
| Certification | FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-7608NI-M2/8P 8ch PoE CCTV NVR, 128Mbps 8 PnP ports, 4K, 2 HDD Bay + 3TB Hard Drive
The Hikvision DS-7608NI-M2/8P is an 8-channel, 1U NVR designed for efficient video management with 8 built-in PoE ports, making it an ideal choice for medium-sized surveillance systems. This NVR supports up to 8K resolution on HDMI output, delivering stunning visual clarity. It can decode up to 8 channels at 8 MP resolution or handle dual-stream recording at different resolutions. With a bandwidth capacity of up to 128 Mbps, it ensures smooth incoming video transmission from up to 8 connected IP cameras. The NVR supports multiple video compression formats, including H.265+ and H.264, which optimize storage usage while maintaining high-quality video output. It is compatible with a wide range of resolutions, from 32 MP down to CIF, ensuring flexibility in camera selection and system design. The unit offers remote connection capability for up to 128 users, along with advanced network protocols such as TCP/IP, DHCP, and IPv6. Audio functionalities include two-way audio and RCA inputs/outputs for integrated communication. Additionally, the DS-7608NI-M2/8P features both HDMI and VGA outputs, supporting independent display outputs. This device is highly scalable and can be used in various applications, from small businesses to advanced security systems.
Features
Professional Reliability and Performance
High-Definition Video Output
Storage and Playback
Smart Features and POS Integration
Network and Ethernet Access
| Video and Audio | |
|---|---|
| IP Video Input | 8-ch, Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Dual-Stream Recording | Support |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capability | 2-ch@32 MP (30 fps) + 2-ch@8MP（30fps）/ 10-ch@8 MP (30 fps)/ 20-ch@4 MP (30 fps)/ 40-ch@1080p (30 fps) |
| Synchronous Playback | 8-ch |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
