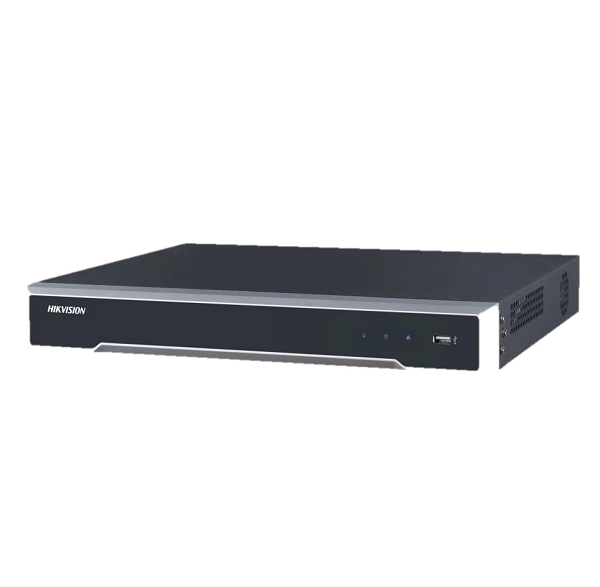

Hikvision DS-7604NI-M1-4P 4ch PoE CCTV NVR 4K 4TB Hard Drive

Model: DS-7604NI-M1-4P

Who This Is For

For small business owners, property managers, and installers who need a clean, capable 4-channel recording solution without overcomplicating the infrastructure. The Hikvision DS-7604NI-M1-4P is built around PoE delivery on all 4 ports, meaning cameras connect directly to the NVR with a single Cat5e or Cat6 cable per camera - no separate PoE switch, no additional power adaptors at each install point. It arrives with a 4TB hard drive pre-installed, supports up to 8 MP decoding per channel, and outputs to an HDMI display at up to 8K resolution during playback. It suits retail shopfronts, small warehouses, medical practices, childcare centres, and residential properties with up to 4 camera positions. If the site is already designed around 4 cameras and the installer wants a straightforward PoE-native recorder with solid Hikvision ecosystem compatibility, this is a practical, well-specified starting point.

What This NVR Actually Does

Who Buys This Model

• Retail and hospitality operators: Small shopfronts, cafes, or bottle shops running 2 to 4 cameras where the PoE integration removes the need for a separate switch and the 4TB pre-installed drive means the system records from day one.
• Residential installers: Homes with up to 4 external or internal camera positions who want 4K recording capability and remote Hik-Connect access without the cost or complexity of a larger NVR chassis.
• Medical and professional practices: Reception areas, car parks, and corridors where discreet recording at up to 8 MP per channel and TLS-encrypted data transmission align with privacy and data security obligations.
• Strata and property managers: Common areas in small apartment blocks - foyer, lift lobby, car park entry - where 4 channels is sufficient coverage and a compact 1U form factor fits a communications cabinet without a dedicated rack.

Honest Assessment

The DS-7604NI-M1-4P does several things well for a compact 4-channel unit. The built-in PoE on every port removes an entire layer of infrastructure on small jobs, the 4TB drive is ready to record out of the box, and the 8 MP per-channel decoding means the recorder keeps pace with current 4K camera models. H.265+ compression genuinely extends usable retention on a single drive, and the 8K HDMI output is a meaningful advantage for sites with large-format displays. TLS encryption and Hik-Connect remote access are standard inclusions at this tier, available through Security Australia. Where this NVR reaches its limits: it is a fixed 4-channel unit with 1 SATA bay, so there is no path to expand camera count or add a second drive later. Sites that may grow beyond 4 cameras - or those needing redundant storage - should look at an 8-channel or multi-bay NVR from the outset rather than replacing this unit in 12 months.

Before You Buy

Quick Fit Check

• Good match if: You are installing exactly 2 to 4 cameras at a small site and want PoE power and recording in a single unit - no switch, no separate power supply, single Cat cable per camera from NVR to camera head.
• Good match if: You need 4K-capable recording with a 4TB drive ready to go and Hik-Connect remote access already built in, without paying for a larger chassis that will never be fully populated.
• You may need a different model if: The site has more than 4 camera positions now, or there is a realistic chance of expanding the system in the next two years - an 8-channel or 16-channel NVR with multiple SATA bays will serve that site better from the outset.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a self-contained 4-channel PoE recording solution with 4K decoding capability, 4TB pre-installed storage, and a compact 1U chassis - and the site will not require more than 4 cameras.
• You may need a different model if: The site has growth potential beyond 4 camera positions, or requires a second hard drive bay for extended retention or redundancy - an 8-channel or higher NVR with multiple SATA ports is the more practical choice in those cases.
• Pairs well with: Hikvision 4K turret or dome cameras using H.265+ compression, installed on Cat5e or Cat6 cabling run directly from the NVR's PoE ports.

Common Questions

1. Does this NVR include PoE on all 4 camera ports?

   Yes. All 4 IP camera ports on the DS-7604NI-M1-4P are PoE-enabled. Each camera receives both data and power over a single Cat5e or Cat6 cable run directly to the NVR. There is no requirement for a separate PoE switch or injectors anywhere in the cabling path.

2. Will this NVR record 4K cameras on all 4 channels simultaneously?

   Yes, within the 40 Mbps bandwidth limit. The NVR decodes up to 4-ch at 8 MP (4K), but the total incoming bandwidth across all channels is capped at 40 Mbps. Most 4K Hikvision cameras configured at standard bitrate settings fall well within this ceiling across 4 channels, but it is worth confirming combined bitrate in the camera web interfaces before commissioning.

3. How long will 4TB of storage last at 4 cameras?

   Retention time depends on resolution, compression format, and scene activity. At 4 x 4 MP cameras using H.265+ in a low-movement environment, 4TB can store 4 to 6 weeks of continuous footage. Switching to H.264 or recording at 8 MP across all channels will reduce retention significantly. Hikvision's storage calculator is a reliable tool for site-specific estimates before specifying the drive size.

4. Can I add a second hard drive later to increase storage?

   No. The DS-7604NI-M1-4P has 1 SATA interface, which means only a single hard drive is supported. If the site requires more storage than the pre-installed 4TB drive provides, you would need to replace the drive with a higher-capacity model (subject to Hikvision's supported HDD compatibility list) rather than adding a second drive. Sites requiring dual bays should consider a larger NVR chassis, available through Security Australia.

5. Does this NVR work with non-Hikvision IP cameras?

   Partially. The NVR supports ONVIF-compatible third-party cameras, but advanced features such as VCA smart events, H.265+ compression, and deep integration with Hik-Connect remote access function fully only with Hikvision cameras. Using third-party cameras will typically limit the system to basic motion detection and standard recording without smart analytics.

6. What does the 8K HDMI output actually mean for a 4-channel NVR?

   The 8K HDMI output describes the maximum resolution the HDMI port can signal to a display - it does not mean the NVR outputs 8K video content. In practice it means the NVR is compatible with high-resolution monitors and large-format displays without a resolution mismatch. During multi-camera live view or recorded footage playback on an 8K screen, the output scales correctly without forcing the display to downgrade its input.

7. Does the remote access work without a static IP address?

   Yes. Hik-Connect uses Hikvision's cloud relay service, which means remote access from the mobile app or web portal works over a standard dynamic IP internet connection. The NVR registers with Hik-Connect using a device serial number, so there is no requirement to configure port forwarding or a static IP at the site - though a stable broadband connection is needed for consistent remote performance.
