Hikvision DS-7316HUHI-K4 TVI4.0 16ch DVR, 16 TVI or up to 18 IPC, 4 HDD Bays, H.265+, 3TB HDD

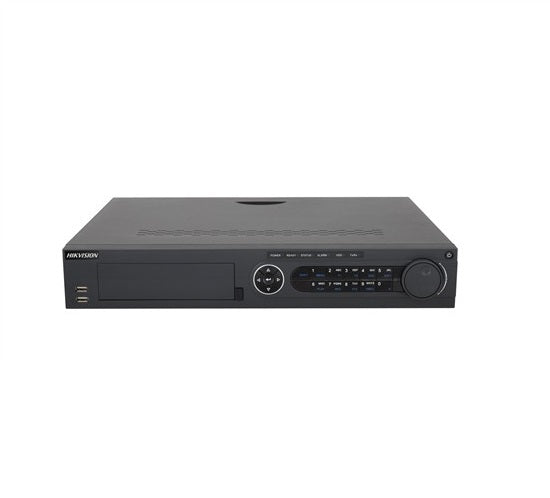

HIK-7316HUHI-K4 16 Channel DVR from Hikvision's TVI4.0 Series

The HIK-7316HUHI-K4 is a 16-channel DVR from Hikvision's TVI4.0 series, designed to support up to 5MP TVI cameras at 12 frames per second over coaxial cable. This DVR is built to offer comprehensive compatibility with various video formats, including standard definition analog, 2MP AHD, 2MP HD-CVI, 5MP HD-TVI, and up to eighteen 6MP IP cameras.

The DVR features advanced video compression technology, utilizing H.265/H.265+ to ensure efficient storage without sacrificing quality. With the capability of providing a 4K UHD video output via HDMI, the HIK-7316HUHI-K4 is ideal for high-resolution video surveillance requirements in diverse applications.

Designed with robust transmission capabilities, it supports up to 800 meters of transmission range over coaxial cable, enabling flexible installation options. The DVR is perfect for users needing reliable performance and high-quality surveillance solutions in various settings.

Key Features:

• Supports video resolutions of up to 5MP for TVI cameras, providing high-definition video quality essential for effective surveillance in various applications across multiple environments.
• H.265/H.265+ intelligent video compression significantly reduces storage requirements while maintaining excellent image quality, enabling longer recording times and efficient bandwidth management for optimal performance.
• 4K UHD video output via HDMI allows for strikingly clear and detailed image displays on compatible monitors, enhancing the viewing experience during live monitoring and playback.
• Offers 16 BNC input interfaces to support multiple TVI cameras, providing flexibility in surveillance configurations and enabling comprehensive coverage for different locations.
• Transmission range of up to 800m over coaxial cable ensures strong signal quality across long distances, making it suitable for various outdoor and large-area installations.
• Supports bi-directional signaling, allowing for efficient control signals to be sent back from cameras, facilitating advanced communication between connected devices for enhanced functionality.
• Compatibility with up to 18 IPC provides added flexibility with camera options, allowing users to expand their surveillance systems while supporting both analog and IP technologies effectively.
• Four HDD bays support substantial storage options, making it easy to add hard drives for increased data retention and longer recording periods suited for extensive surveillance applications.

Functions:

Comprehensive Surveillance Management:
This DVR effectively integrates with various camera types, allowing users to monitor facilities with multiple camera technologies efficiently for effective and secure installations.

Efficient Playback and Recording:
Features advanced recording modes, allowing users to configure recording schedules and playback options to optimize storage use while meeting specific monitoring needs effectively.

Remote Monitoring Capability:
Supports mobile viewing and remote management through compatible applications, allowing users to access real-time video feeds and control the DVR securely from anywhere.

Real-time Alerts and Notifications:
Provides customizable alerts based on motion detection and other events, ensuring users can respond swiftly to security incidents, thus enhancing overall safety measures.

User-Friendly Interface:
The DVR features an intuitive interface for easy navigation and setup, enabling users to configure their monitoring systems efficiently without extensive technical knowledge required.

Seamless System Integration:
Designed for compatibility with existing surveillance setups, this DVR allows for simple upgrades without major overhauls, enhancing existing security infrastructure effortlessly.

Robust Security Measures:
Incorporates advanced security protocols to protect recorded footage, ensuring that data remains secure and confidential, thereby mitigating unauthorized access risks effectively.

Scalable Storage Solutions:
With the capacity to add additional hard drives, users can easily scale their storage needs according to various requirements, ensuring ample recording space for extensive needs.

Technical Specifications
