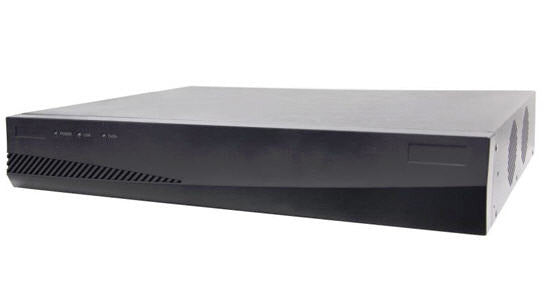

HikVision DS-6316DI-T Decoder 16CH BNC Output

$2,697.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING
Based on the TI DM648 platform, DS-6316D is a multi-purpose video/audio decoder capable of allowing the coded images from HIK DVR/DVS or other encoding devices to be decoded and displayed on the TV wall after transmission via IP network. Specially designed for the allocation and management of the video surveillance system, DS-6316D supports multiple network transmission protocols, and it applies the code downloaded in FLASH, ensuring high stability and reliability of system performance. DS-6316D Video/Audio Decoder adopts highly integrated TI DM648 processing chip which provides powerful decoding capability.

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

HikVision DS-6316DI-T Decoder 16CH BNC Output

$2,697.00 AUD
 per

  Features:

  • Hikvision H.264, standard H.264, MPEG2 and MPEG4 video stream supported
  • Up to 16-ch 720P/32-ch 4CIF video stream decode
  • VGA output at up to 1920×1080P resolution
  • Up to 4-ch VGA and 16-ch CVBS output
  • SADP(IP Finder),UDP, RTP and NTP protocols
  • Video display on TV wall
  • 32 users with multi-user level management
Specifications:
Video/Audio output
Audio output: | 4-ch, RCA connector 16-ch, DB15 connector×2
CVBS Output: | 16-ch
VGA Output: | 4-ch VGA output, resolution: 1920×1080@60/50Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@50/60Hz, 1024×768@60Hz
Video Decoding Standard: | H.264/MPEG4/MPEG2/Private
Video Decoding Channels: | 16-ch at 720P/32-ch at 4CIF/64-ch at CIF resolution
Multi-division Display Mode: | 1/4/9/16
Audio Decoding Standard: | G.722/G.711A/G.711U/MPEG2-L2/ACC
Two-way audio: | 1 line in, 3.5mm connector (2.0 Vp-p, 1 kΩ) 1 line out, 3.5mm connector (2.0 Vp-p, 1 kΩ)
External interface
Network interface: | 1 RJ45 10/100/1000Mbps self-adaptive UTP Ethernet interface
Serial interface: | 1 RS-485, 1 RS-232
Alarm in: | 4
Alarm out: | 4
General
Power supply: | 100~240VAC
Consumption: | ≤50W
Working temperature: | -10°C~+55°C(14°F~131°F)
Working humidity: | 10%~90%
Dimension(W×D×H): | 440(W)× 340(D)× 70mm(H)
Weight(without HDD): | ≤5.2 kg
