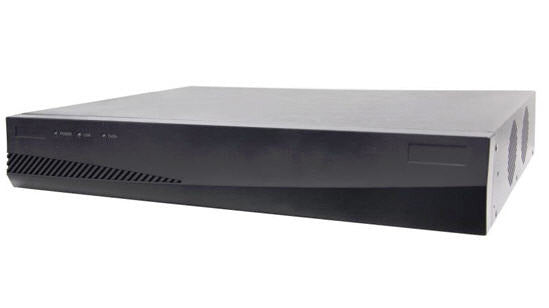

Hikvision DS-6304DI-T Decoder 4CH BNC Output

  • Sku: DS-6304DI-T
  • Vendor: SecurityAustralia
$1,575.00 AUD
Tax included.
Shipping calculated at checkout.
Quick Buying Summary

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

Not sure if this suits your site?

Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.

Product Overview

Based on the TI DM648 platform, DS-630XD is a multi-purpose video/audio decoder capable of allowing the coded images from HIK DVR/DVS or other encoding devices to be decoded and displayed on the TV wall after transmission via IP network. Specially designed for the allocation and management of the video surveillance system, DS-630XD supports multiple network transmission protocols, and it applies the code downloaded in FLASH, ensuring high stability and reliability of system performance. DS-630XD Video/Audio Decoder adopts highly integrated TI DM648 processing chip which provides powerful decoding capability. Features:
  • H.264/MPEG4/MPEG2/Private video stream supported
  • Up to 16-ch 720P/32-ch 4CIF video stream decode
  • SADP(IP Finder),UDP, RTP and NTP protocols
  • Video display on TV wall
  • 32 users with multi-user level management
  • VGA output at up to 1920×1080P resolution
  • Up to 4-ch VGA and 16-ch CVBS output
Specifications:
  • DS-6304DI-T
Video/Audio output
Audio output: 2-ch, RCA connector 4-ch, DB15 connector×1
CVBS Output: 4-ch
VGA Output: 2-ch VGA output, resolution: 1920×1080@60/50Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@50/60Hz, 1024×768@60Hz
Video Decoding Standard: H.264/MPEG4/MPEG2/Private
Video Decoding Channels: 4-ch at 720P 8-ch at 4CIF 16-ch at CIF resolution
Multi-division Display Mode: 1/4/9/16
Audio Decoding Standard: G.722/G.711A/G.711U/MPEG2-L2/ACC
Two-way audio: 1-ch, 3.5 mm connector (2.0 Vp-p, 1 kΩ)
External interface
Network interface: 1; 10/100/1000 Mbps self-adaptive Ethernet interface
Serial interface: 1 RS-232 (DB9), 1 RS-485
Alarm in: 4
Alarm out: 4
General
Power supply: 100~240VAC
Consumption: ≤50W
Working temperature: -10°C~+55°C(14°F~131°F)
Working humidity: 10%~90%
Dimension(W×D×H): 440(W)× 340(D)× 70mm(H)
Weight(without HDD): ≤5.2 kg
